SN74HC14AN Hex Schmitt-Trigger Inverter IC – PDIP-14 – Texas Instruments

The SN74HC14AN from Texas Instruments is a high-performance hex Schmitt-trigger inverter designed for applications requiring clean signal transitions, waveform shaping, and reliable operation with slow or noisy input signals. Each of its six independent inverters features Schmitt-trigger input circuitry, providing superior noise immunity and stable logic switching.

With a wide 2V to 6V supply voltage range, the SN74HC14AN supports both low-voltage and standard CMOS logic systems. It delivers strong ±7.8mA output drive, making it suitable for a variety of digital and mixed-signal applications. Integrated positive and negative clamp diodes help protect inputs from voltage transients, ensuring long-term reliability.

Packaged in a standard PDIP-14 through-hole form factor, this device is easy to prototype and ideal for educational, industrial, and embedded electronic designs requiring robust signal conditioning.

Common applications include:
– Signal debouncing
– Waveform shaping
– Oscillator circuits
– Noise filtering
– Digital interfacing

Key Specifications:

• Manufacturer: Texas Instruments

• Part Number: SN74HC14AN

• Logic Function: Hex Schmitt-trigger inverter

• Supply Voltage: 2V to 6V

• Output Drive: ±7.8mA

• Operating Temperature: –40°C to +85°C

• Features:
  – Schmitt-trigger inputs for enhanced noise immunity
  – Input clamp diodes
  – High-speed CMOS operation

• Package: PDIP-14 (through-hole)

Package Includes:
1 x SN74HC14AN Hex Schmitt-Trigger Inverter IC

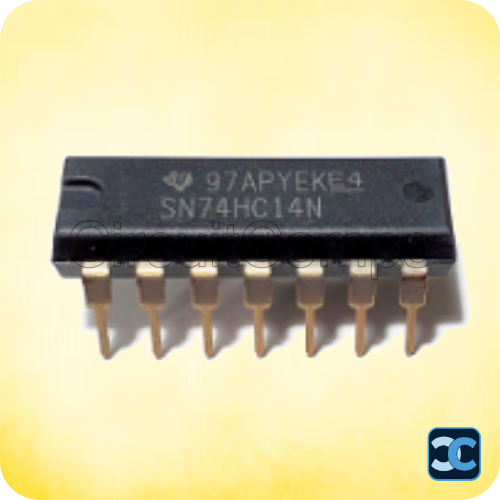

Note: Image is for representation purpose only.
