TYN16Y-600CTF Silicon Controlled Rectifier – 600V, 207A | WeEN Semiconductors

The TYN16Y-600CTF from WeEN Semiconductors is a high-performance SCR (Silicon Controlled Rectifier) designed to handle 600V and up to 207A of surge current, making it ideal for demanding applications like motor control, inrush protection, and capacitive discharge ignition systems.

With a low gate trigger current (10mA) and a compact IITO220 (SOT78D) package, it provides a reliable, efficient solution for both industrial and automotive power control circuits.

✅ Key Features:

• Breakover Voltage: 600V

• Surge Current Handling: Up to 207A

• Gate Trigger Voltage: 0.25V – 1V

• Gate Trigger Current: 10mA

• Package Type: IITO220 (SOT78D), Through-hole

• Wide Operating Temperature: -40°C to +150°C

• Reliable performance under tough environmental conditions

⚙️ Applications:

• Capacitive Discharge Ignition (CDI)

• Crowbar Circuit Protection

• Inrush Current Limiting

• Motor Speed and Power Control

• Voltage Regulation in Industrial Systems

📦 Package Includes:

• 1 × TYN16Y-600CTF SCR (Silicon Controlled Rectifier) by WeEN Semiconductors

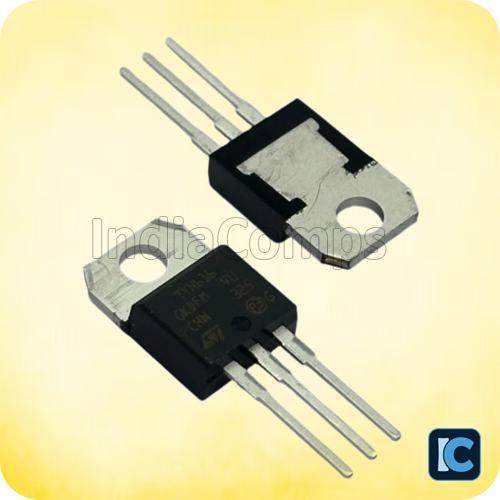

🖼️ Note: All product images are for representation purposes only. Actual product appearance may vary.
