ULN2803AFWG 8-Channel Darlington Transistor Array IC – SOIC-18

The ULN2803AFWG IC is a high-current, high-voltage 8-channel Darlington sink driver, designed for driving a wide range of inductive and resistive loads. Each channel integrates an NPN Darlington pair capable of sinking up to 500mA, making the device highly suitable for relays, solenoids, lamps, motors, LED arrays, and other moderate-power loads.

This IC includes integrated clamp diodes for safe switching of inductive loads and supports logic-level input compatibility with most common logic families. With a minimum sustaining voltage of 50V, the ULN2803AFWG provides reliable switching performance in industrial, automotive, and consumer electronics applications. The compact SOIC-18 (SOL-18) package ensures easy integration into space-constrained PCB layouts.

Features / Specs

• Channels: 8 Darlington sink drivers

• Max output current: 500mA per channel

• Sustaining output voltage: 50V (min)

• Integrated clamp diodes for inductive loads

• Logic input compatible with TTL/CMOS

• Package type: SOIC-18 (SOL-18)

• Lead-free & RoHS compliant

• Ideal for relays, lamps, LEDs, solenoids, and stepper motor control

Package Includes:

1 × ULN2803AFWG IC – 8 Channel Darlington Sink Driver – SOIC-18

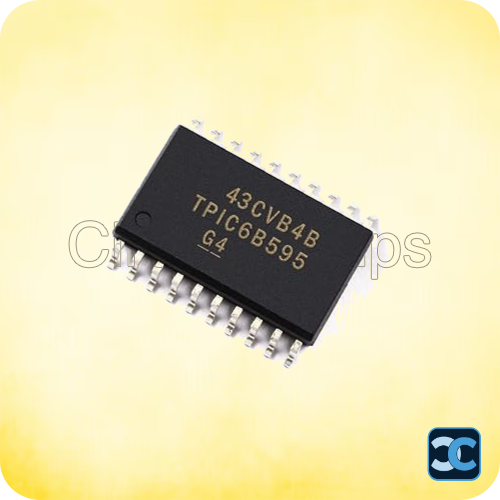

Note: Product images are shown for representation purposes only and may differ from the actual product.
