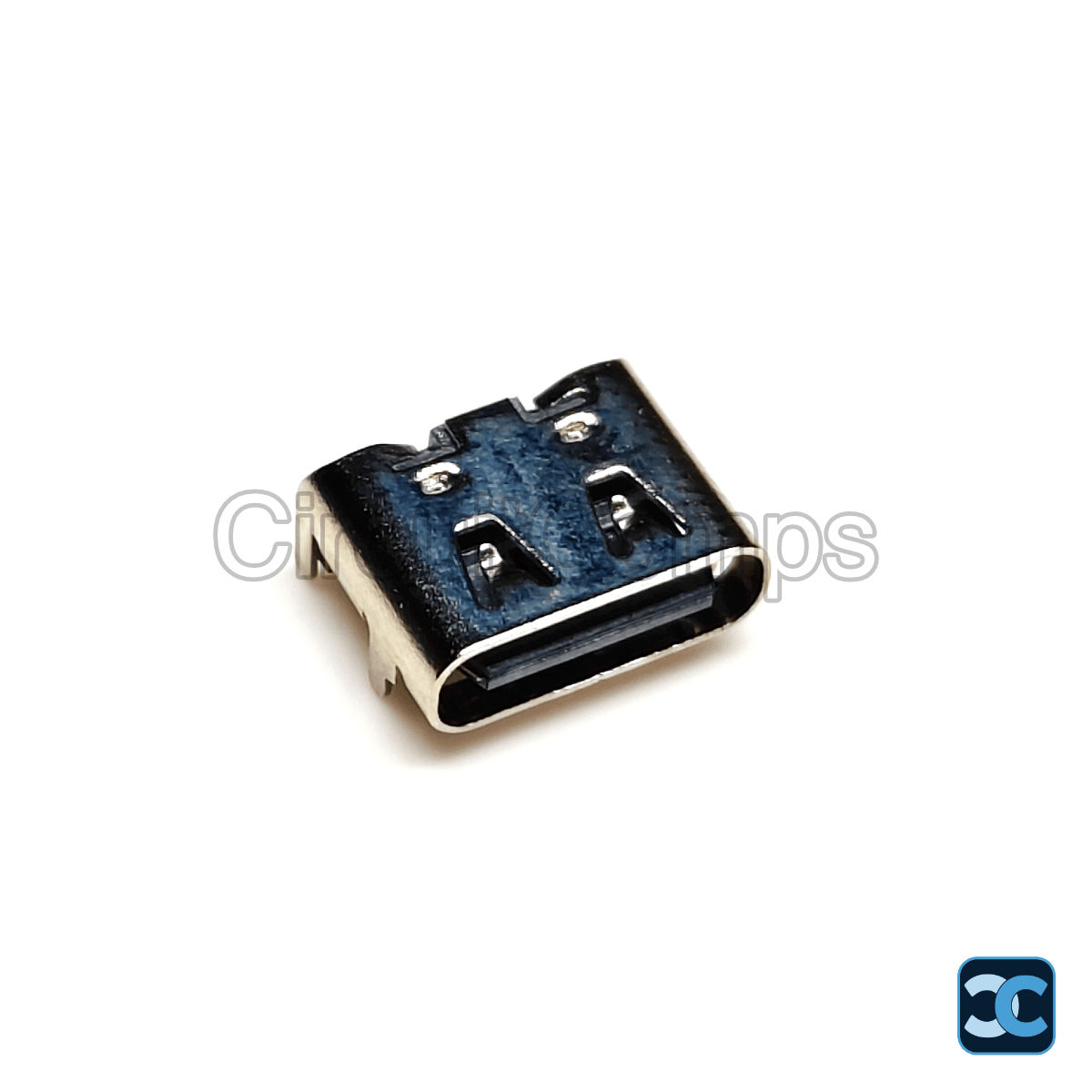

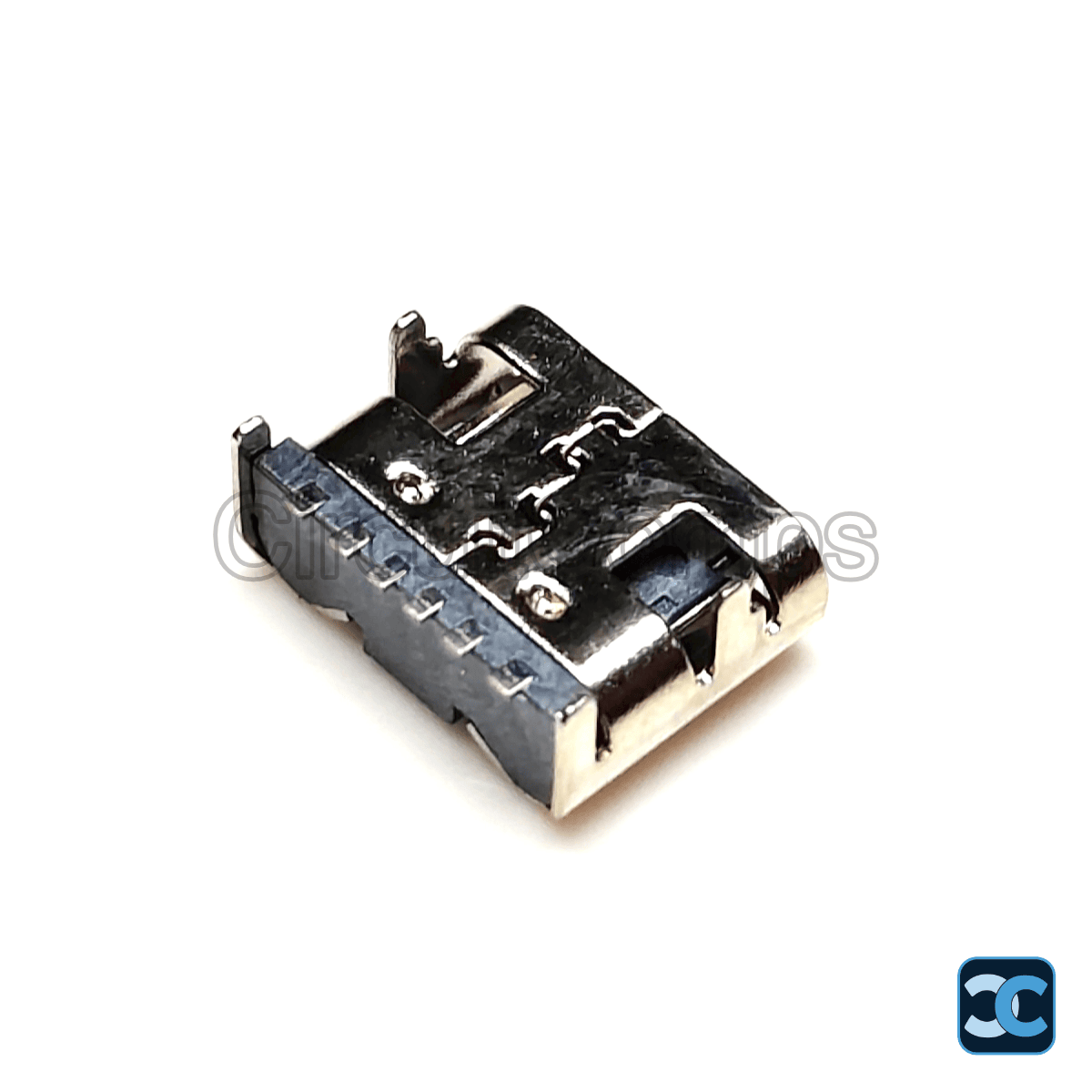

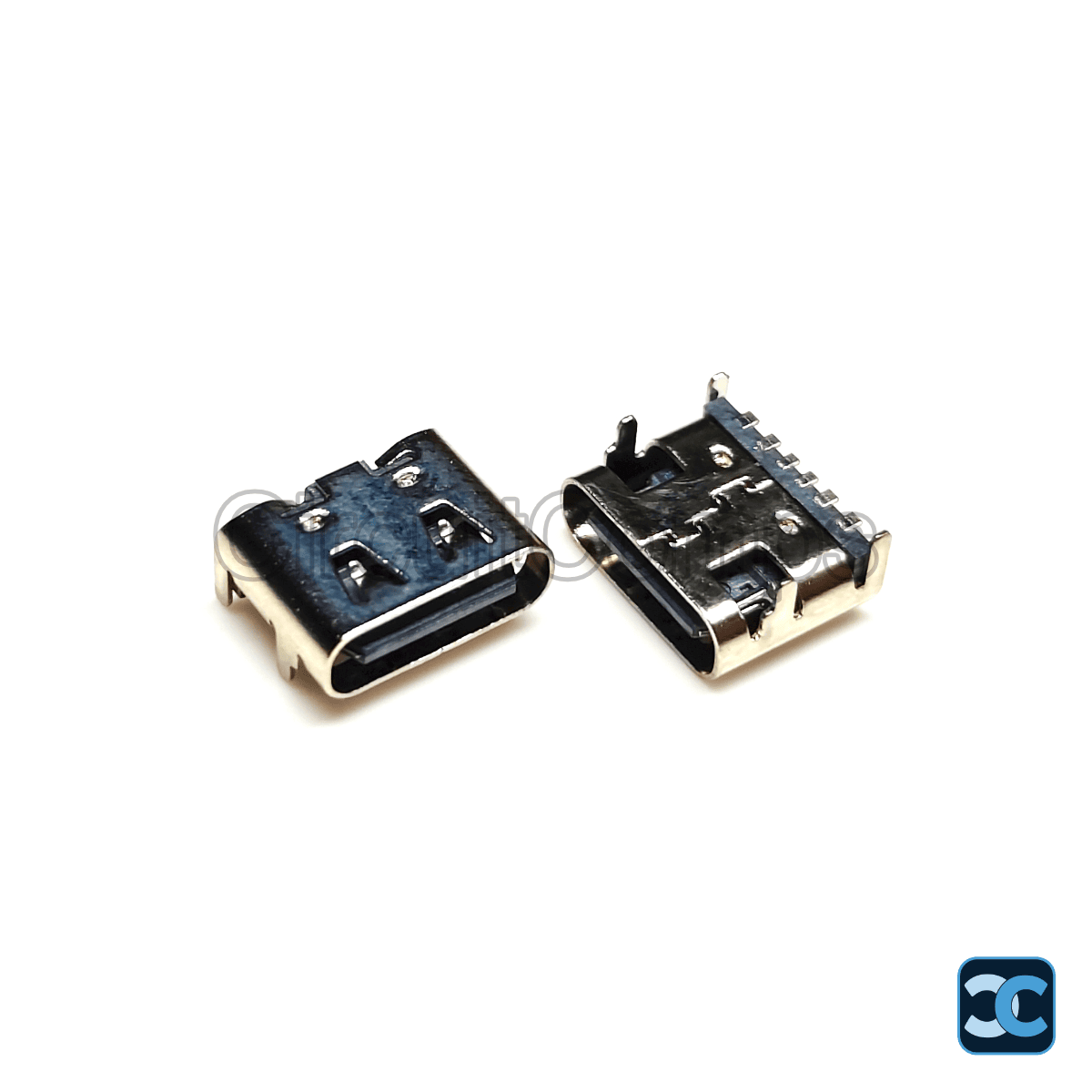

USB 3.1 Type-C Female 6 Pin SMD Reversible Charging Connector

The USB 3.1 Type-C Female 6 Pin SMD Connector is a high-performance USB Type-C receptacle designed for modern electronic devices requiring reliable charging and power connectivity. Its reversible connector design allows effortless cable insertion in either orientation, improving convenience and user experience.

Designed as a compact surface-mount (SMD) component, this connector supports USB 3.1 technology with data transfer speeds of up to 10Gbps and USB Power Delivery capabilities. Rated for up to 20V, supporting 3A with standard USB-C cables and up to 5A with compatible connectors. Constructed with gold-plated copper alloy contacts and high-temperature PBT UL94V-0 insulation for low contact resistance and up to 10,000 insertion cycles.

Key Specifications

• Connector Type: USB Type-C Female
• USB Standard: USB 3.1
• Number of Contacts: 6 Pins
• Mounting Type: Surface Mount (SMD)
• Operating Voltage: 20V (maximum)
• Current Rating: 3A (standard cables) / 5A (compatible connectors)
• Data Transfer Speed: Up to 10 Gbps
• Contact Material: Copper alloy with selective gold plating
• Insulation Material: PBT UL94V-0
• Contact Resistance: 40 mΩ
• Insulation Resistance: 100 MΩ
• Operating Temperature: −40°C to +85°C
• Durability: 10,000 insertion cycles
• Insertion Force: 5–20 N
• Extraction Force: 8–20 N
• Dimensions: 7 × 9 mm
• Approximate Weight: 1 g

Package Includes

• 1 x USB 3.1 Type-C Female 6 Pin SMD Reversible Charging Connector

Note: Image is for representation purpose only.
