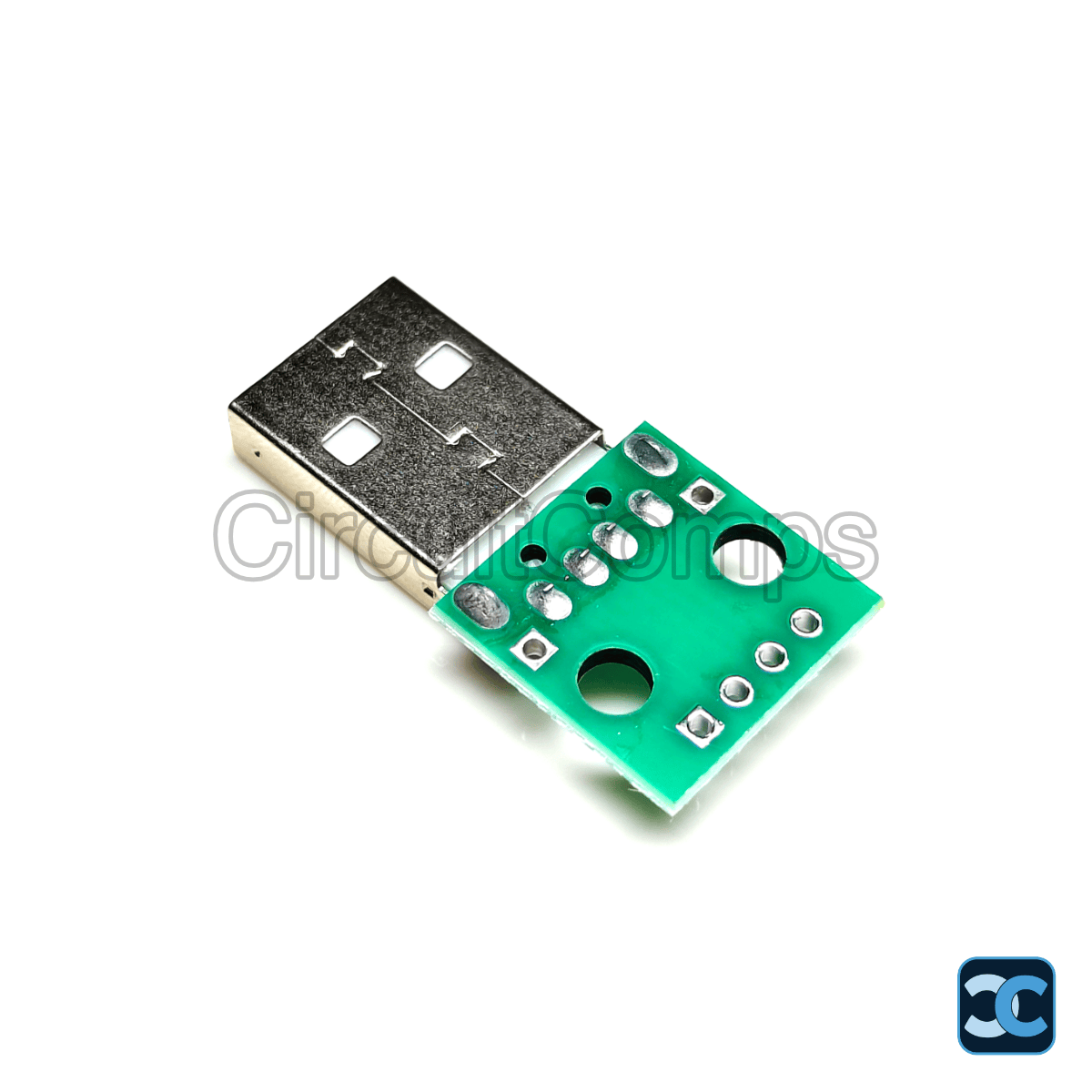

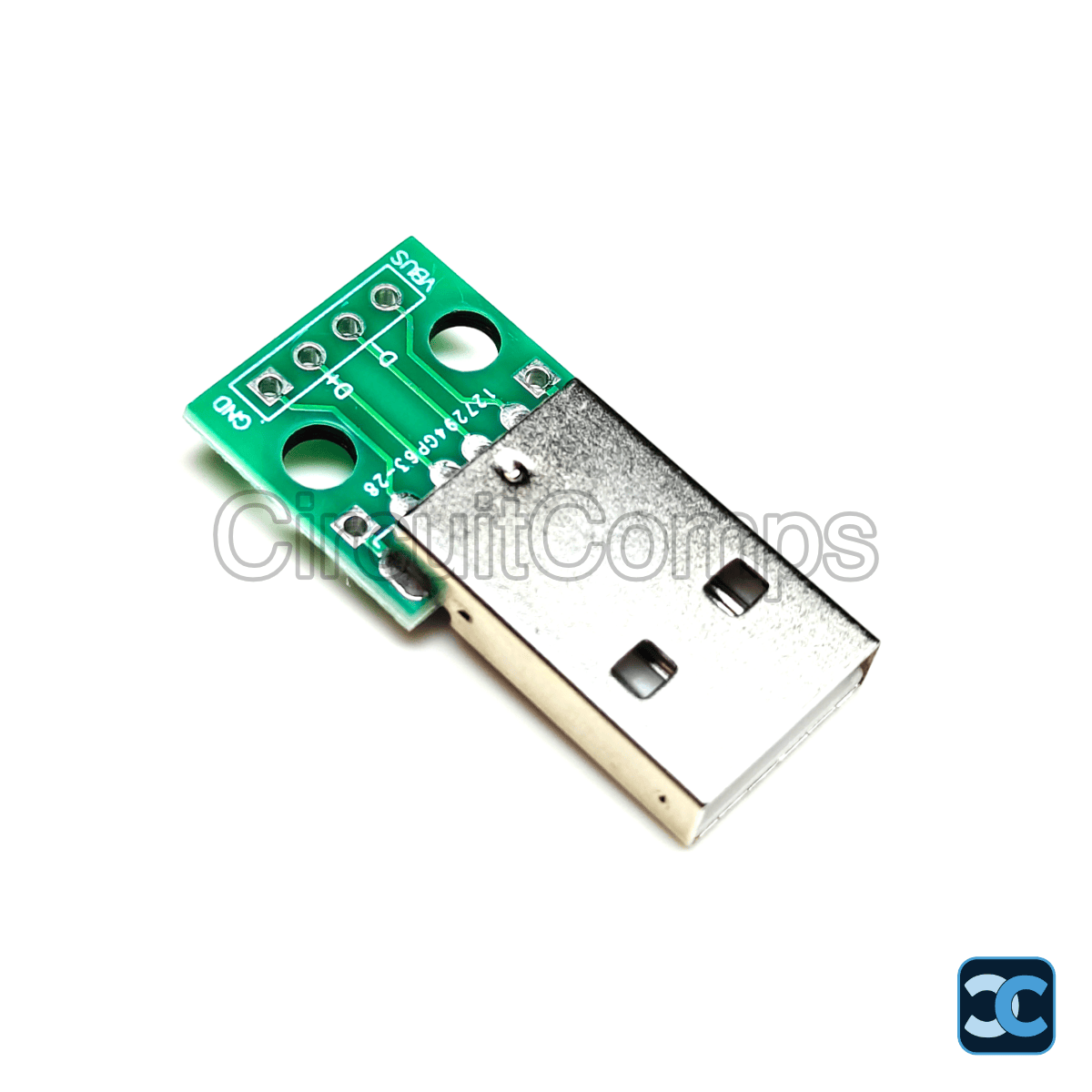

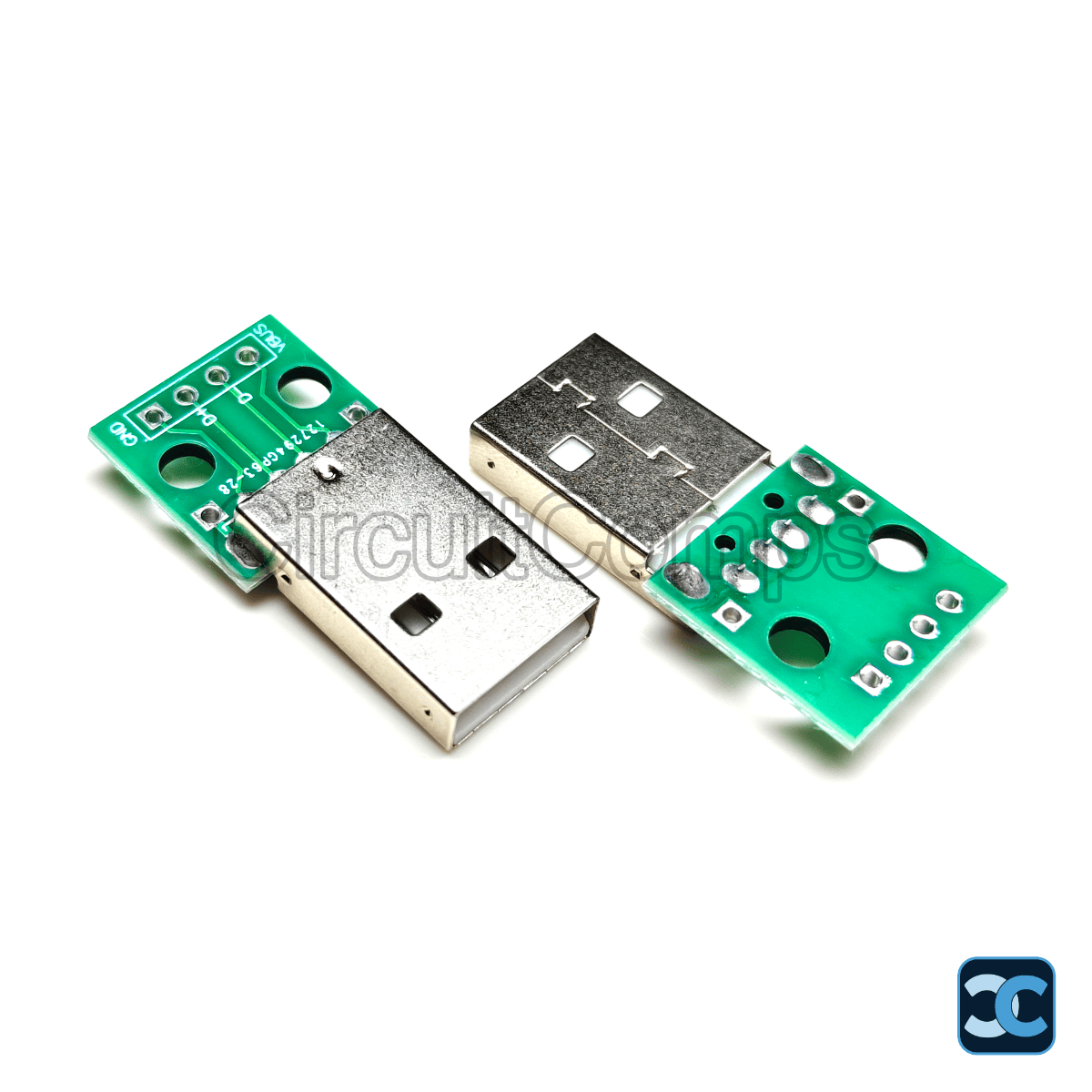

USB Type A Male Breakout Board 4 Pin 2.54mm PCB Adapter

The USB Type A Male Breakout Board is a convenient adapter designed to simplify USB connectivity in electronic projects. It features a standard USB Type A Male connector with all four USB signals broken out to 2.54mm (0.1") pitch solder pads, making it easy to connect to breadboards, prototype boards, or custom PCBs.

The compact 15 × 15mm PCB includes clearly labeled connections for quick identification of the USB power and data lines. Two M2.5 mounting holes allow secure installation in enclosures or permanent projects. Ideal for USB-powered circuits, USB interface testing, embedded systems, and custom electronics development.

Key Specifications

• Connector Type: USB Type A Male
• USB Pins: 4 (VCC, D−, D+, GND)
• Pin Pitch: 2.54 mm (0.1 inch)
• PCB Dimensions: 15 × 15 mm
• Mounting Holes: 2 × M2.5
• PCB Type: USB Breakout Board
• Approximate Weight: 3 g

Package Includes

• 1 x USB Type A Male Breakout Board 4 Pin 2.54mm PCB Adapter

Note: Image is for representation purpose only.
