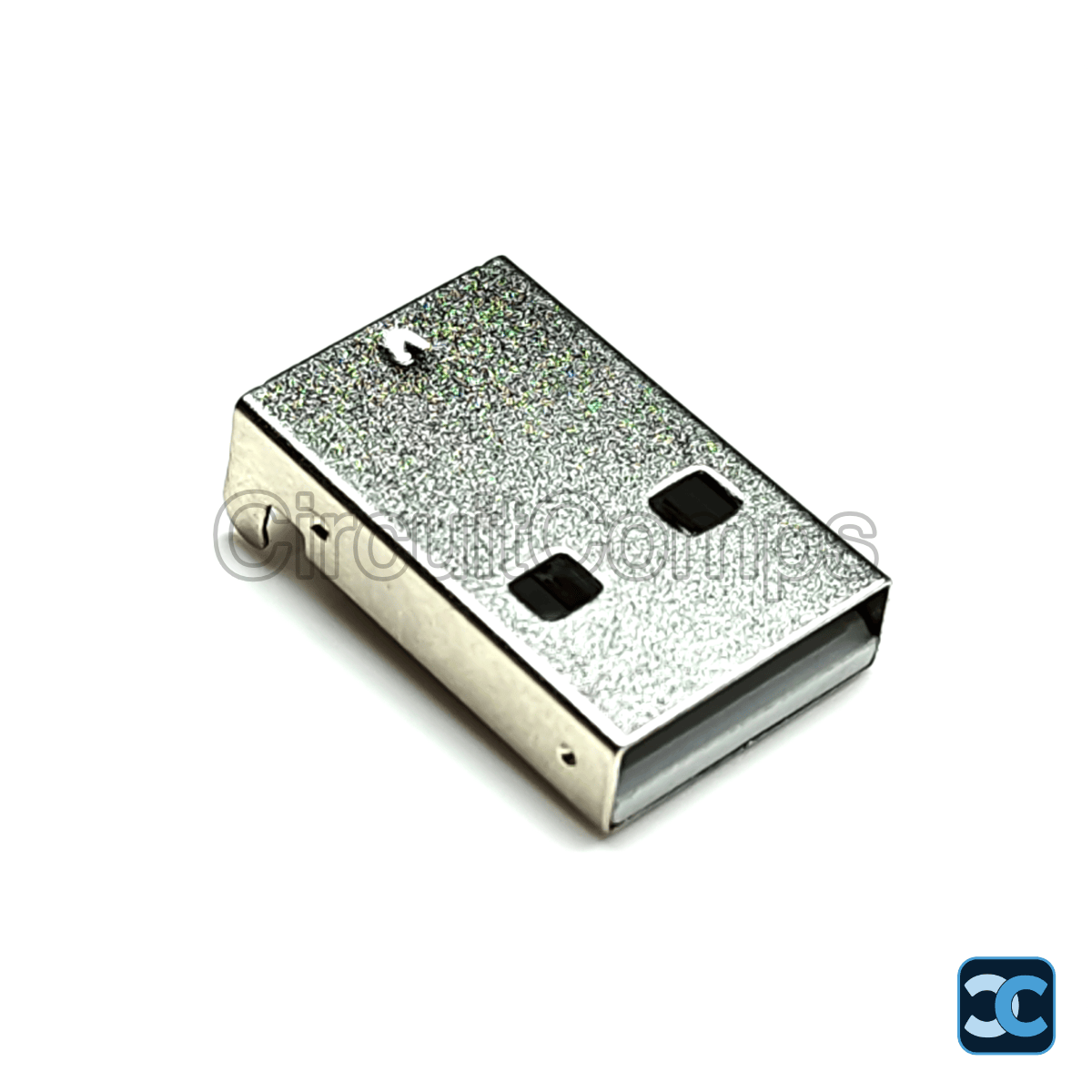

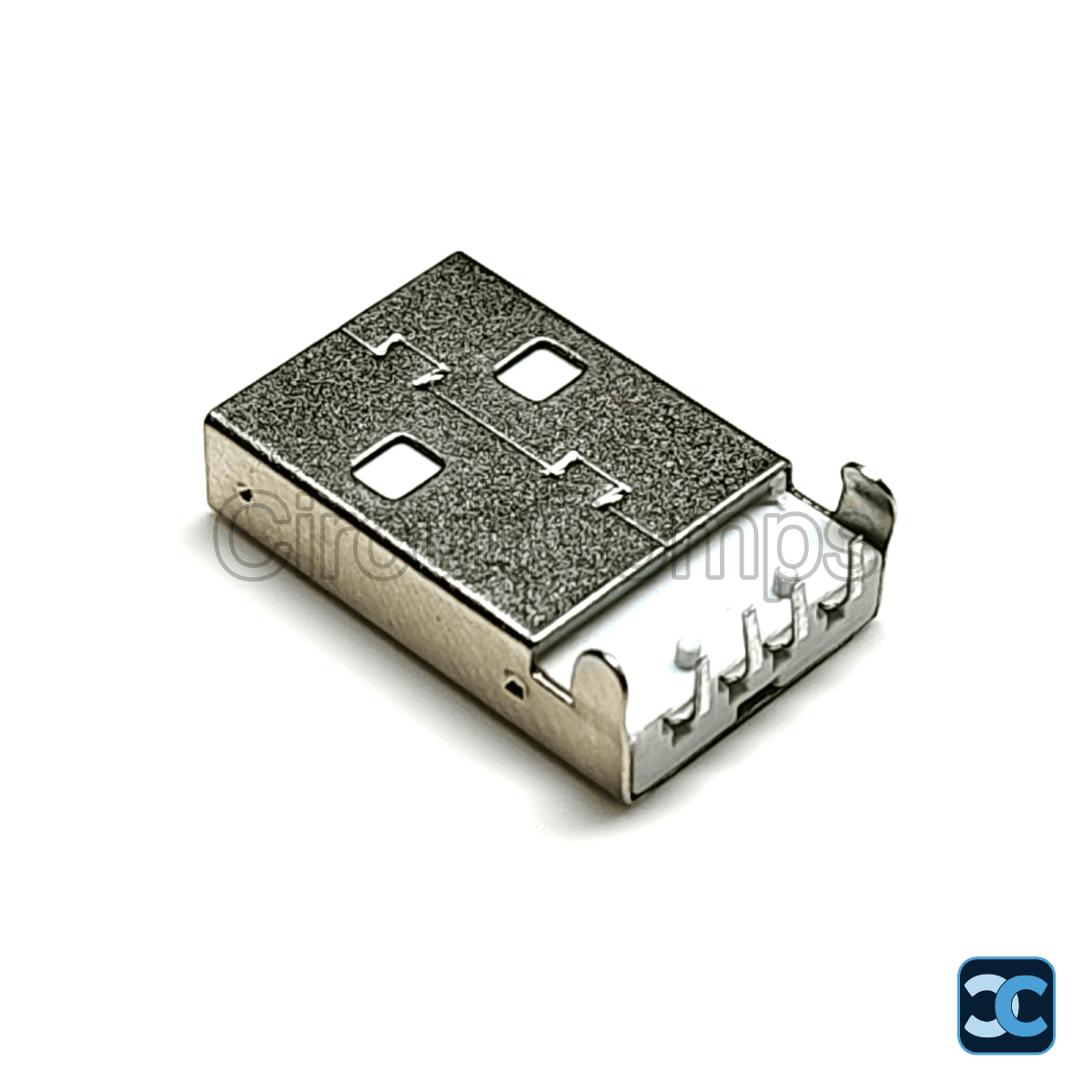

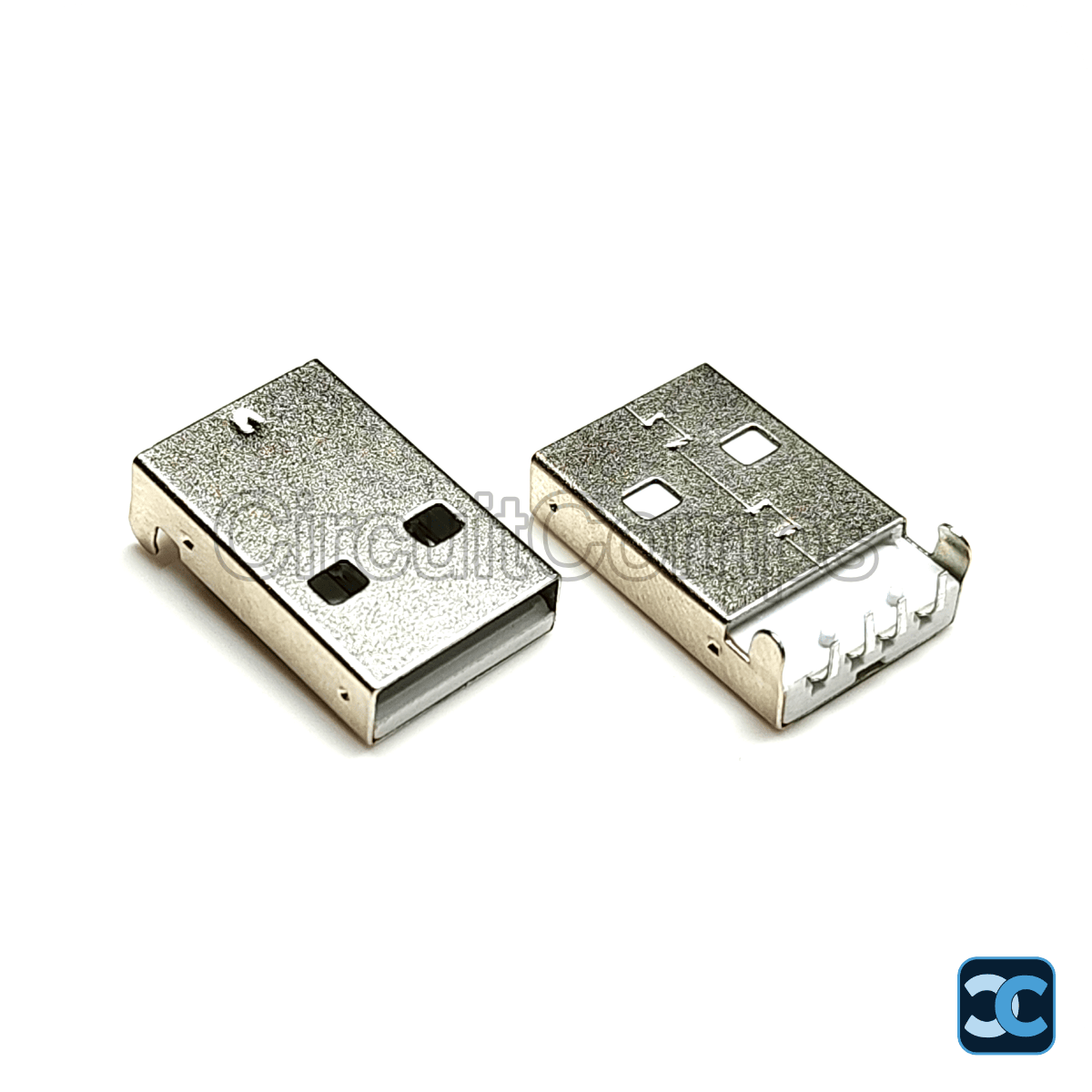

USB Type A Male Right Angle PCB Connector USB 2.0 Plug

The USB Type A Male Right Angle PCB Connector is a compact and robust PCB-mount USB plug designed for reliable USB connectivity in electronic applications. Its right-angle (R/A) configuration enables space-efficient PCB layouts, making it ideal for USB dongles, embedded systems, development boards, and custom electronic products.

Constructed with high-quality copper alloy contacts and selective gold plating, the connector offers excellent conductivity, low contact resistance, and long-term durability. The PBT UL94V-0 insulated housing provides superior electrical insulation and heat resistance, while the rugged metal shell enhances mechanical strength.

Key Specifications

• Connector Type: USB Type A Male
• USB Standard: USB 2.0
• Mounting Style: Right Angle PCB Mount
• Voltage Rating: 250 VAC
• Current Rating: 1.5 A
• Data Transfer Speed: Up to 5 Gbps
• Contact Material: Copper alloy with selective gold plating
• Insulation Material: PBT UL94V-0
• Housing Material: Metal and plastic
• Contact Resistance: 30 mΩ
• Insulation Resistance: 1000 MΩ
• Operating Temperature: −40°C to +60°C
• Durability: 1,500 mating cycles
• Insertion Force: 35 N
• Extraction Force: 10 N
• Dimensions: 20 × 12 mm
• Approximate Weight: 1 g

Package Includes

• 1 x USB Type A Male Right Angle PCB Connector USB 2.0 Plug

Note: Image is for representation purpose only.
