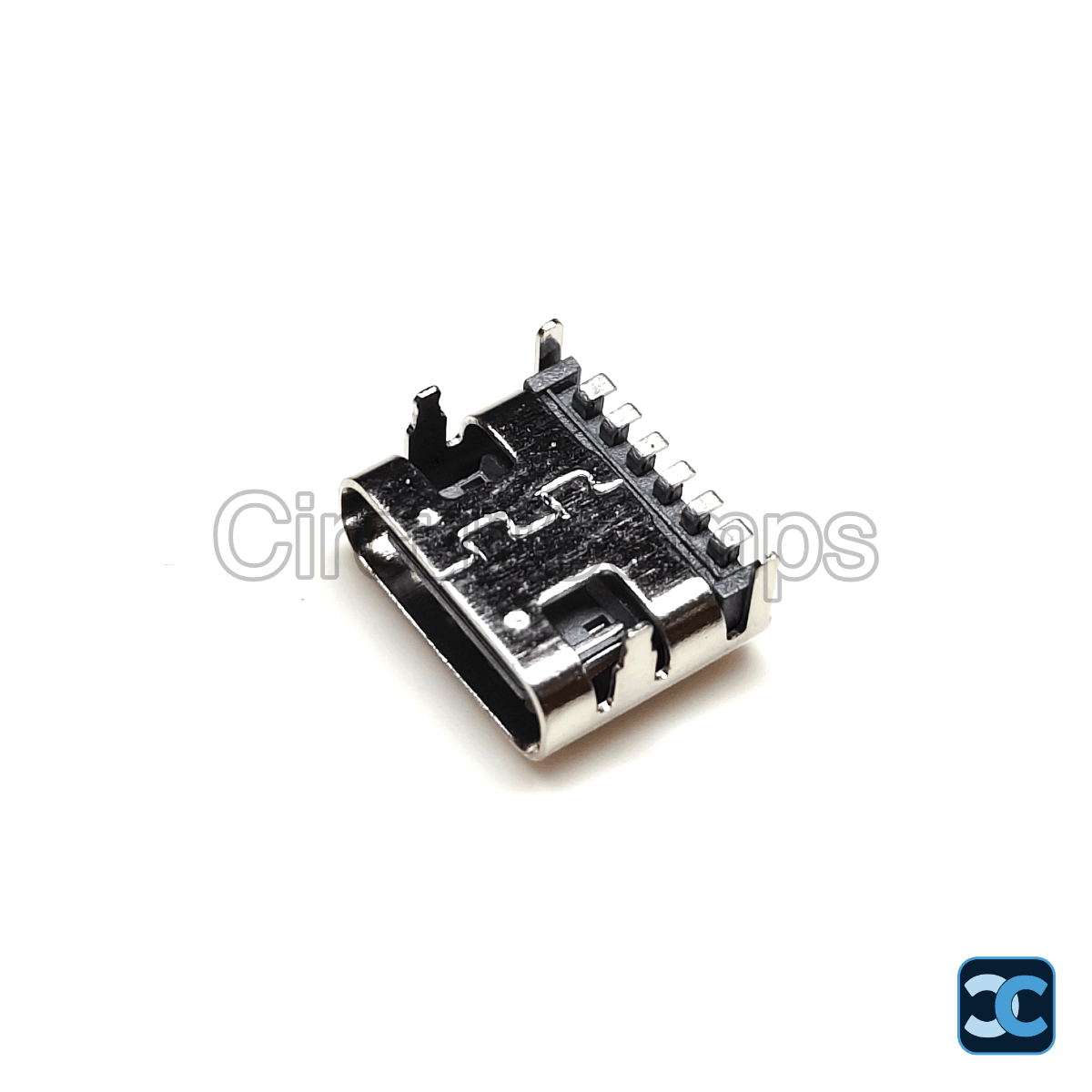

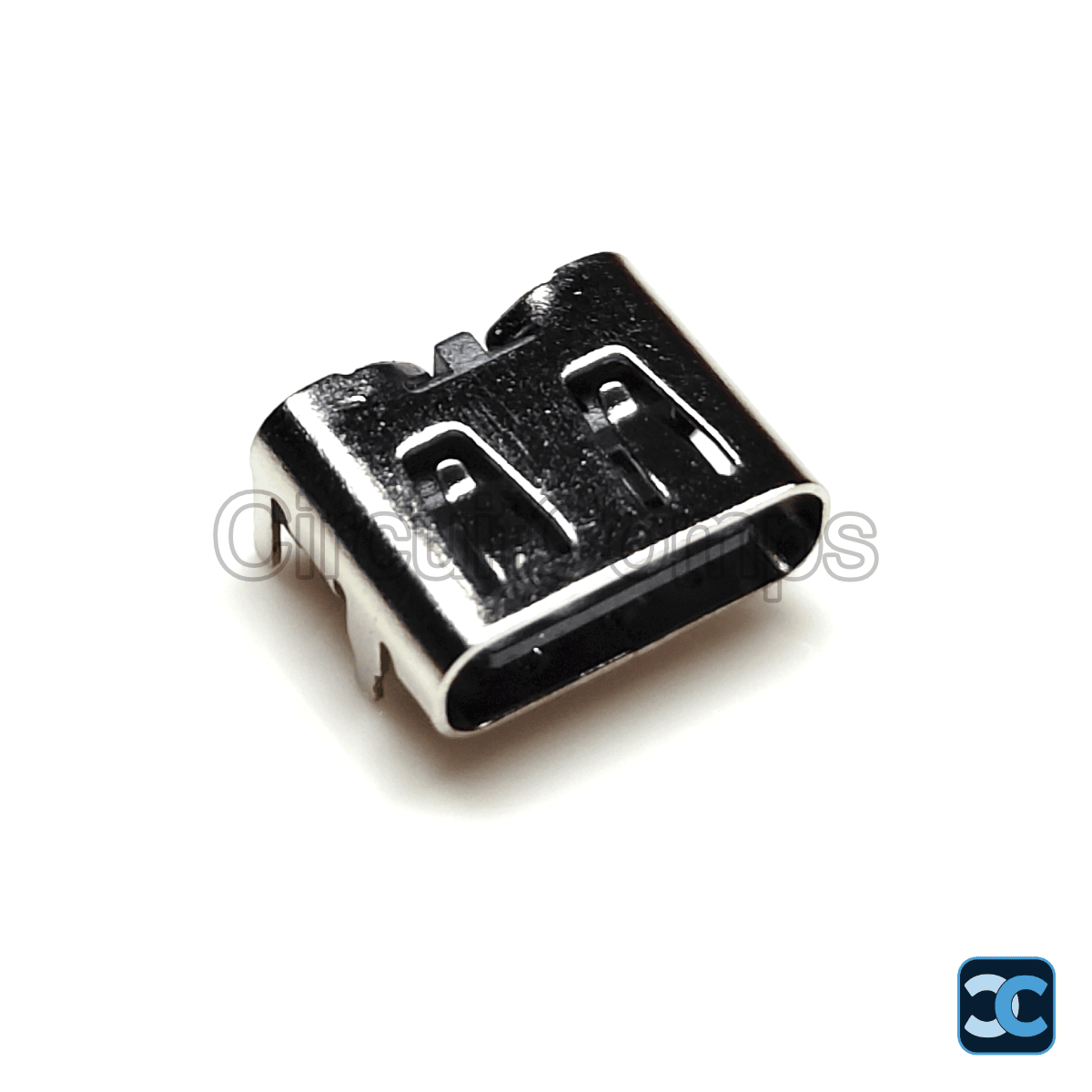

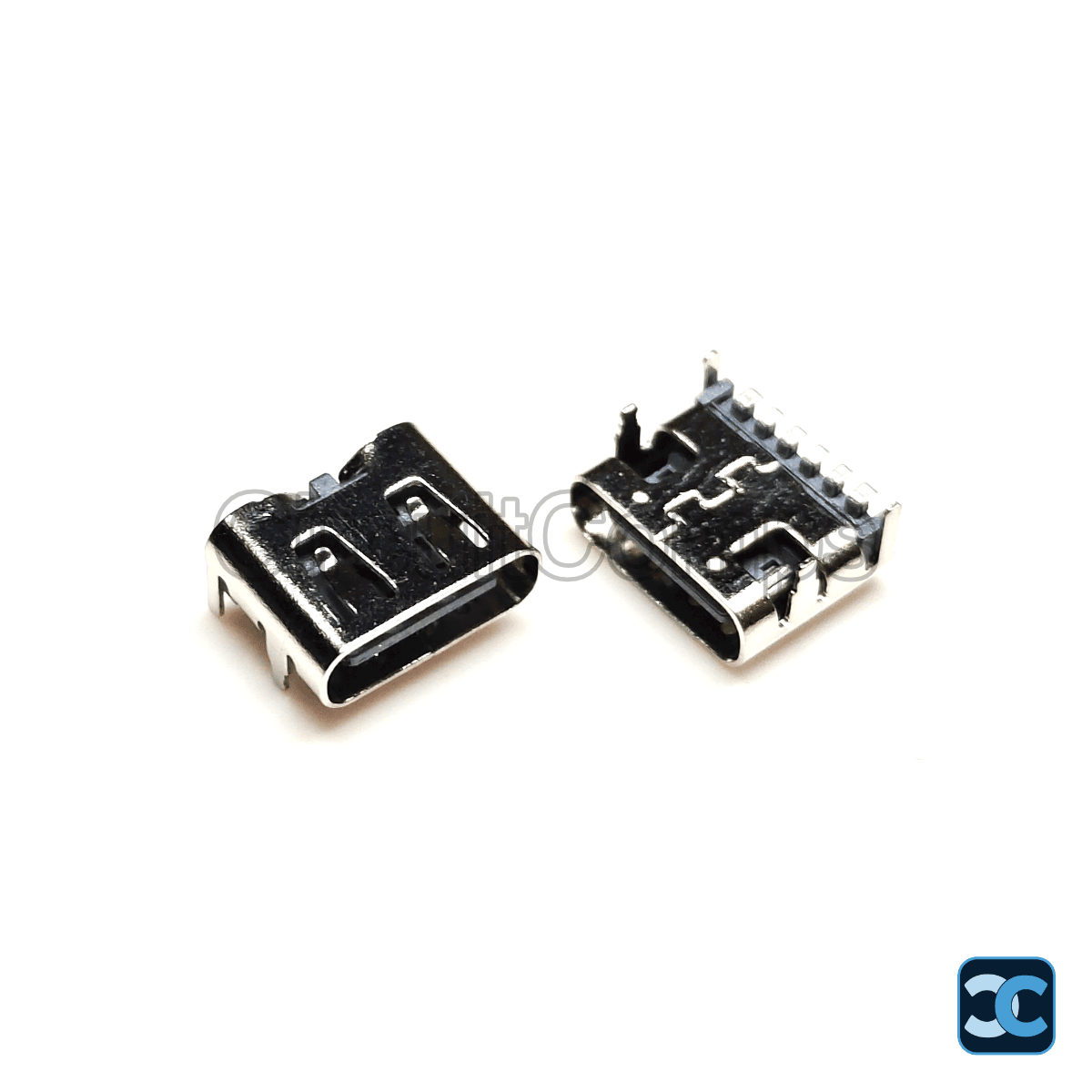

USB Type C Female 6 Pin SMD Connector 5A

The XKB U262-061N-4BVC10 USB Type-C Female Connector is a compact, high-quality surface-mount (SMD) receptacle designed for reliable power connections in modern electronic devices. Manufactured by XKB Connection, this 6-pin USB Type-C connector supports up to 5A current, making it suitable for high-current charging and USB-powered applications.

Its compact footprint enables efficient PCB space utilization, while the reversible USB Type-C interface provides convenient plug insertion from either direction. Designed to operate over a temperature range of −25°C to +85°C, this connector delivers dependable performance in consumer electronics, embedded systems, IoT devices, and industrial applications. RoHS compliance ensures compatibility with environmentally friendly manufacturing standards.

Key Specifications

• Manufacturer: XKB Connection
• Part Number: U262-061N-4BVC10
• Connector Type: USB Type-C Female
• Number of Contacts: 6 Pins
• Mounting Type: Surface Mount (SMD)
• Current Rating: 5 A
• Number of Ports: 1
• Operating Temperature: −25°C to +85°C
• Plug Orientation: Reversible (USB Type-C)
• Compliance: RoHS
• Packaging: Cut Tape
• Approximate Weight: 1 g

Package Includes

• 1 x XKB U262-061N-4BVC10 USB Type C Female 6 Pin SMD Connector 5A

Note: Image is for representation purpose only.
