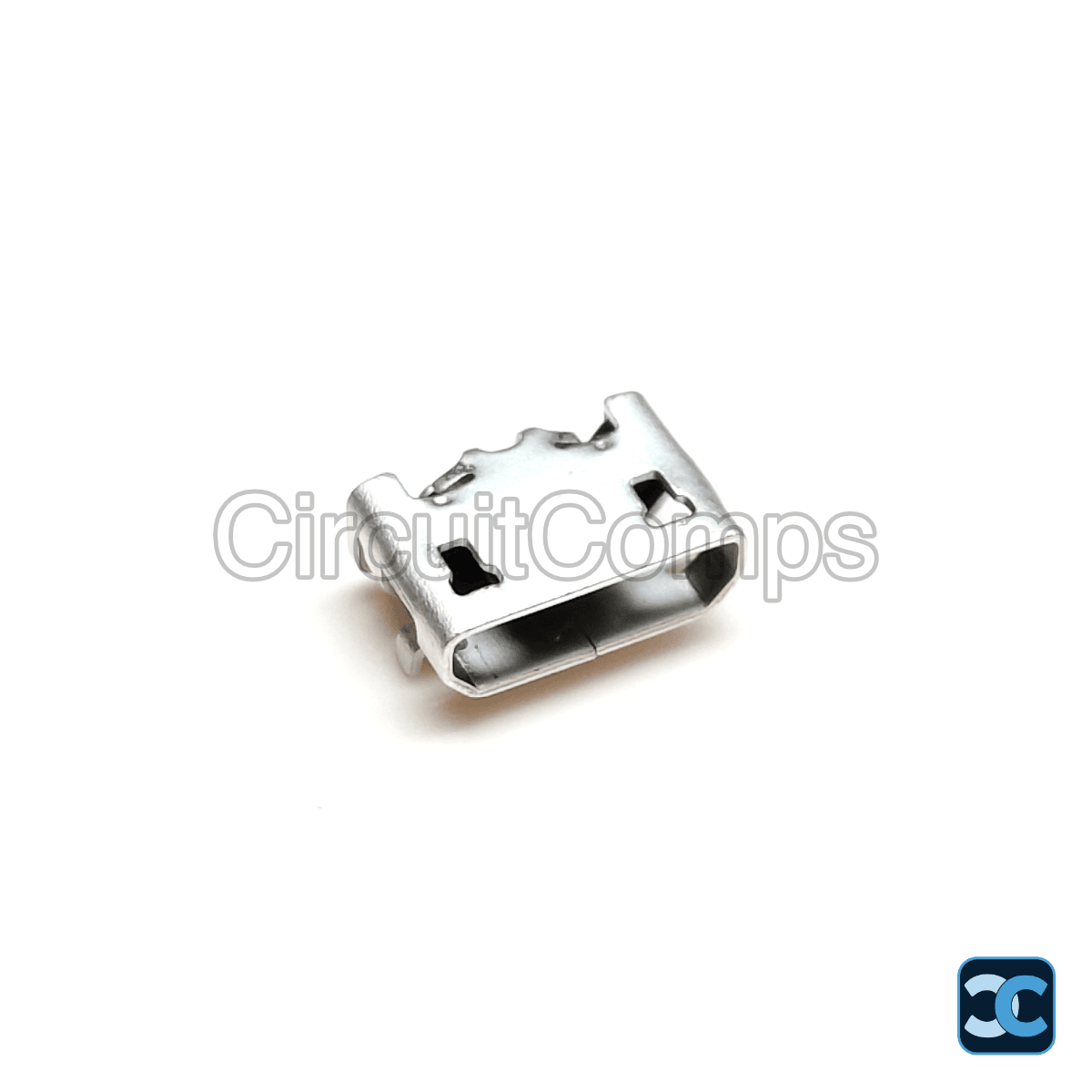

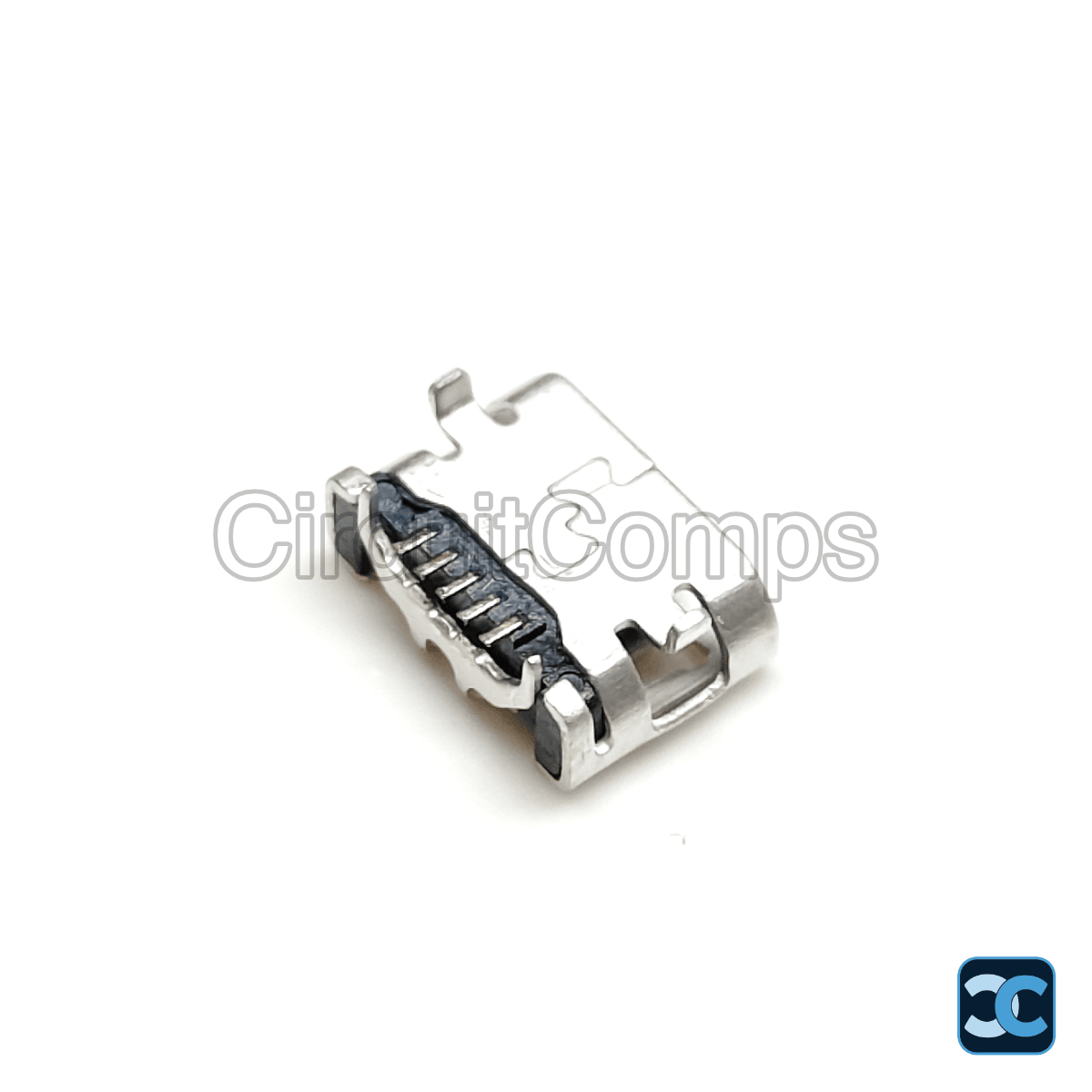

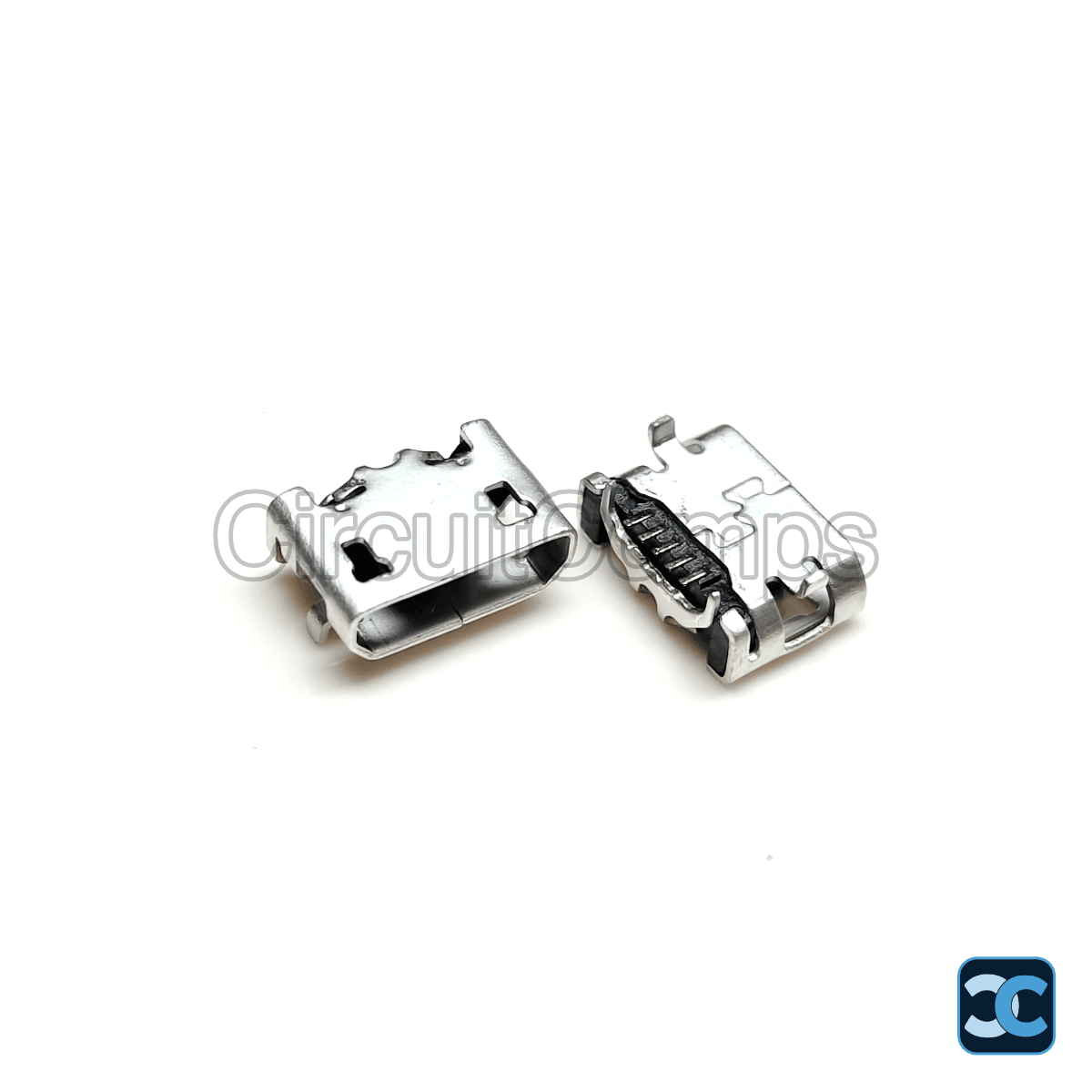

Micro USB Type B Female 5 Pin SMD Connector 1.8A

The XKB U254-051T-4BHJ25-F2S Micro USB Type B Female Connector is a compact, high-quality surface-mount (SMD) receptacle designed for dependable USB power and data connectivity. Manufactured by XKB Connection, this 5-pin Micro-B connector supports up to 1.8A current, making it suitable for charging circuits, USB-powered devices, and data communication applications.

Its compact footprint allows easy integration into space-constrained PCB designs while providing reliable electrical performance and mechanical durability. With an operating temperature range of −40°C to +85°C, this connector is well suited for consumer electronics, embedded systems, industrial equipment, IoT devices, development boards, and repair applications. RoHS compliant for environmentally responsible manufacturing.

Key Specifications

• Manufacturer: XKB Connection
• Part Number: U254-051T-4BHJ25-F2S
• Connector Type: Micro USB Type B Female
• Number of Contacts: 5 Pins
• Mounting Type: Surface Mount (SMD)
• Current Rating: 1.8 A
• Number of Ports: 1
• Operating Temperature: −40°C to +85°C
• Compliance: RoHS
• Packaging: Cut Tape
• Approximate Weight: 1 g

Package Includes

• 1 x XKB U254-051T-4BHJ25-F2S Micro USB Type B Female 5 Pin SMD Connector 1.8A

Note: Image is for representation purpose only.
