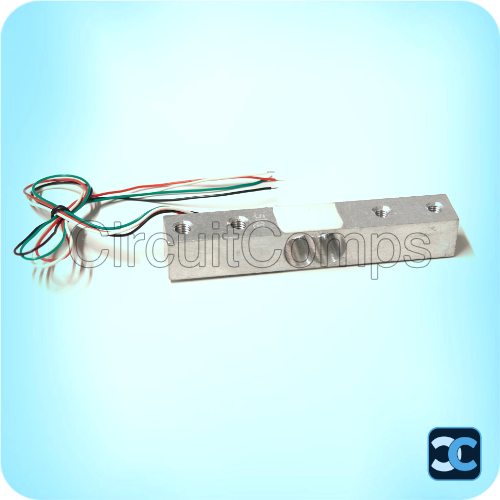

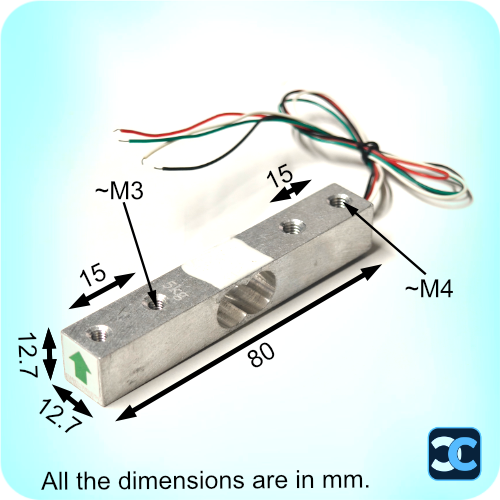

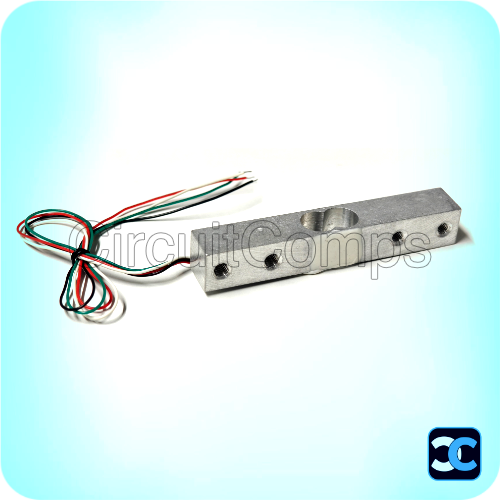

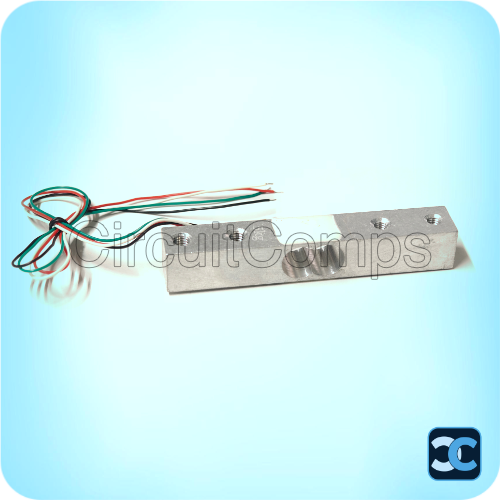

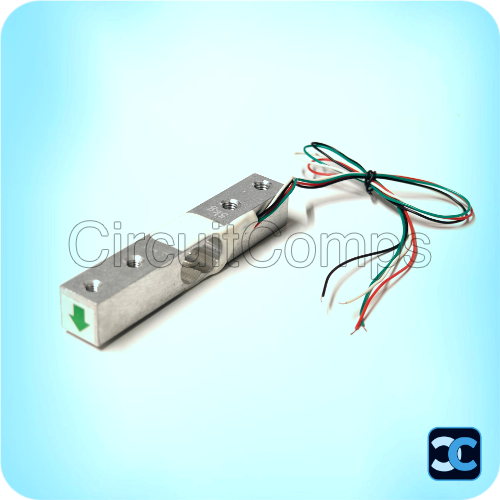

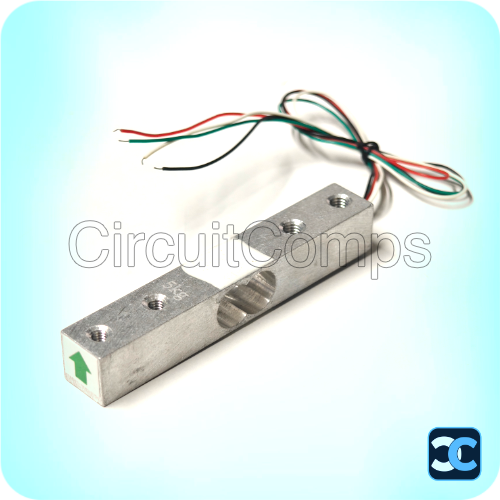

5Kg Load Cell Weight Sensor Aluminium Strain Gauge

The 5Kg Load Cell Weight Sensor is a precision strain gauge sensor designed for measuring weight and force in electronic weighing systems. Made from durable aluminium alloy, this sensor can measure loads up to 5 kilograms and converts mechanical force into proportional electrical signals for accurate weight detection.

The load cell is commonly used with the HX711 load cell amplifier module to convert the small analog signal into digital data that can be easily read by microcontrollers such as Arduino, Raspberry Pi, and other embedded systems. Its compact design and high sensitivity make it ideal for electronic weighing scales, smart measurement devices, and automation systems.

Key Specifications:
Maximum Measuring Range: 5Kg
Sensor Type: Strain Gauge Load Cell
Material: Aluminium Alloy
Differential Input Voltage: ±40mV
Operating Voltage: 2.7V – 5V DC
Operating Current: <10mA
Data Accuracy: 24-bit (with HX711 ADC)
Refresh Rate: 10Hz / 80Hz

Applications:
Electronic kitchen weighing scales
Digital platform scales
Industrial weighing systems
Force measurement systems
IoT weight monitoring devices

Package Includes:
1 x 5Kg Load Cell Weight Sensor

Note: HX711 load cell amplifier module must be purchased separately. Image is for representation purpose only.
