Mini 5A PWM DC Motor Speed Controller Module (3V–35V) – LED Dimmer Switch

Product Description:

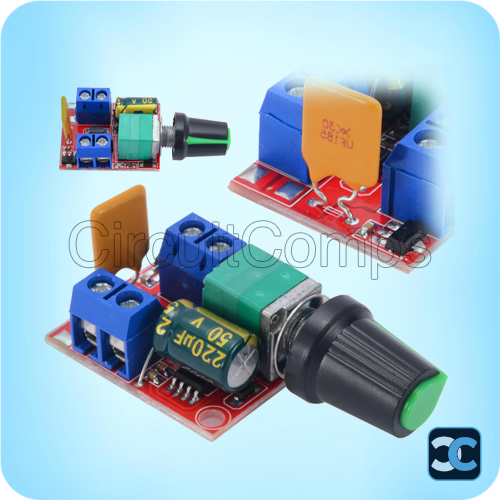

Mini 5A PWM DC Motor Speed Controller Module (3V–35V) – LED Dimmer Switch

The Mini 5A PWM DC Motor Speed Controller Module is a compact, efficient, and versatile solution for regulating DC motor speed or dimming DC-powered LED lights. Based on PWM (Pulse Width Modulation) technology, this controller allows you to adjust motor speed or brightness precisely, making it ideal for applications like cooling fans, LED dimming, motor-driven automation, and more.

This module supports a wide input voltage range of 3V to 35V DC and delivers up to 5A of continuous current, protected by a self-recovery fuse for safe and stable operation.

📦 Package Includes:

• 1 x Mini 5A PWM DC Motor Speed Controller Module (3V–35V) with LED Dimmer Switch

🔧 Specifications:

• Working Voltage: DC 3V–35V

• Rated Current: Up to 5A

• Control Power: Max 90W

• PWM Duty Cycle: 1% – 100%

• PWM Frequency: 10 kHz

• Quiescent Current: 0.015A

• Potentiometer Resistance: 100K

• Dimensions (Without Knob): 30 x 24 x 19 mm

• Dimensions (With Knob): 51 x 24 x 19 mm

✨ Features:

• Ultra-compact motor speed controller and LED dimmer

• Supports wide DC voltage input (3V to 35V)

• Pulse width modulation (PWM) based output control

• Built-in fuse with auto-recovery for protection

• Simple wiring and adjustable knob for easy operation

• Ideal for low-voltage DC motor and LED applications

⚙️ Applications:

• DC motor speed regulation in robotics, conveyors, automation

• LED lighting dimmer for DC LED strips and lamps

• Fan speed controller in computers or DIY enclosures

• General-purpose DC load modulation

• Compact power supplies and battery-powered devices

📝 Usage Instructions:

1. Turn the potentiometer fully counterclockwise until a click is heard.

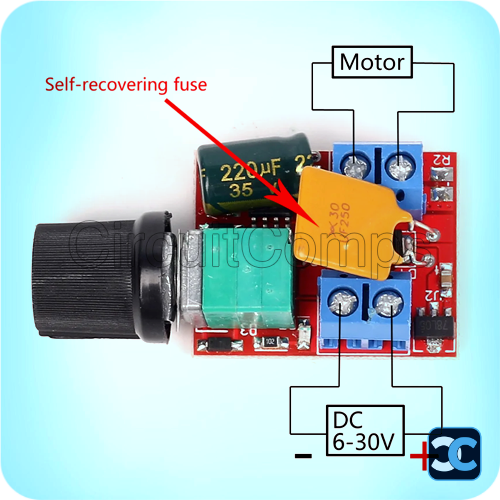

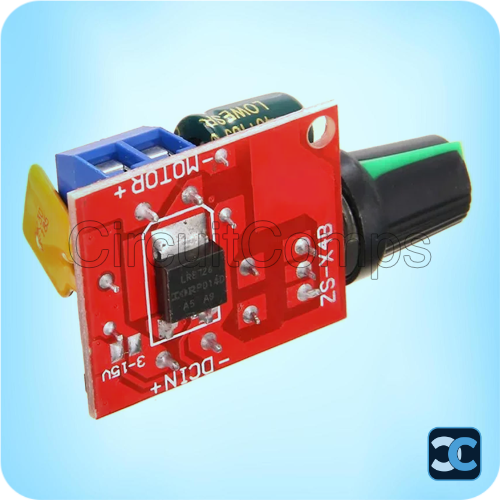

2. Connect your motor or LED to the ‘MOTOR+’ and ‘MOTOR-’ terminals.

3. Supply DC power via ‘DC IN+’ and ‘DC IN-’.

4. Adjust the knob to vary speed or brightness as needed.

5. To stop output, rotate the potentiometer fully counterclockwise again.

⚠️ Important Notes:

• Works only with DC motors or DC LEDs—do not connect to AC (110V/220V).

• Observe correct polarity—reversing polarity may damage the controller.

• Motor rotation direction can be reversed by swapping the motor wires.
