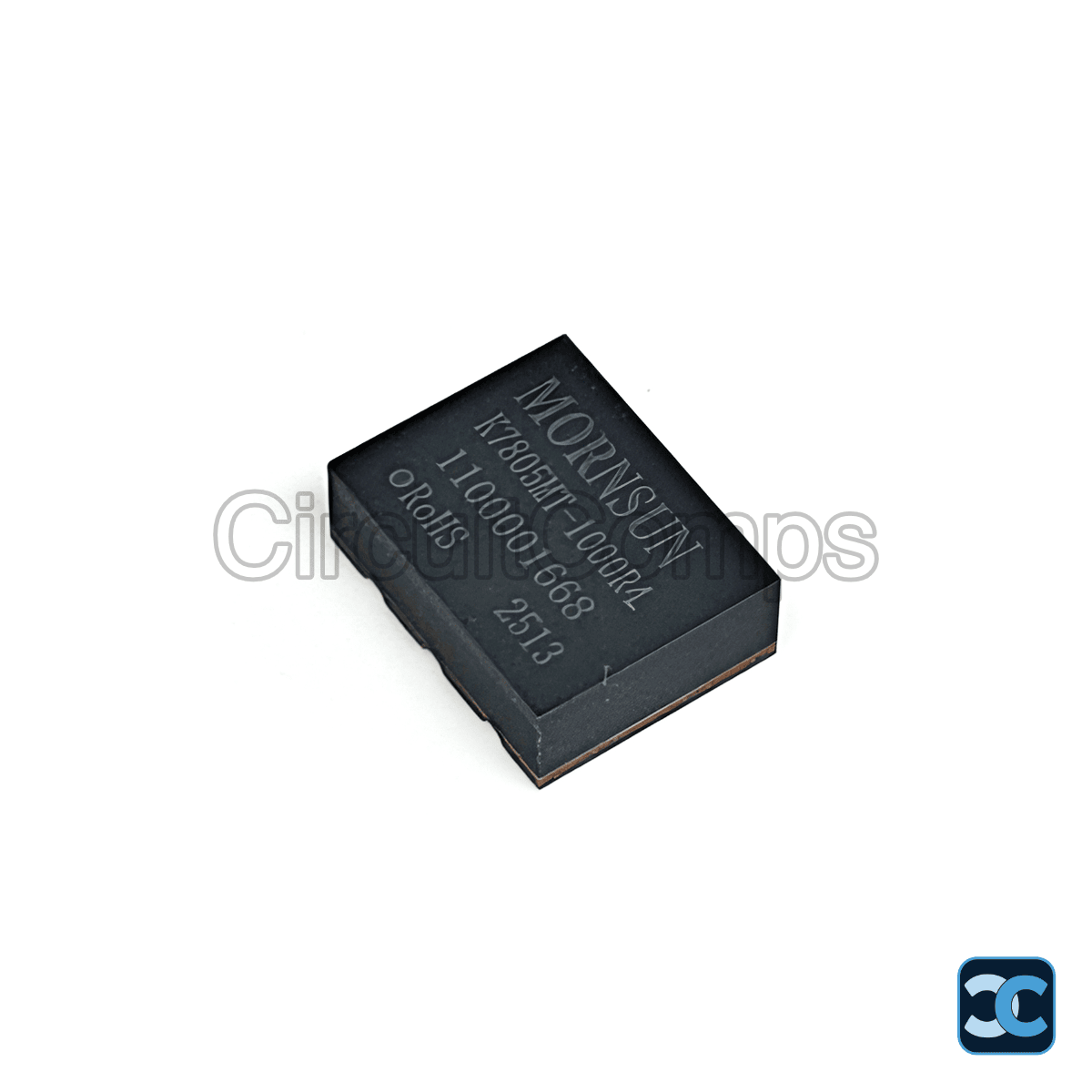

K7805MT-1000R4 Mornsun 5V 1A Non-Isolated DC-DC Converter

The Mornsun K7805MT-1000R4 is a high-efficiency non-isolated DC-DC converter delivering a stable 5V output at up to 1A from a wide input range of 6.5V to 36V. With up to 96% efficiency, ultra-compact DFN packaging, and built-in protection features, it is the ideal drop-in voltage regulator for IoT devices, industrial control systems, embedded boards, and any space-constrained application demanding reliable power conversion.

Key Specifications

• Part Number: K7805MT-1000R4
• Manufacturer: Mornsun
• Type: Non-Isolated DC-DC Converter
• Input Voltage: 6.5V to 36V
• Output Voltage: 5V ±2%
• Output Current: Up to 1A
• Efficiency: Up to 96%
• Operating Temperature: -40°C to +85°C
• Package: Ultra-small DFN (9.00 x 7.00 x 3.10 mm)
• Protections: Short Circuit, Over-Current, Over-Temperature
• Weight: 1.1 g

Package Includes

• 1 x K7805MT-1000R4 Mornsun 5V 1A Non-Isolated DC-DC Converter

Note: Image is for representation purpose only.
