- XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module

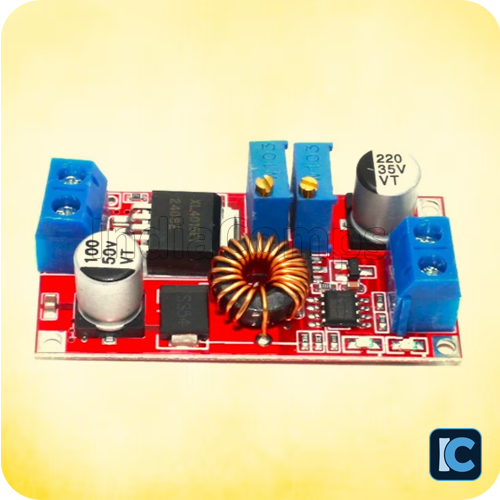

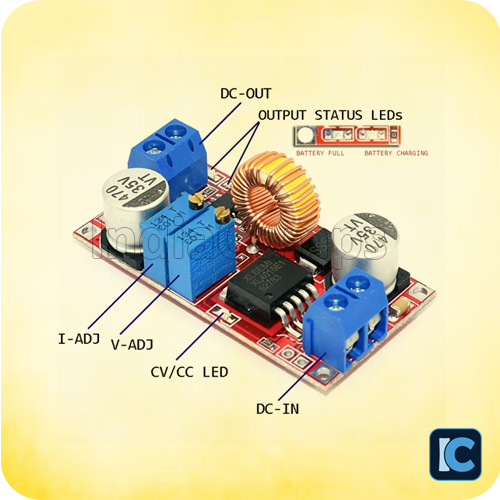

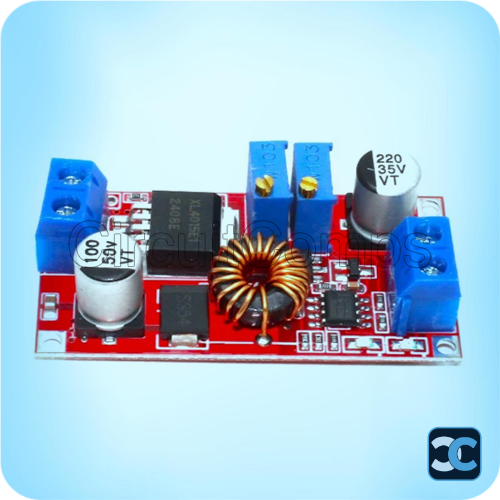

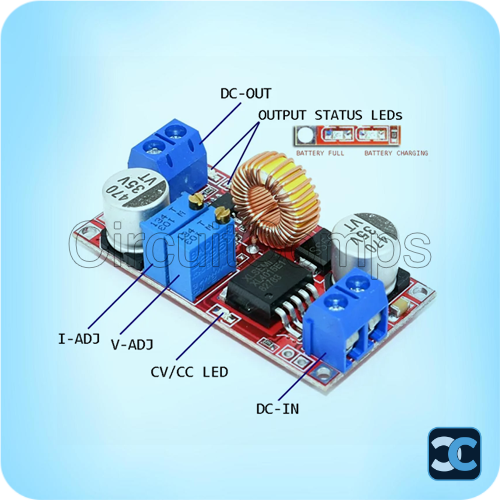

XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module
- Description
- Reviews
The XL4015 5A CC/CV Buck Converter Module is a high-efficiency DC-DC step-down regulator designed for adjustable constant voltage and constant current applications. Built around the XL4015 switching regulator operating at 300kHz, this module delivers up to 5A output current with efficiency up to 95%.
It supports a wide input voltage range of 5V to 32V DC and provides an adjustable output voltage from 0.8V to 30V DC, making it ideal for lithium battery charging, LED driving, and embedded power supply systems. The integrated CC/CV control makes it suitable for safe Li-Ion and Li-Po battery charging.
Key Specifications:
Input Voltage: 5V – 32V DC
Output Voltage: 0.8V – 30V DC (Adjustable)
Maximum Output Current: 5A
Maximum Output Power: 75W
Efficiency: Up to 95%
Switching Frequency: 300kHz
Ripple: ≤ 50mV
Dimensions: 51mm x 26.3mm x 14mm
Package Includes:
1 x XL4015 5A CC/CV Adjustable Step-Down Buck Converter Module
Note: Image is for representation purpose only.
