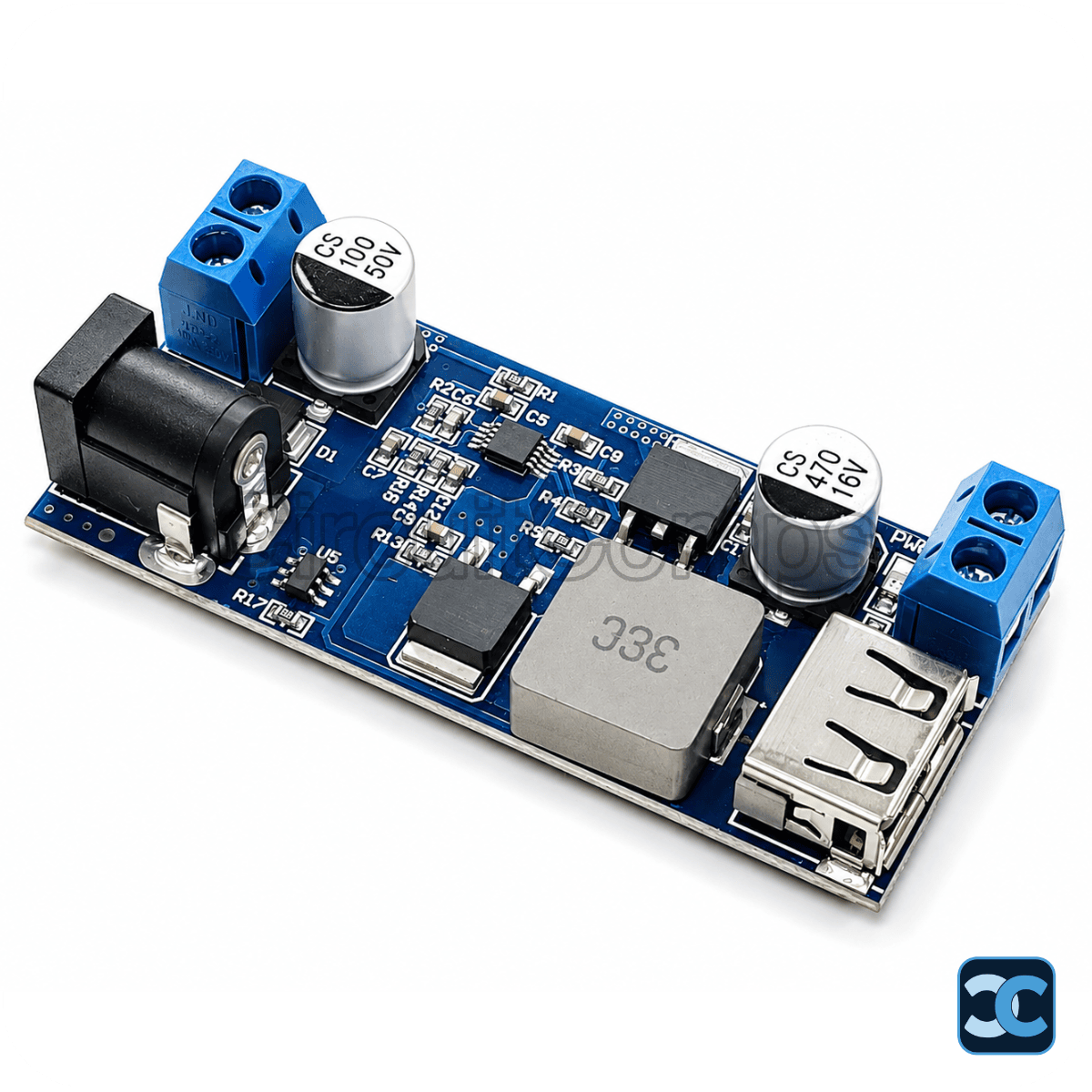

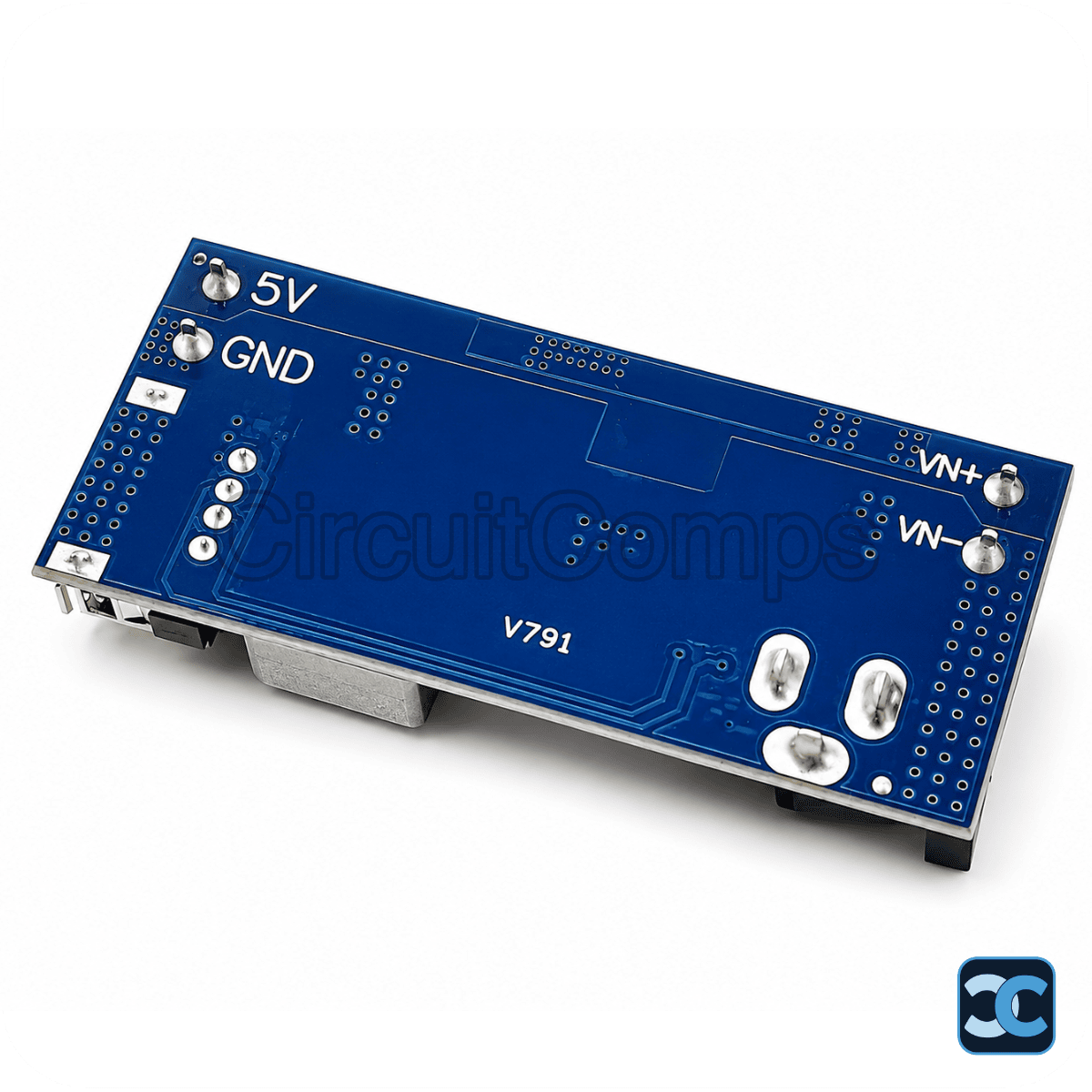

XY-3606 DC-DC Step-Down Buck Converter Module 9-36V to 5V 6A 30W Synchronous

The XY-3606 DC-DC Step-Down Buck Converter Module is a high-efficiency synchronous rectification power supply designed to step down a wide 9V–36V DC input into a stable 5V / 5.2V DC output. Delivering up to 6A or 30W of precise power regulation with over 90% efficiency, it is a reliable plug-and-play solution for powering USB devices, microcontrollers, Raspberry Pi systems, and automotive electronics.

Fortified with comprehensive industrial-grade protections — overvoltage, overcurrent, short-circuit, and over-temperature — the XY-3606 actively defends connected electronics across a −40°C to +85°C operating range.

Key Specifications

• Model: XY-3606
• Converter Type: Synchronous Rectification Step-Down (Buck)
• Input Voltage: 9V to 36V DC
• Output Voltage: 5V / 5.2V DC regulated
• Power Efficiency: >90%
• Protection: Overvoltage, overcurrent, short-circuit, over-temperature
• Operating Temperature: −40°C to +85°C
• Module Weight: 28 grams

Dynamic Output Capacity

• 9V – 24V Input: 5.2V @ 6A (30W max)
• 24V – 32V Input: 5.2V @ 5A (25W max)
• 32V – 36V Input: 5.2V @ 3.5A (18W max)

Applications

• Automotive electronics for stepping down 12V/24V vehicle, marine, or truck rails to stable 5V for navigation hardware and instrumentation panels
• Single-board computer power supply for Raspberry Pi, Arduino arrays, and other power-hungry embedded systems
• DIY projects and portable power including custom lithium battery packs, portable power banks, and mobile telemetry setups
• Solar power systems as a stable voltage regulation block downstream from solar panel charge controllers

Package Includes

• 1 x XY-3606 DC-DC Step-Down Buck Converter Module

Note: Image is for representation purpose only.
