HX711 Weighing Dual-Channel 24-Bit Precision A/D Pressure Sensor Module

The HX711 Load Cell Amplifier Module is a high-precision 24-bit analog-to-digital converter designed specifically for electronic weighing systems and load cell applications. It integrates the HX711 IC with a built-in programmable gain amplifier (PGA), enabling accurate measurement of very small signals from strain gauge load cells.

This module features dual-channel differential inputs and supports selectable gain levels of 32, 64, and 128, making it ideal for precision weight measurement and force sensing. With a simple 2-wire serial interface (DT and SCK), it can easily interface with microcontrollers such as Arduino, ESP32, Raspberry Pi, and other embedded platforms.

Key Specifications:
Model: HX711
Resolution: 24-bit ADC
Operating Voltage: 2.7V – 5V DC
Operating Current: <1.5mA
Power-down Current: <1µA
Programmable Gain: 32, 64, 128
Refresh Rate: 10Hz / 80Hz
Operating Temperature: -40°C to +85°C
Dimensions: 34.3mm × 20mm × 3mm

Pin Configuration:
Analog Interface: E+, E−, A+, A−, B+, B−
Digital Interface: VCC, GND, DT, SCK

Applications:
Digital weighing scales
Kitchen and postal scales
Industrial force measurement systems
IoT weight monitoring devices
Robotics load detection systems
Engineering and research prototypes

Package Includes:
1 x HX711 24-Bit Load Cell Amplifier Sensor Module

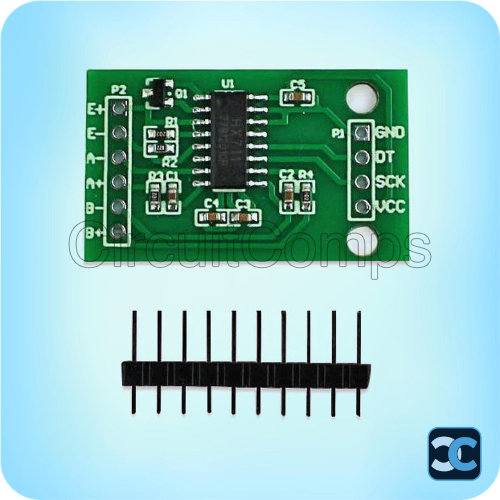

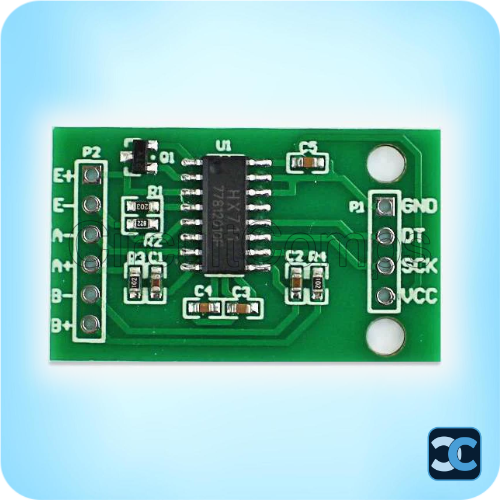

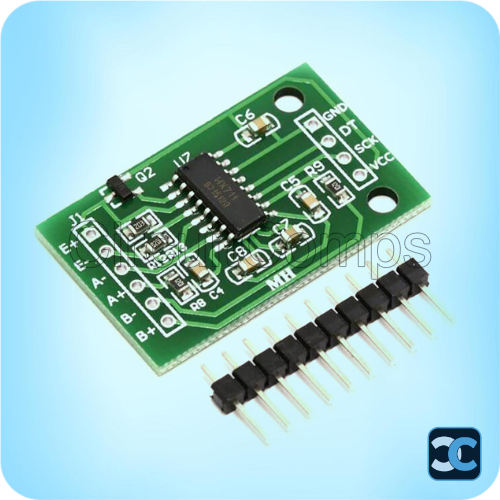

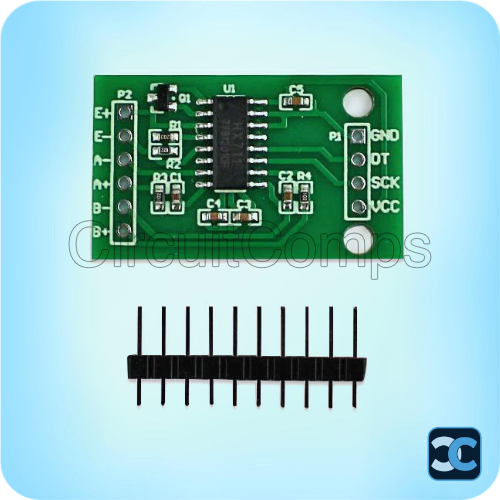

Note: Image is for representation purpose only.
