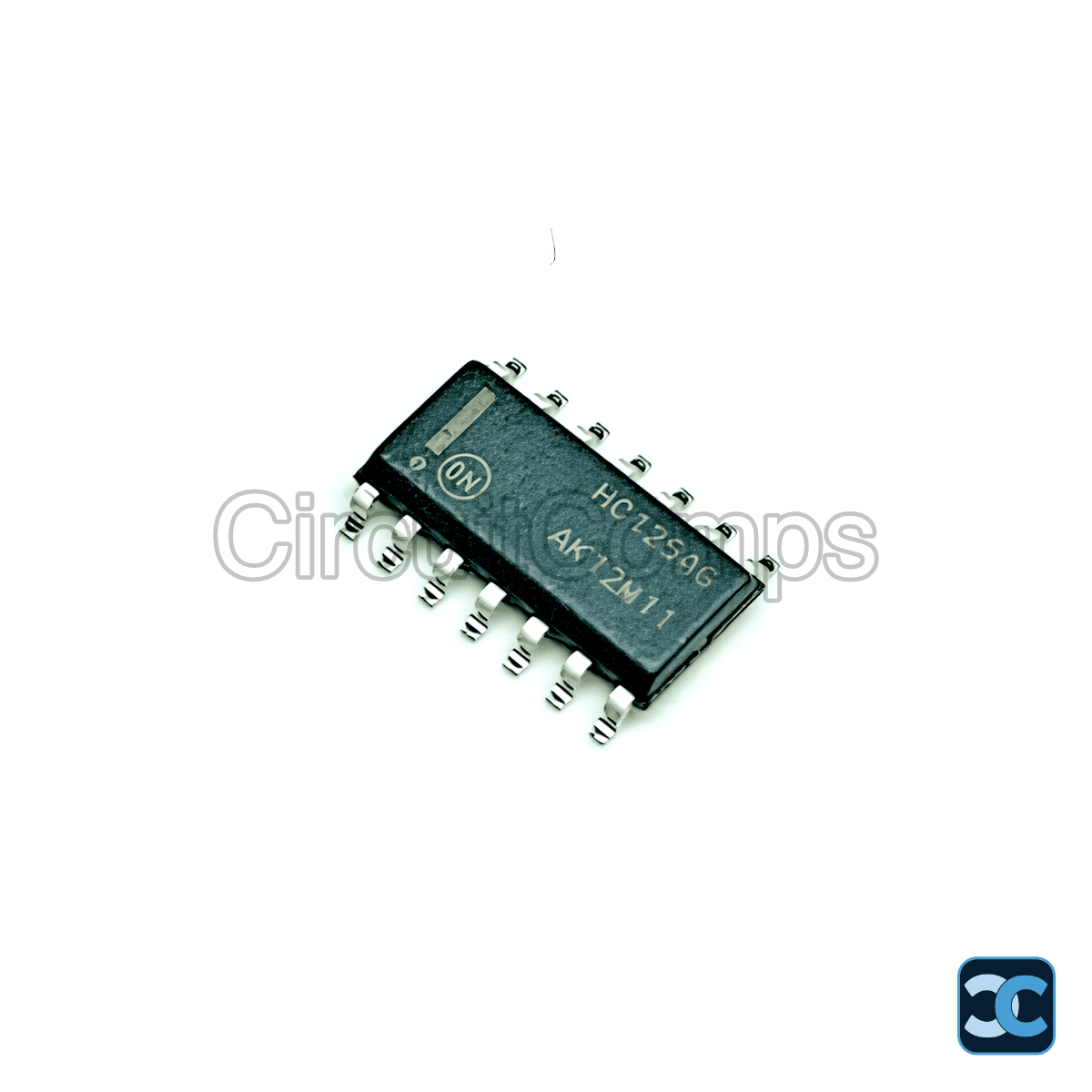

MC74HC125ADR2G Quad 3-State Non-Inverting Buffer SOIC-14 2V-6V - ON Semiconductor

The MC74HC125ADR2G from ON Semiconductor is a quad 3-state non-inverting buffer IC from the HC (High-Speed CMOS) logic family, housed in a SOIC-14 SMD package. Operating across a wide 2V–6V supply range with only 4µA quiescent current and 15ns propagation delay at 6V, it is ideal for bus driving, signal buffering, and output enable/disable control in high-speed digital systems, microcontroller interfaces, and data bus applications.

Key Specifications

• MPN: MC74HC125ADR2G
• Manufacturer: ON Semiconductor (ONSEMI)
• Type: Quad 3-State Non-Inverting Buffer
• Logic Family: HC (High-Speed CMOS)
• Package: SOIC-14 (SMD)
• Number of Pins: 14
• Supply Voltage: 2V – 6V
• Quiescent Current: 4µA
• Propagation Delay: 15ns @ 6V
• Output Current (IOL/IOH): ±7.8mA
• Operating Temperature: -55°C to +125°C
• Mounting Style: SMD (Surface Mount)

Package Includes

• 1 x MC74HC125ADR2G Quad 3-State Non-Inverting Buffer SOIC-14 - ON Semiconductor

Note: Image is for representation purpose only.
