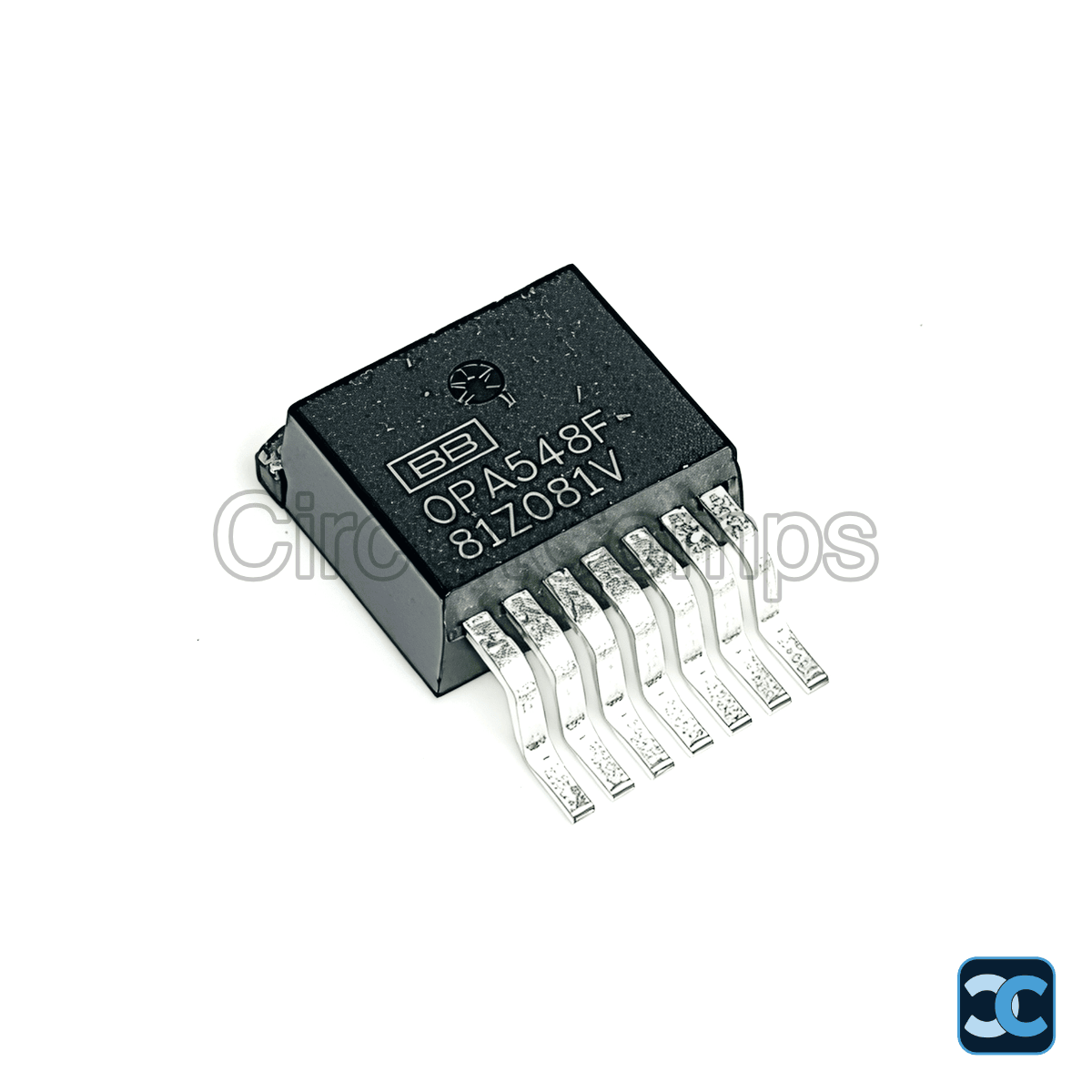

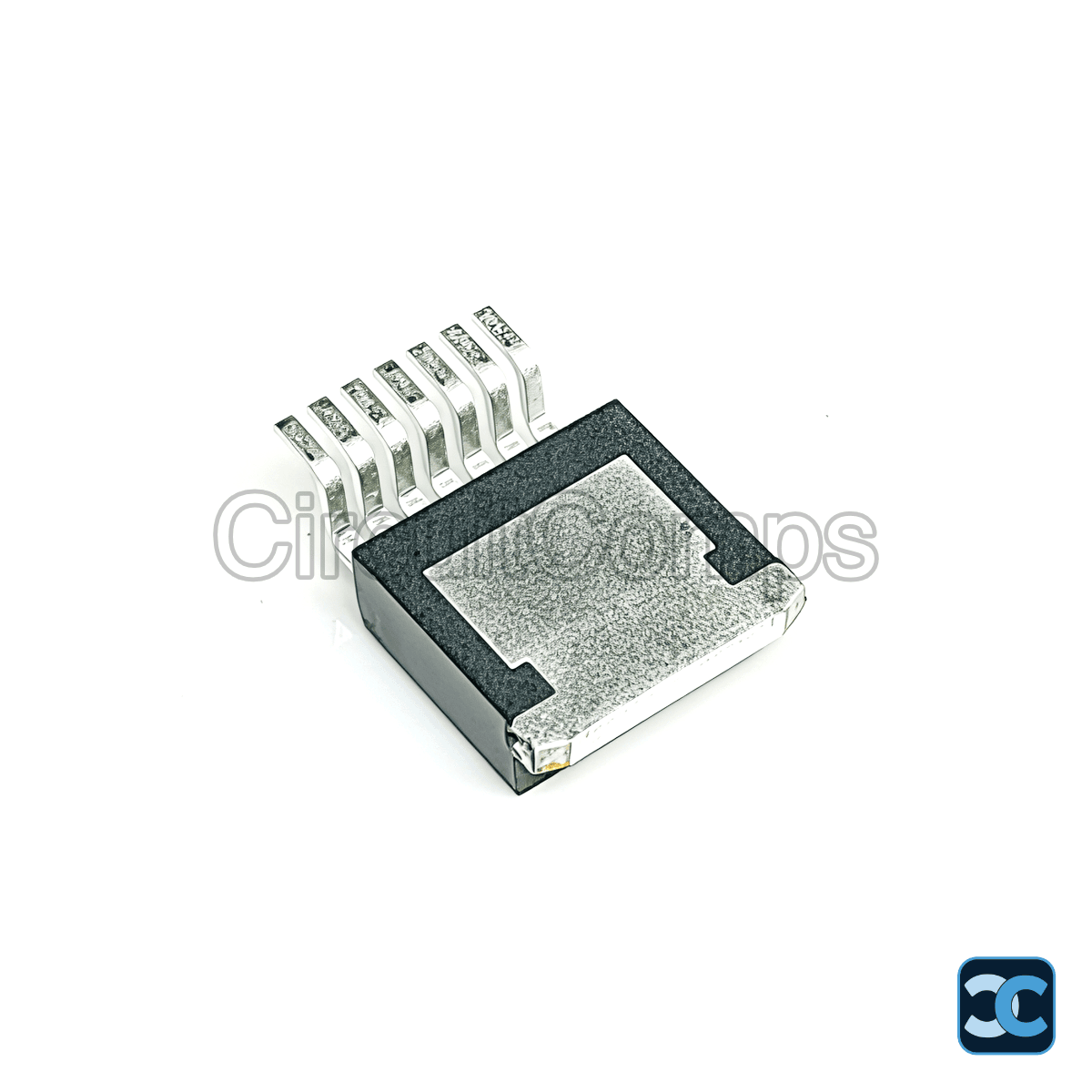

OPA548F/500 High-Voltage High-Current Power Operational Amplifier TO-263-7

The OPA548F/500 is a robust, high-performance power operational amplifier from Texas Instruments, engineered to drive demanding loads with precision and reliability. Delivering up to 3A continuous and 5A peak output current across a wide supply range of 8V to 60V (single) or ±4V to ±30V (dual), it is the ideal choice for industrial motor drivers, power supplies, test equipment, and audio amplifier applications requiring stable, high-power op-amp performance in a compact SMD package.

Key Specifications

• Part Number: OPA548F / OPA548F/500
• Type: Power Operational Amplifier
• Package: TO-263-7 (D2PAK, TO-263CA)
• Output Current: 3A continuous, 5A peak
• Supply Voltage (Single): 8V to 60V
• Supply Voltage (Dual): ±4V to ±30V
• Slew Rate: 10 V/µs
• Gain Bandwidth Product: 1 MHz
• Input Offset Voltage: 2 mV
• Input Bias Current: 100 nA
• Quiescent Current: 17 mA
• Operating Temperature: -40°C to +85°C
• Mounting Style: SMD (Surface Mount)
• Protections: Thermal Shutdown, Adjustable Current Limit, Output Disable

Package Includes

• 1 x OPA548F/500 High-Voltage High-Current Power Operational Amplifier TO-263-7

Note: Image is for representation purpose only.
