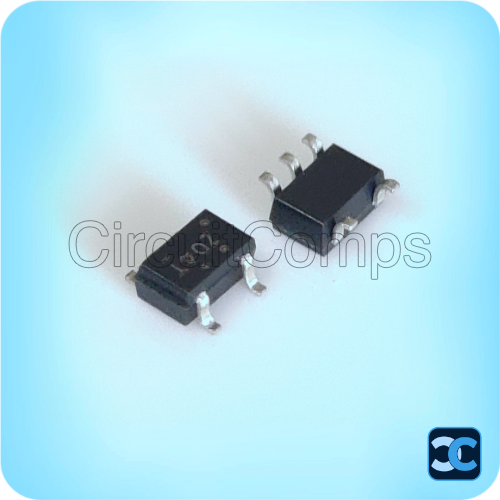

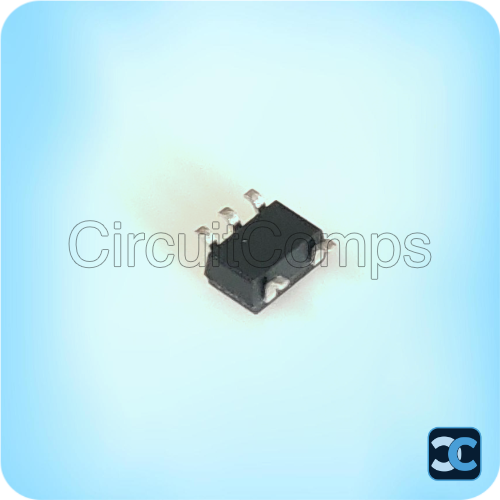

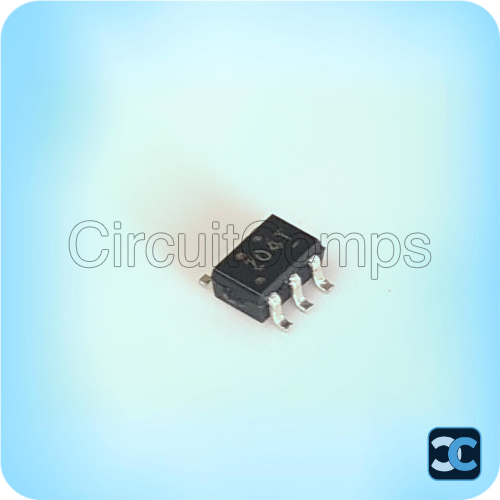

NC7SZ04P5X CMOS Inverter IC SC-70-5 onsemi TinyLogic

The NC7SZ04P5X from onsemi is a high-speed single CMOS inverter belonging to the TinyLogic series, designed for compact and low-power digital logic applications. It operates over a wide supply voltage range from 1.65V to 5.5V, making it suitable for modern low-voltage systems.

This inverter provides strong output drive capability with up to ±32mA output current, enabling reliable signal inversion and buffering in high-speed digital circuits. Its compact SC-70-5 surface-mount package allows efficient use of PCB space in portable and miniaturized electronics.

Common applications include signal inversion, logic level translation, microcontroller interfacing, timing circuits, and embedded system designs.

Package Includes:
1 x NC7SZ04P5X CMOS Inverter IC SC-70-5 onsemi TinyLogic

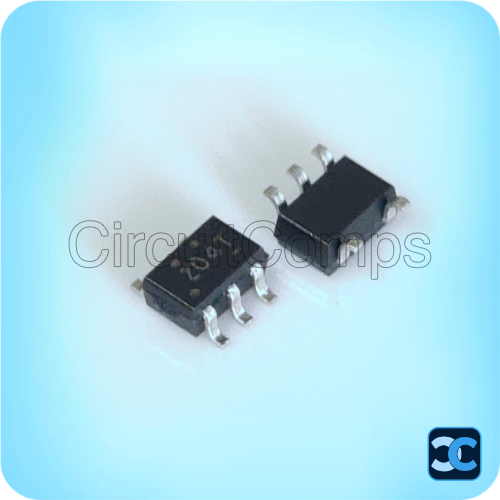

Note: Image is for representation purpose only.
