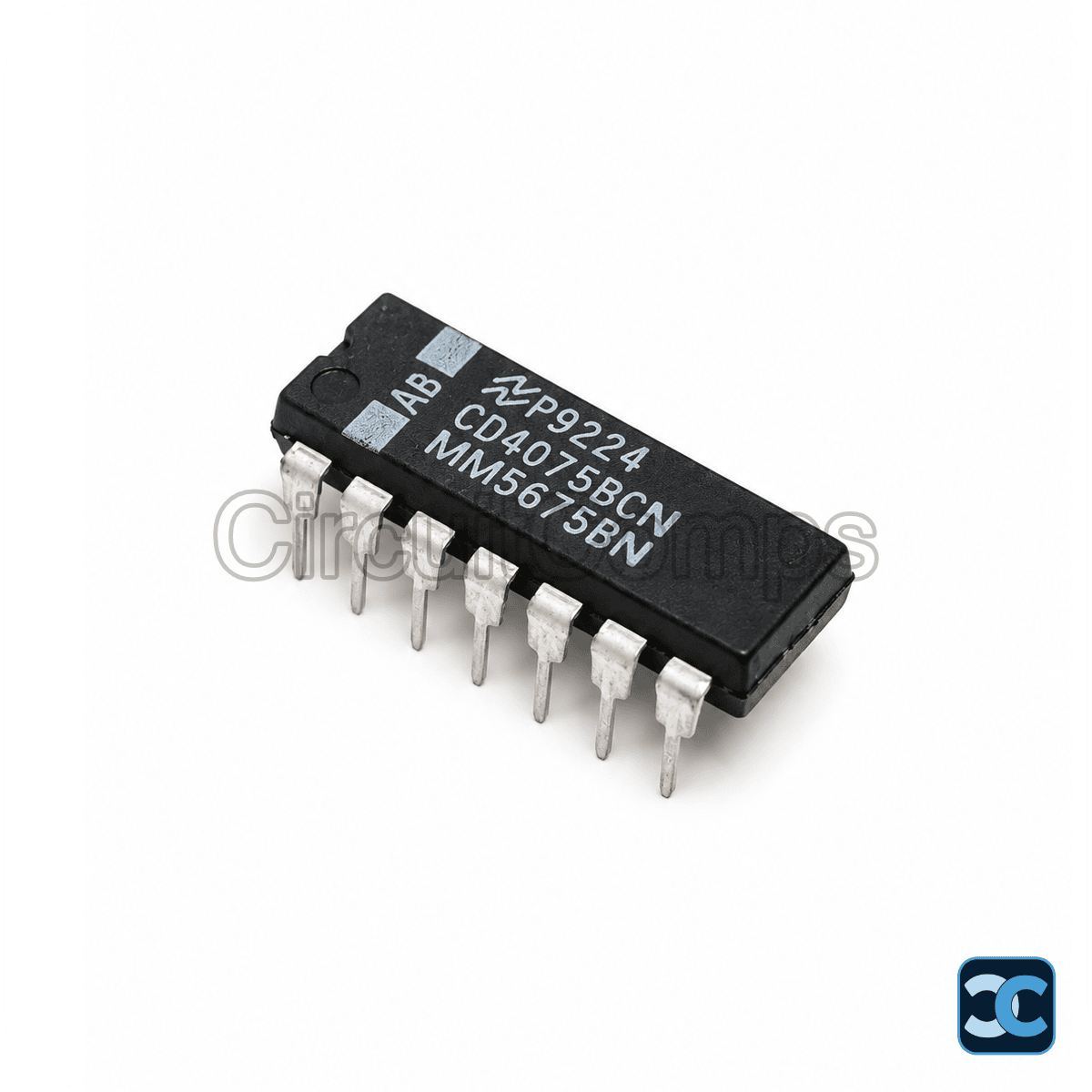

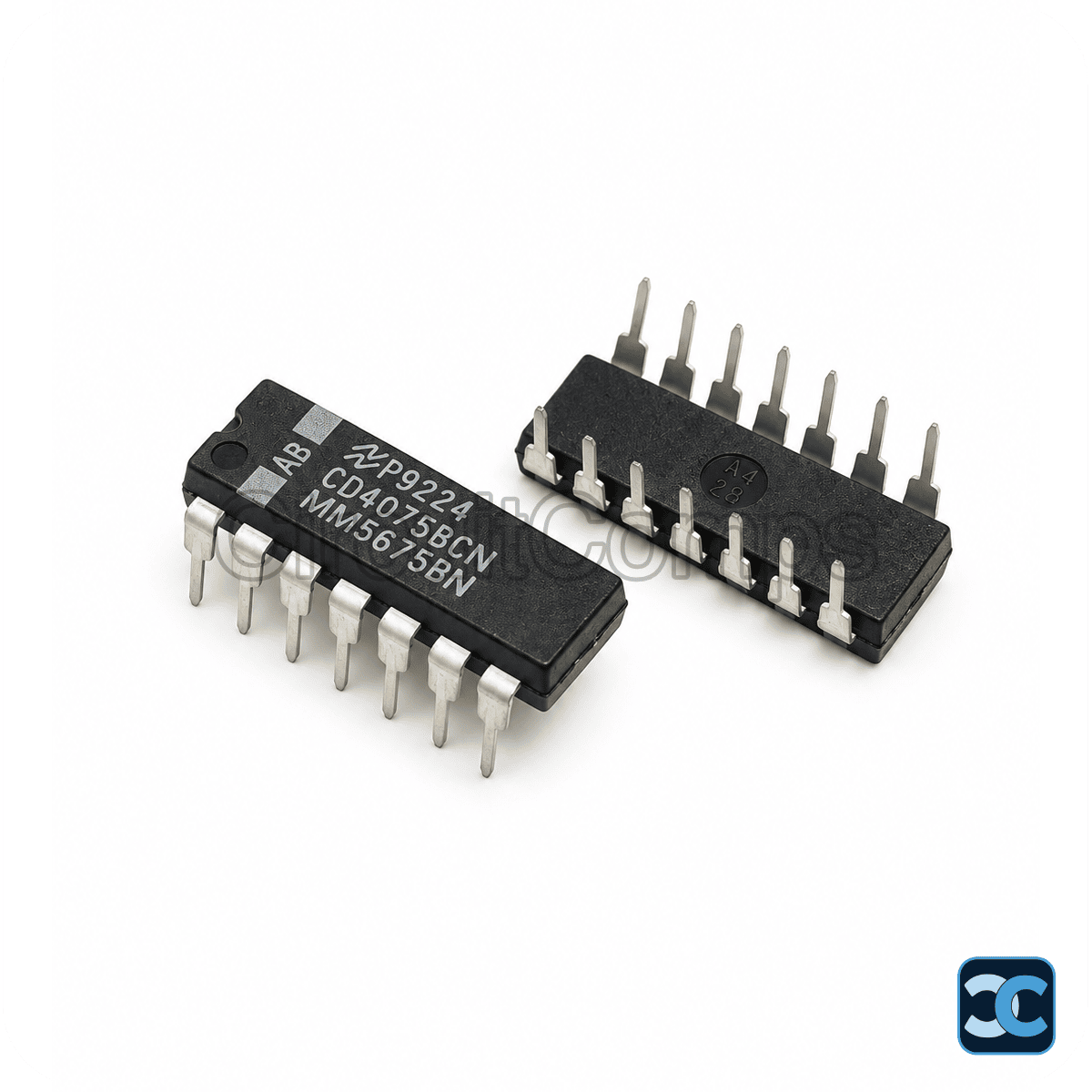

CD4075BCN Triple 3-Input OR Gate CMOS Logic IC DIP-14 Through Hole

The National Semiconductor CD4075BCN is a CMOS triple 3-input OR gate logic IC in a 14-pin DIP through-hole package. Featuring three independent 3-input OR gates, wide supply voltage range, and low power consumption typical of the CD4000 CMOS series, it is ideal for digital logic design, combinational logic circuits, signal processing, industrial control systems, and general-purpose gate expansion applications.

Key Specifications

• Manufacturer: National Semiconductor
• Manufacturer Part No.: CD4075BCN
• Logic Family: CD4000 CMOS
• Function: Triple 3-Input OR Gate
• Number of Gates: 3
• Number of Inputs per Gate: 3
• Number of Pins: 14
• Package: DIP-14 (Through Hole)
• RoHS Compliant: Yes

Package Includes

• 1 x Triple 3-Input OR Gate CMOS Logic IC DIP-14 Through Hole CD4075BCN

Note: Image is for representation purpose only.
