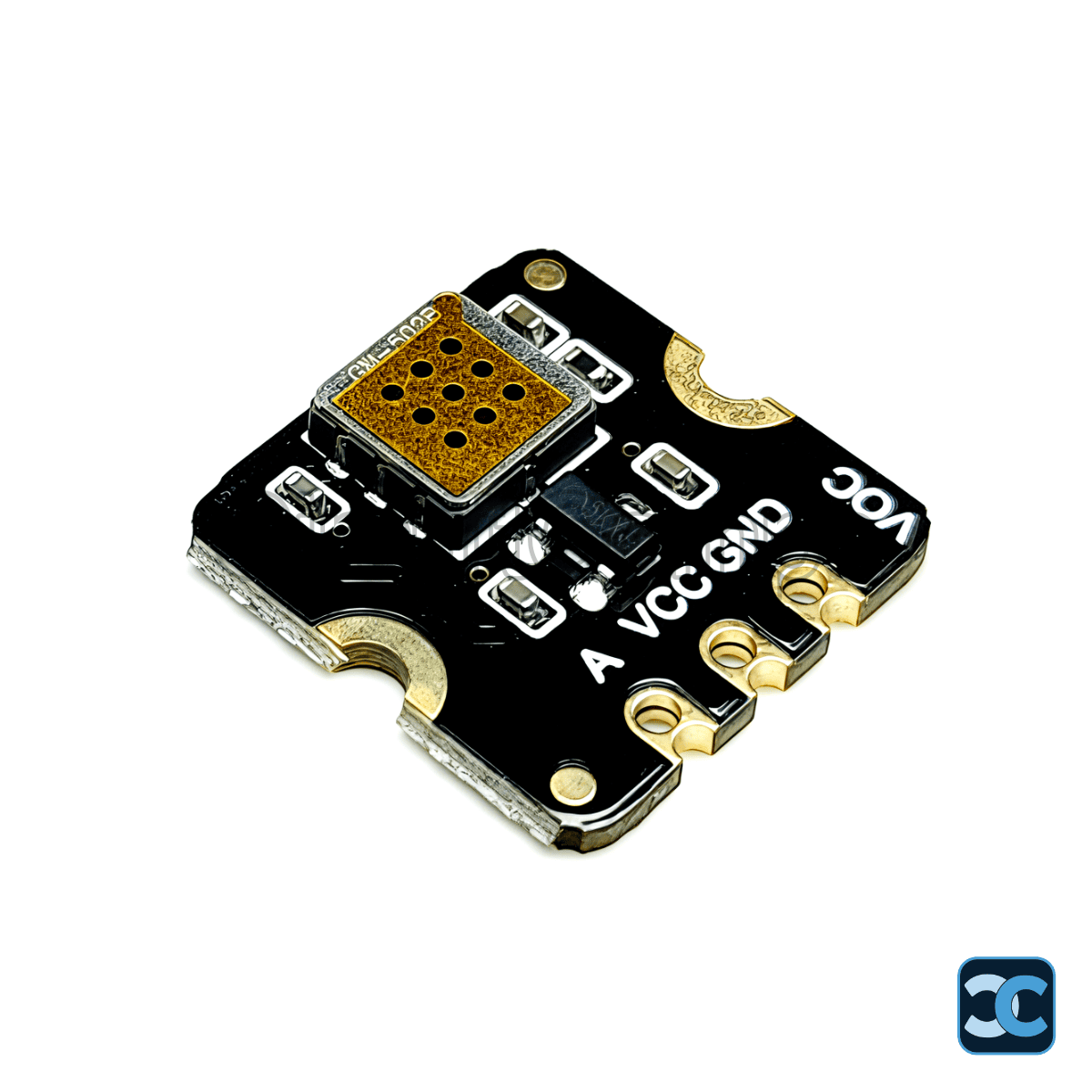

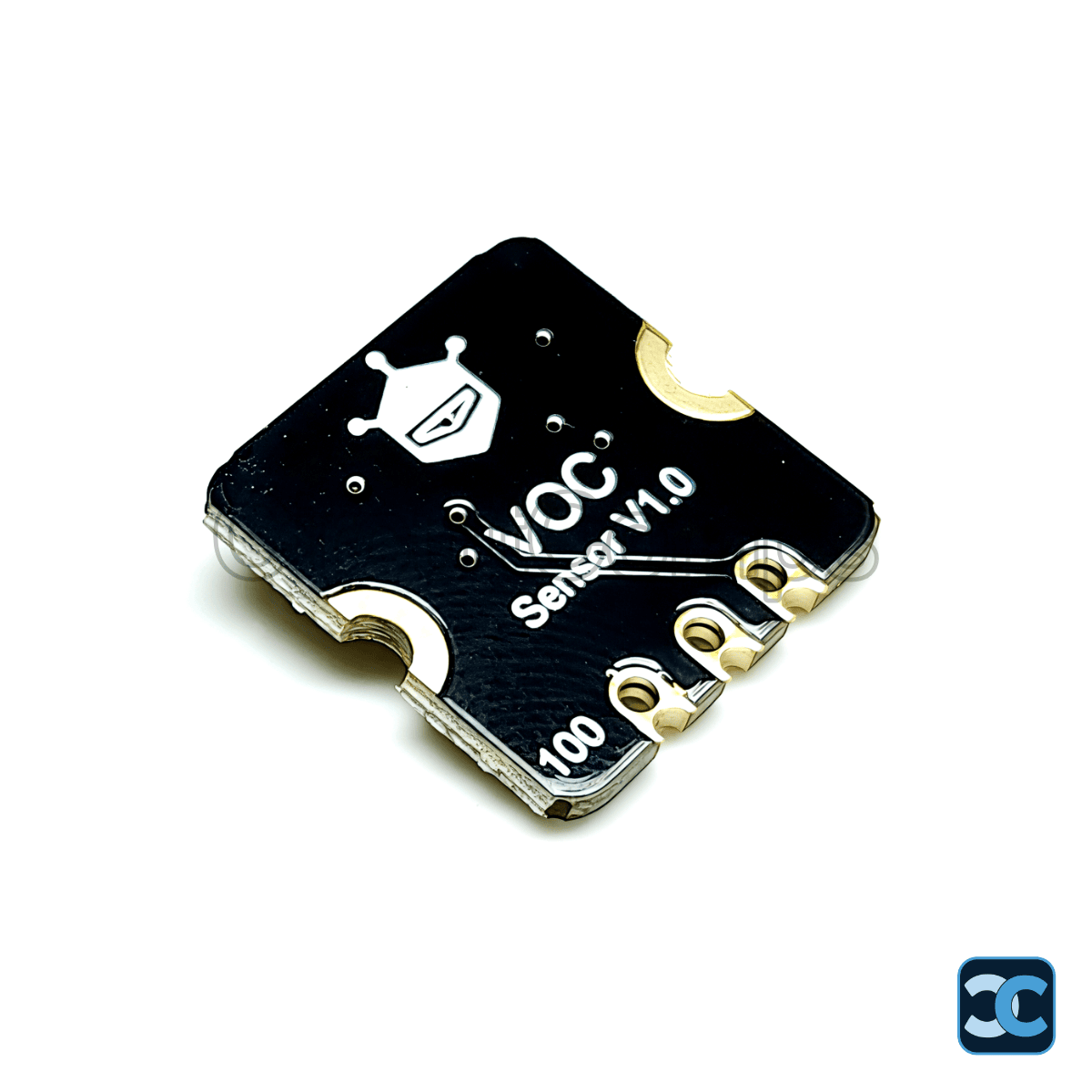

DFRobot Fermion MEMS VOC Gas Sensor Module 1–500ppm – Ethanol Formaldehyde Toluene

The DFRobot Fermion MEMS VOC Gas Sensor is a state-of-the-art detection module designed for qualitative monitoring of Volatile Organic Compounds (VOCs) including Ethanol, Formaldehyde, and Toluene. Utilizing advanced MEMS technology, it delivers high sensitivity across a 1–500 ppm range in an ultra-compact 13×13 mm footprint with low heat generation, rapid preheating, and a lifespan of ≥5 years in normal air conditions. Operating at under 20 mA, it is ideal for battery-powered environmental monitors, indoor air quality systems, industrial safety, and health tech applications.

Key Specifications

• Operating Voltage: 3.3 V – 5 V DC
• Operating Current: < 20 mA
• Detection Range: 1 – 500 ppm
• Gases Detected: VOCs – Ethanol, Formaldehyde (HCHO), Toluene, Tetrachloroethylene, Acetone, and similar organic vapors
• Output Signal: Analog Voltage
• Sensitivity: R0 (air) / Rs (150 ppm EtOH) ≥ 3
• Operating Temperature: −10°C to +50°C
• Dimensions: 13 × 13 × 2.5 mm
• Weight: ~1 g
• Technology: MEMS (Micro-Electro-Mechanical System)
• Sensor Lifespan: ≥ 5 years in normal air conditions
• Precaution – Initial Setup: Remove protective film before use; preheat for 24 hours after long storage
• Precaution – Avoid: Silicone vapors, corrosive gases (Cl2, H2S), water/condensation

Package Includes

• 1 x DFRobot Fermion MEMS VOC Gas Sensor Module

Note: Image is for representation purpose only.
