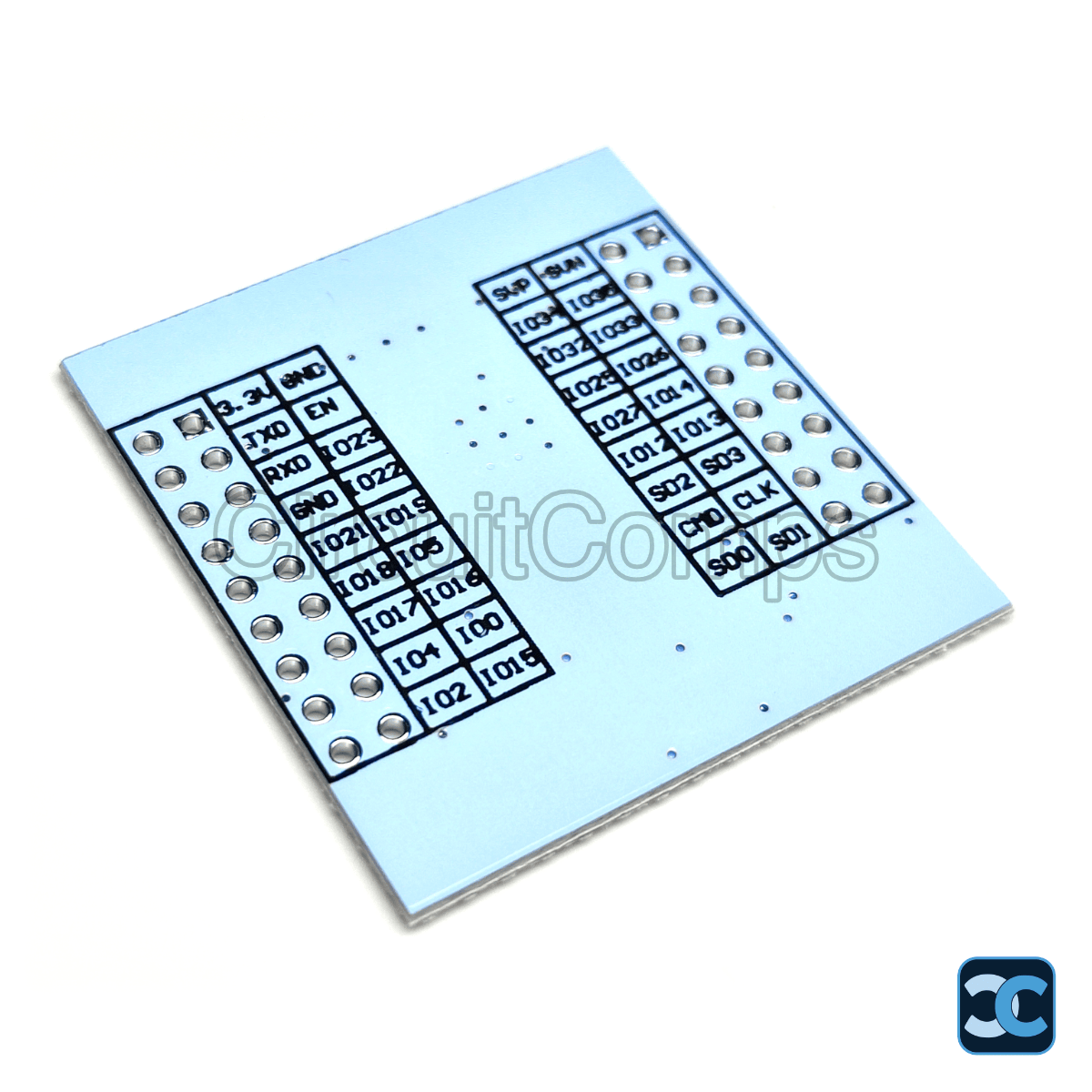

ESP32 ESP-WROOM-32 Adapter Breakout Board with Reset and Flash Buttons

Name: ESP32 ESP-WROOM-32 Adapter Breakout Board with Reset and Flash Buttons
Brand: Circuitcomps
SKU: CC-001135
Price: 28.0 INR
Availability: InStock

Product SKU: CC-001135

Available:

Only 5 items in stock

5 items in stock

In stock

Pre-order

Out of stock

Manufacturer Part No.

CC-001135
Device Type

ESP32 Adapter Breakout Board
Compatible Modules

ESP-32F, ESP-32S, ESP-WROOM-32
Pin Pitch

2.54 mm (breadboard-friendly)
Onboard Buttons

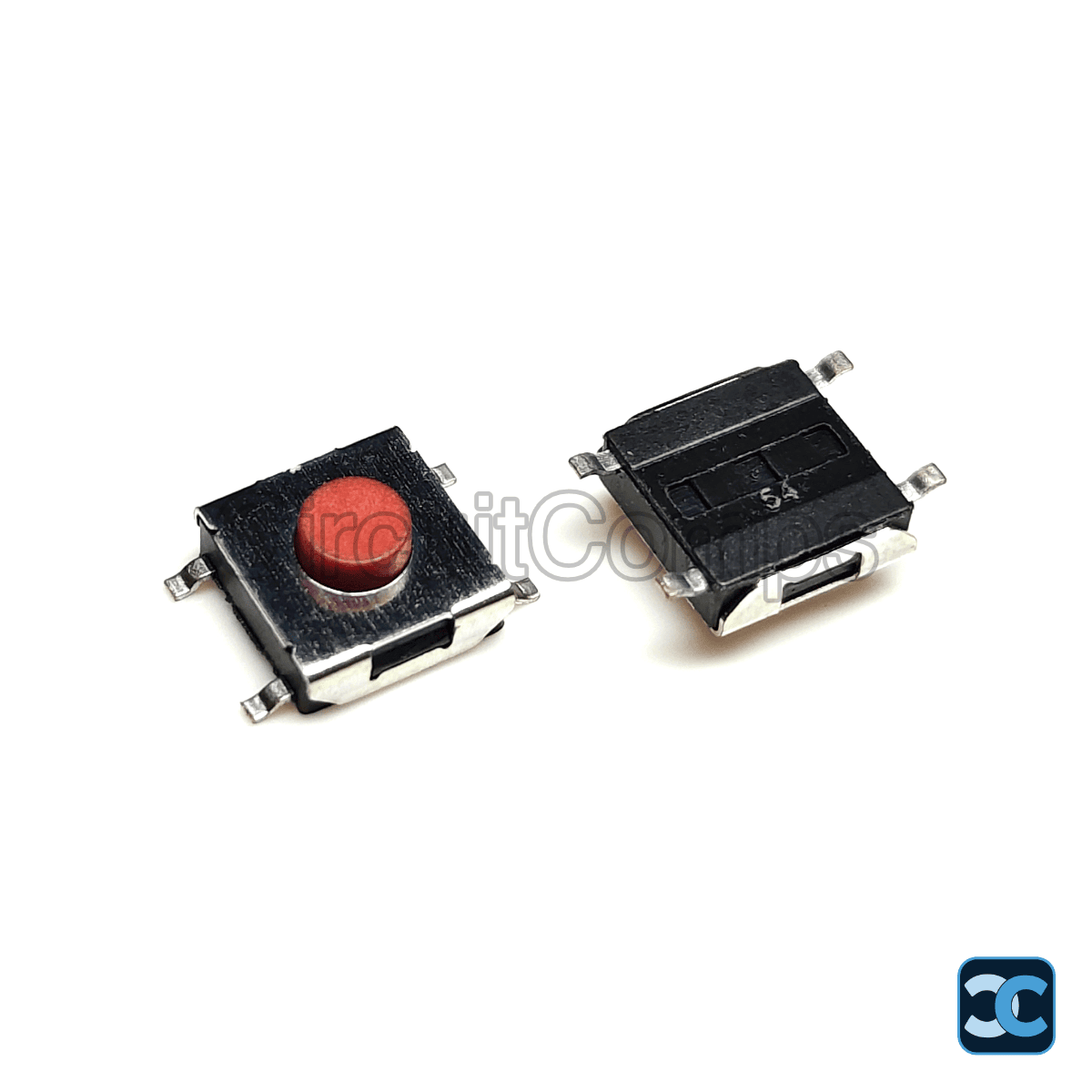

Reset (EN), Flash (IO0)
Programming Interface

USB-to-Serial (TX/RX)
Header Type

Double-row Berg pins (unsoldered, included)
Module Included

No
Operating Function

Converts ESP32 module fine-pitch pins to 2.54mm pitch for breadboard and prototype use
Applications

ESP32 development, breadboard prototyping, IoT projects, Wi-Fi/Bluetooth applications, embedded system development, firmware programming, Arduino IDE, ESP-IDF, educational electronics
Suitable For

ESP-32F, ESP-32S, ESP-WROOM-32 modules; developers using Arduino IDE or ESP-IDF
Features

Onboard Reset and Flash buttons, breadboard-compatible 2.54mm pitch, unsoldered Berg headers, easy USB-to-Serial programming
Function

Simplifies ESP32 module prototyping, programming, and debugging by providing breadboard-friendly pin access and onboard control buttons
Note

A 4.7KΩ–20KΩ pull-up resistor (12KΩ recommended) required between EN pin and 3.3V for proper operation

Rs. 28.00

~~Rs. 30.00~~

Description
Specifications
Reviews

The ESP32 ESP-WROOM-32 Adapter Breakout Board is a practical development accessory designed to simplify prototyping and programming of ESP-32F, ESP-32S, and ESP-WROOM-32 wireless modules. It converts the module's fine-pitch pins into standard 2.54mm spacing, allowing easy use with breadboards, jumper wires, and prototype PCBs.

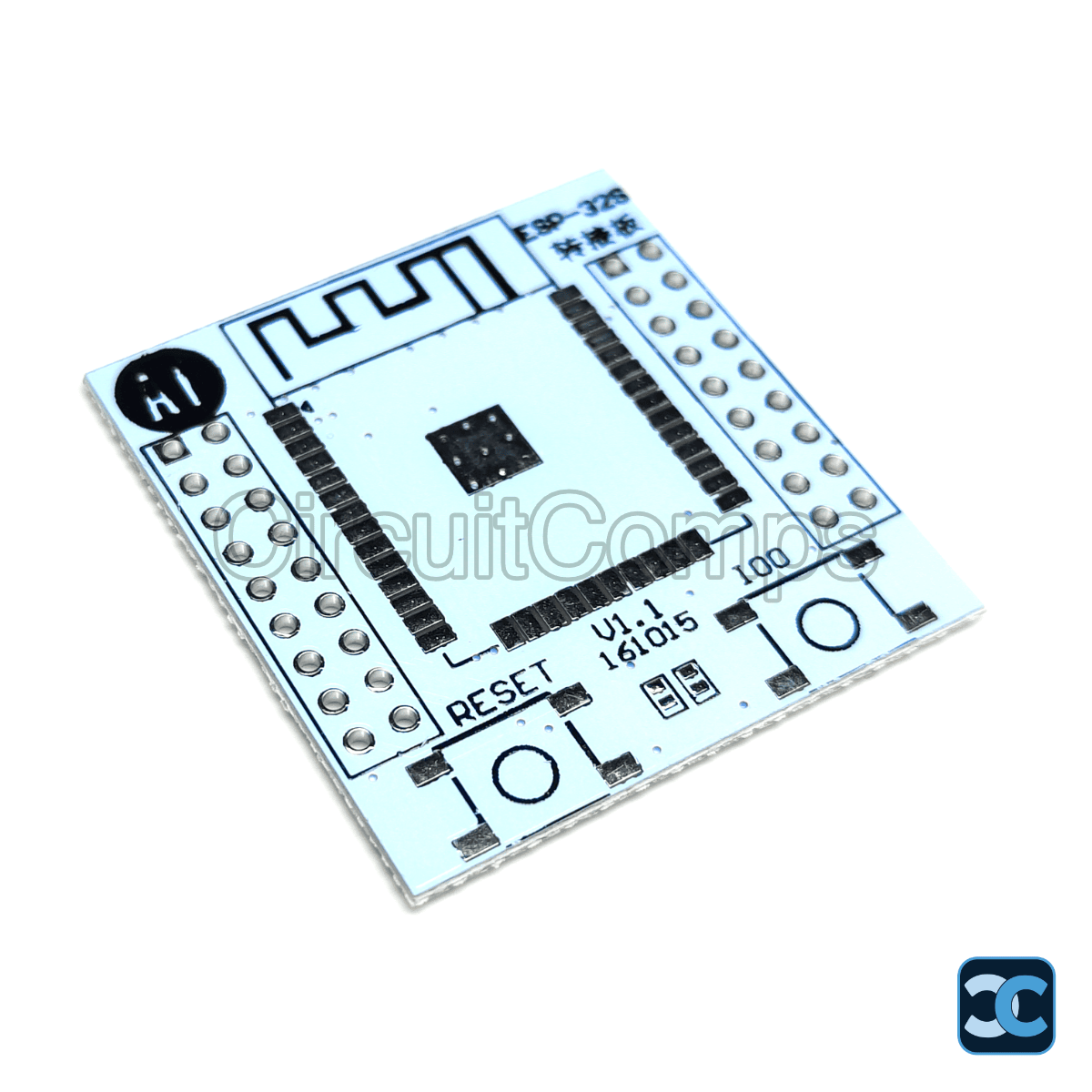

The board includes dedicated Reset (EN) and Flash (IO0) buttons, making firmware uploading and debugging quick and convenient. Compatible with Arduino IDE, ESP-IDF, and other ESP32 development environments. Includes unsoldered double-row Berg pin headers and switches for flexible assembly. Note: ESP32 module is not included.

Key Specifications

Compatible Modules: ESP-32F, ESP-32S, ESP-WROOM-32
Pin Pitch: 2.54 mm (breadboard-friendly)
Onboard Buttons: Reset (EN), Flash (IO0)
Programming Interface: USB-to-Serial (TX/RX)
Header Type: Double-row Berg pins (unsoldered)
Module Included: No

Important Notes

ESP32 Wi-Fi/Bluetooth module is not included.
A 4.7KΩ to 20KΩ pull-up resistor should be connected between the EN pin and 3.3V for proper operation (12KΩ recommended).
Use the IO0 (Flash) button to enter firmware download mode and the Reset button to restart the module during programming.

Package Includes

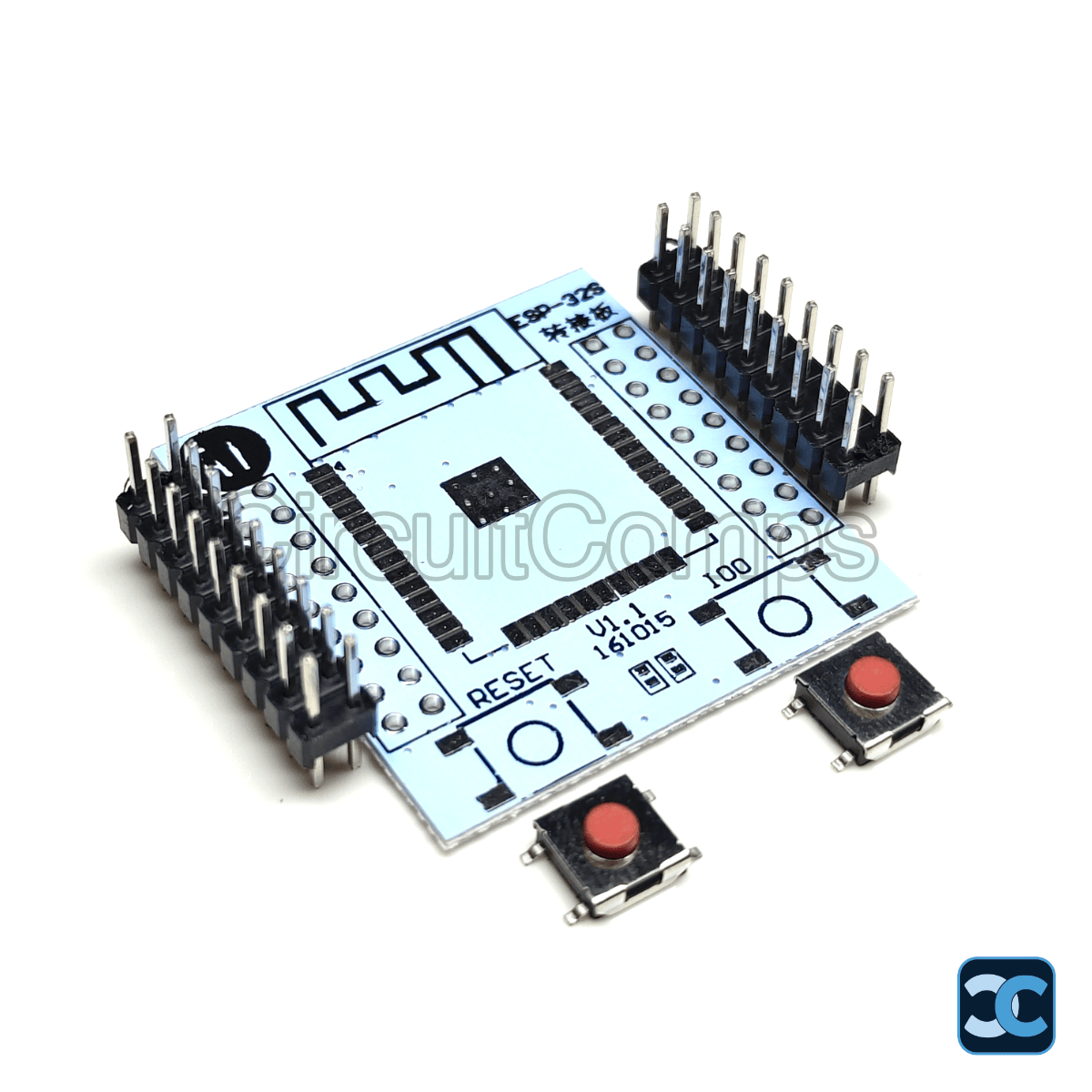

1 x ESP32 ESP-WROOM-32 Adapter Breakout Board

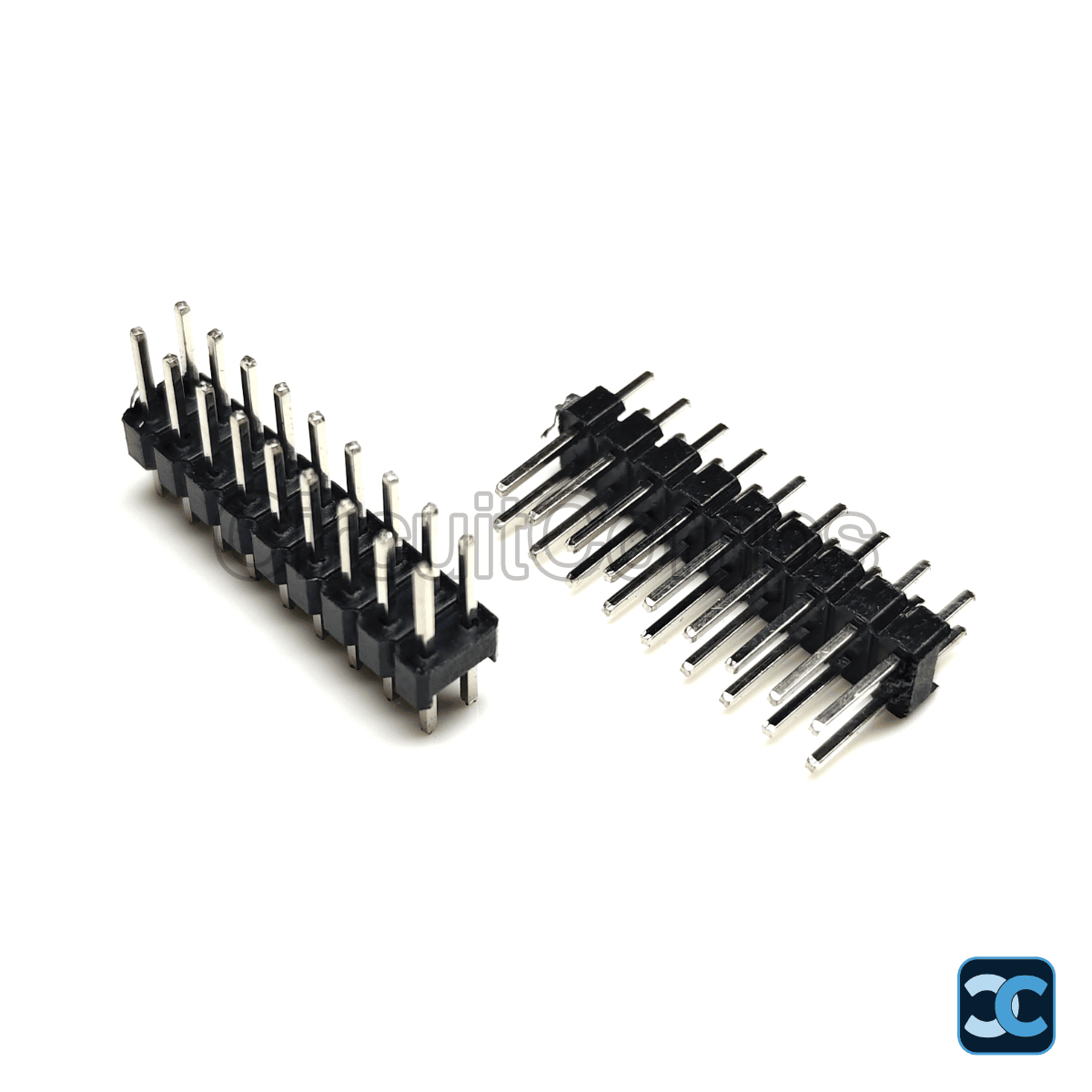

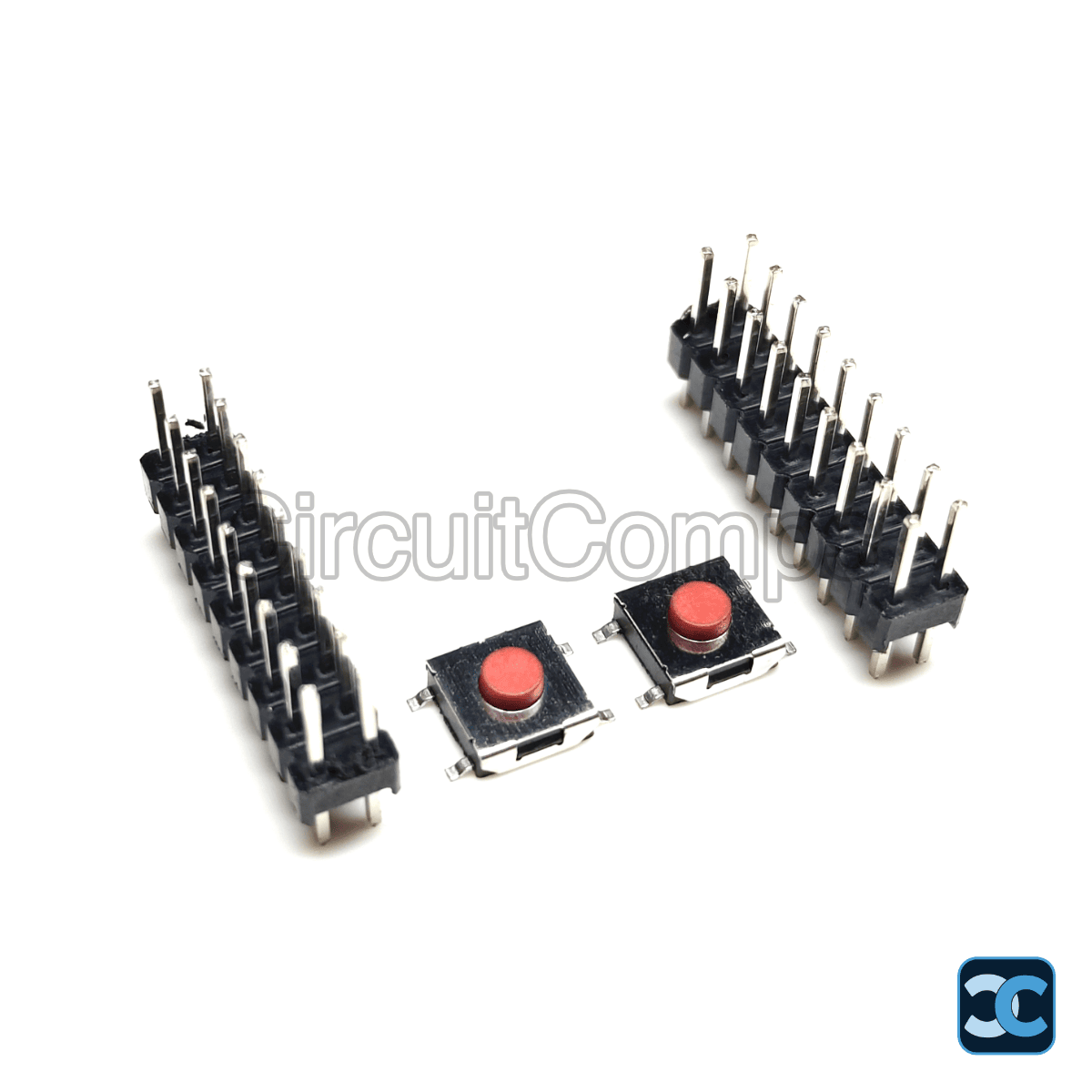

1 x Set of Unsoldered Double-Row Berg Pin Headers and Push Buttons

Note: Image is for representation purpose only.
