⚡ SR560 -60V 5A Schottky Barrier Rectifier Diode – DO-201AD | Hornby Electronics
The SR560 Schottky Barrier Rectifier Diode by Hornby Electronics delivers high-speed switching and low forward voltage drop, making it ideal for power rectification in high-efficiency DC circuits. Housed in a robust DO-201AD package, this diode is capable of handling up to 5A average forward current and a peak surge current of 150A, ensuring reliable performance in demanding environments.
Its fast recovery time and low thermal resistance make it suitable for use in switching power supplies, polarity protection, freewheeling, and reverse battery protection.
✅ Key Features
-
Recurrent Peak Reverse Voltage: 60V
-
Average Forward Rectified Current: 5A
-
Peak Forward Surge Current: 150A
-
Low Forward Voltage Drop: 0.7V max
-
Reverse Current: 2.0mA max at 60V
-
Fast Switching: Reverse recovery time of 250ns
-
Package Type: DO-201AD
-
Operating Temperature Range: -55°C to +150°C
-
Thermal Resistance: 25°C/W (typical)
-
Junction Capacitance: 380pF (typical)
📦 Package Includes
-
1 × SR560 -60V 5A Schottky Barrier Rectifier Diode (Hornby - DO-201AD)
🔧 Applications
-
Switching power supplies
-
Polarity and reverse battery protection
-
Freewheeling diode for inductive loads
-
High-efficiency rectification circuits
-
Power inverters and converters

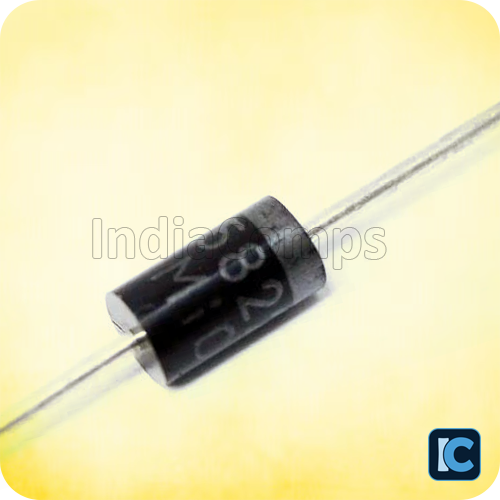

Image is for representation purpose only.
