SR560 -60V 5A Schottky Barrier Rectifier Diode – DO-201AD
- Description
- Reviews
The SR560 Schottky Barrier Rectifier Diode is rated for 5A average forward current and 60V reverse voltage, offering low forward voltage drop (0.7V max) and fast switching performance. Designed for high-efficiency rectification, it supports peak surge current up to 150A, making it suitable for demanding power applications.
Housed in a durable DO-201AD axial package, the SR560 is ideal for switching power supplies, DC-DC converters, freewheeling circuits, polarity protection, and battery protection systems. Its low thermal resistance and fast recovery characteristics ensure stable and reliable performance.
Key Specifications:
Model: SR560
Recurrent Peak Reverse Voltage (VRRM): 60V
Average Forward Current (IF): 5A
Peak Surge Current: 150A
Forward Voltage Drop (VF): 0.7V max
Reverse Recovery Time: 250ns
Package: DO-201AD (Axial Lead)
Operating Temperature: -55°C to +150°C
Package Includes:
1 x SR560 60V 5A Schottky Rectifier Diode DO-201AD

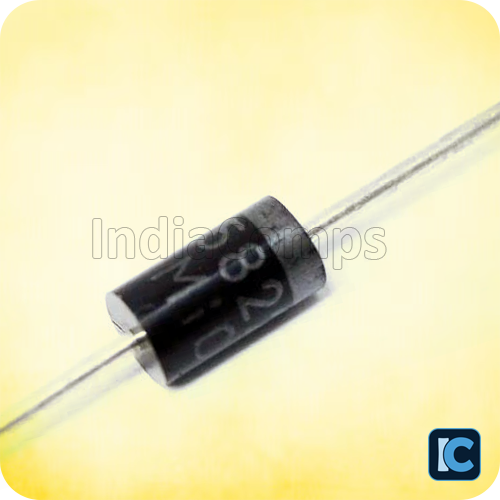

Note: Image is for representation purpose only.
