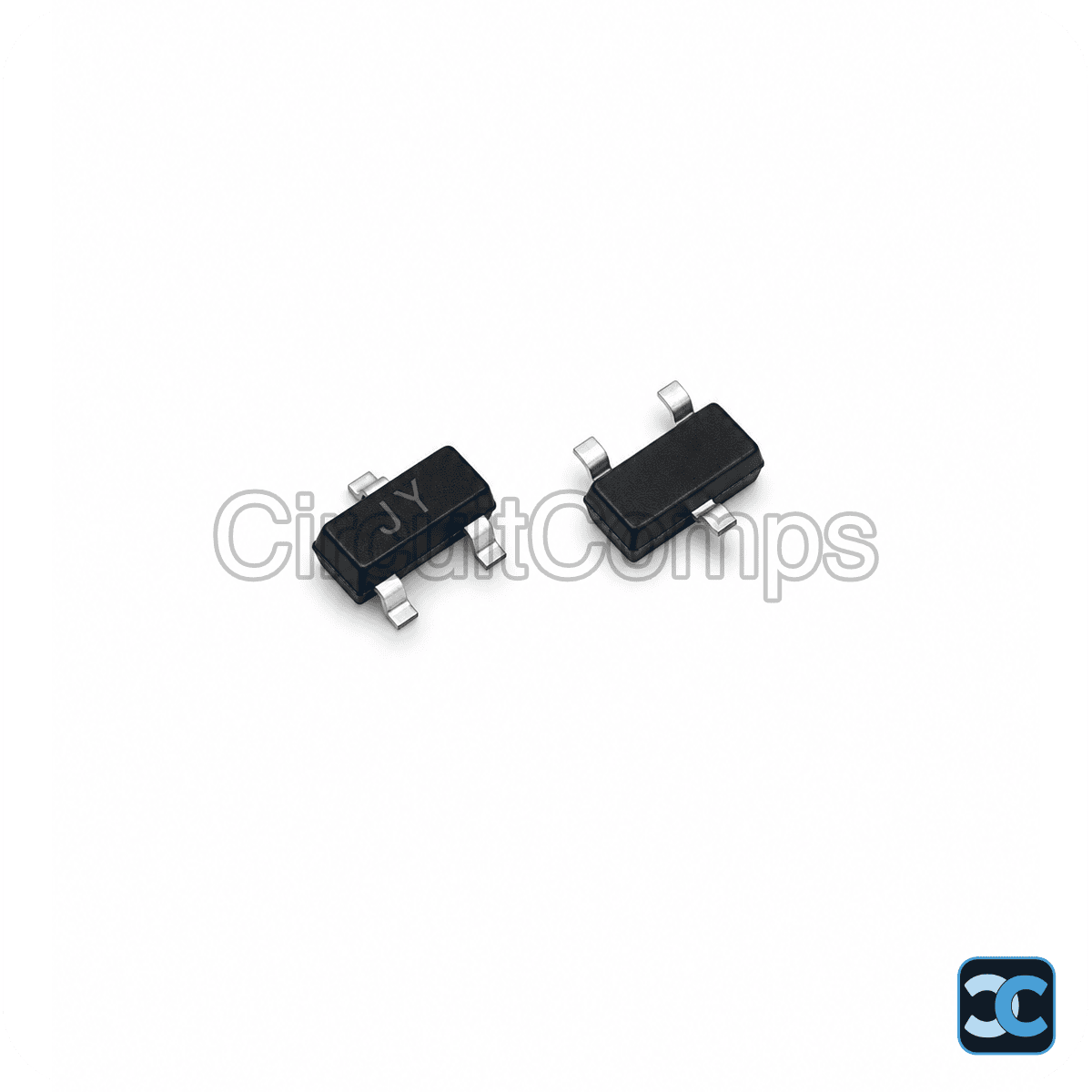

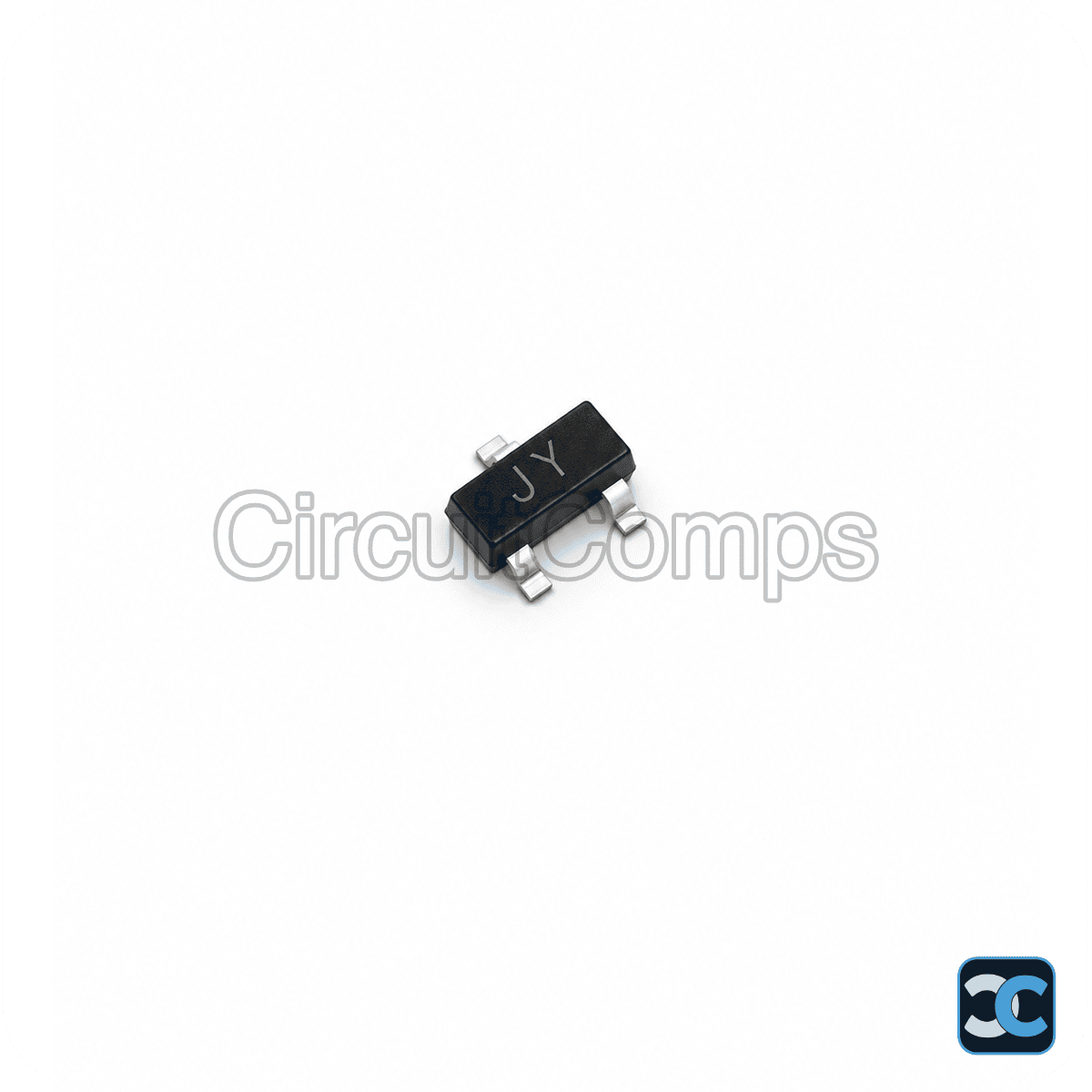

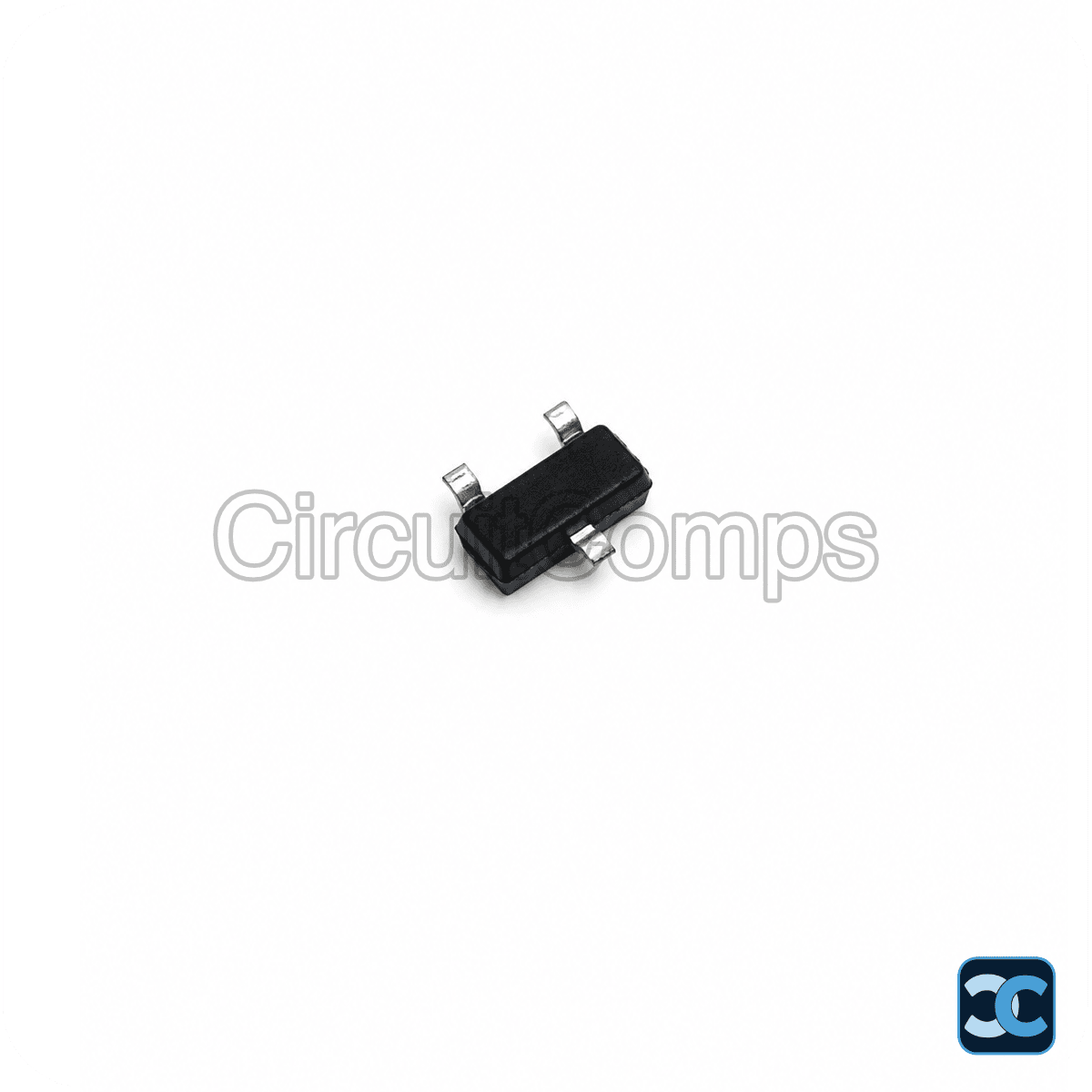

BAV199 85V 160mA Switching Diode SOT-23 SMD Slkor

The Slkor BAV199 is a fast-switching small signal diode in a compact SOT-23 SMD package, rated at 85V peak reverse voltage and 160mA rectified current. With a 1.25V forward voltage, 3µs reverse recovery time, and ultra-low 5nA reverse leakage, it is ideal for high-speed switching circuits, digital logic, RF signal detection, freewheeling diodes, and precision analog circuit applications.

Key Specifications

• Manufacturer: Slkor
• Manufacturer Part No.: BAV199
• Type: Switching Diode
• Peak Reverse Voltage: 85V
• Rectified Current: 160 mA
• Forward Voltage (Vf): 1.25V
• Reverse Recovery Time: 3 µs
• Reverse Leakage: 5 nA
• Package: SOT-23 (SMD)
• Operating Temperature: -65°C to +150°C
• RoHS Compliant: Yes

Package Includes

• 1 x 85V 160mA Switching Diode SOT-23 SMD Slkor

Note: Image is for representation purpose only.
