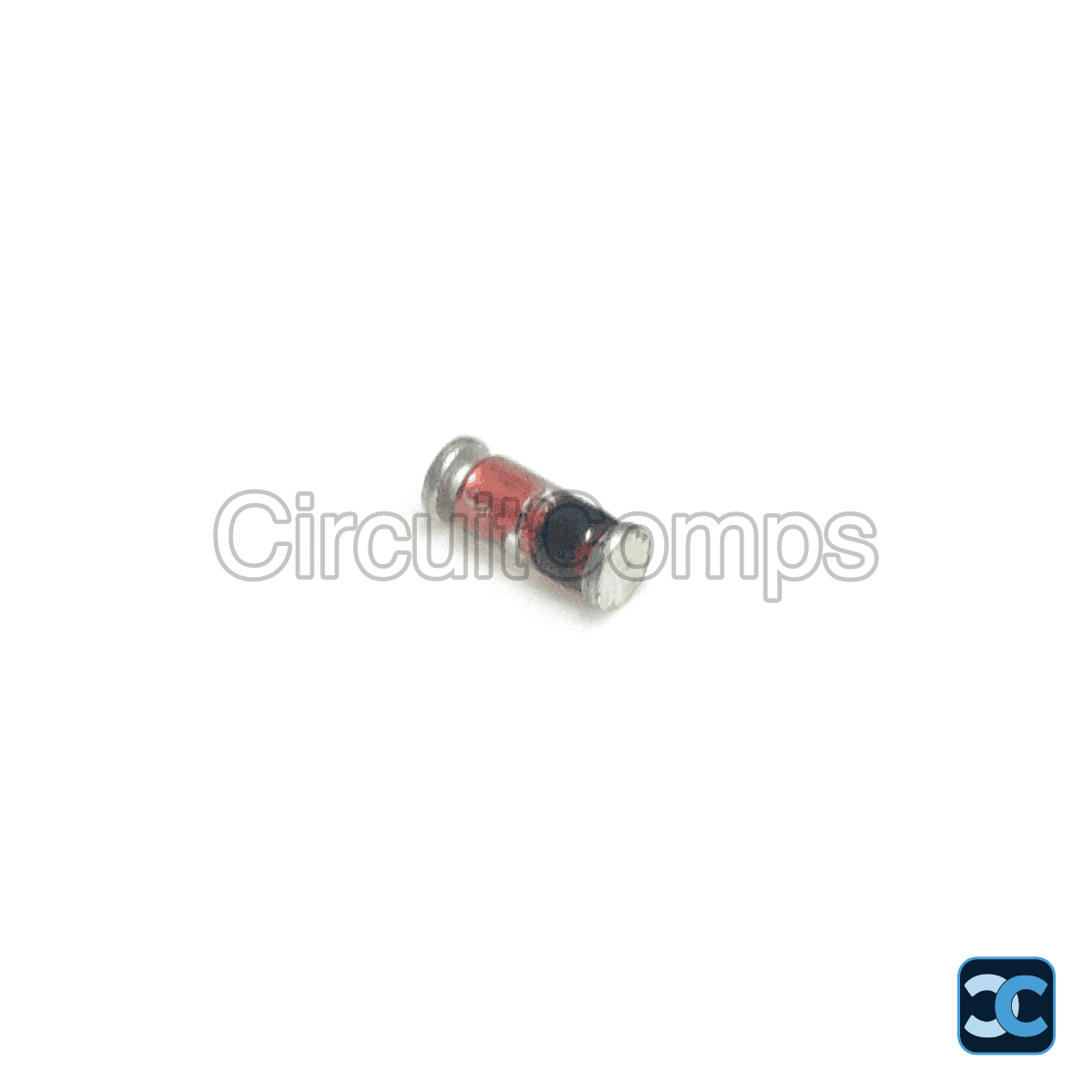

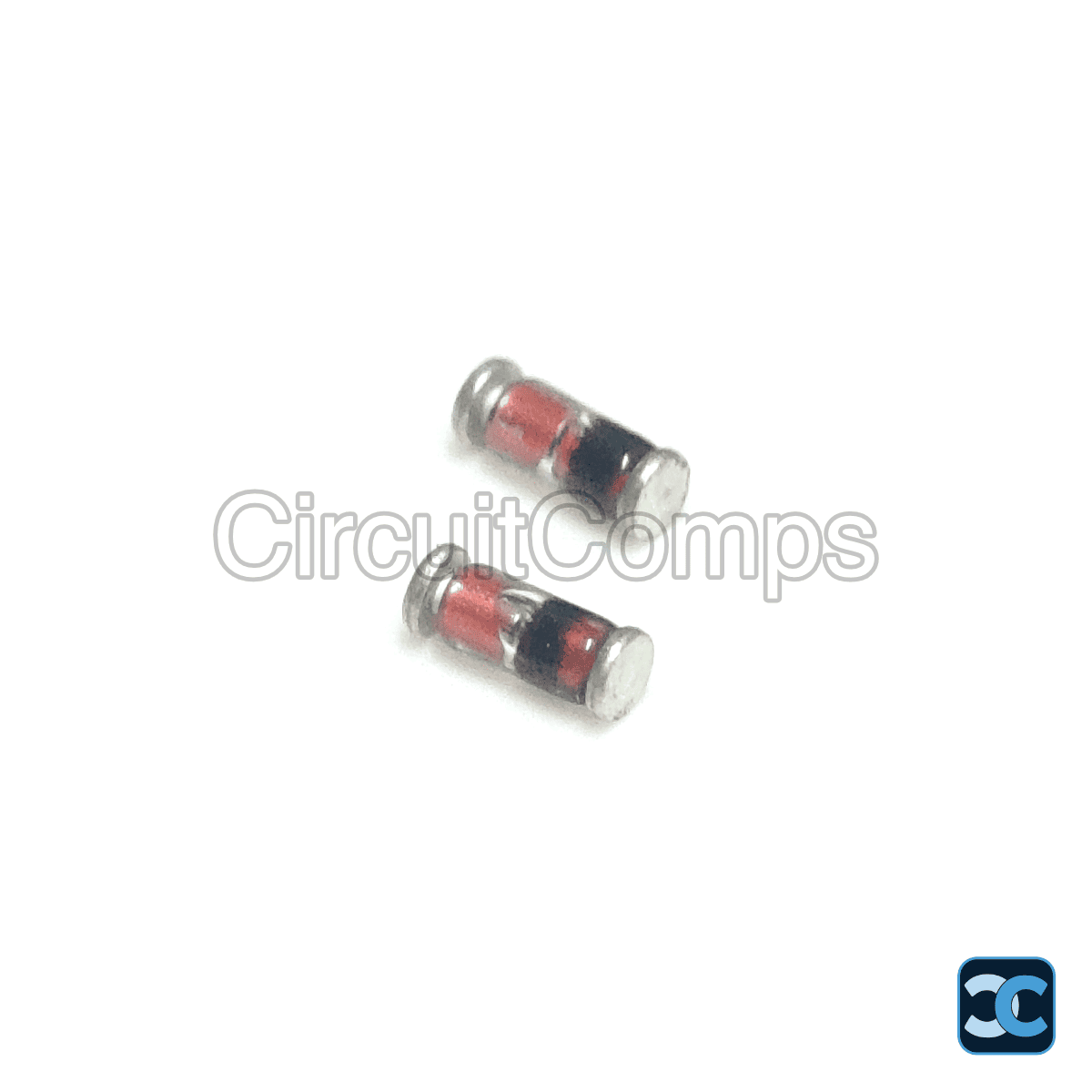

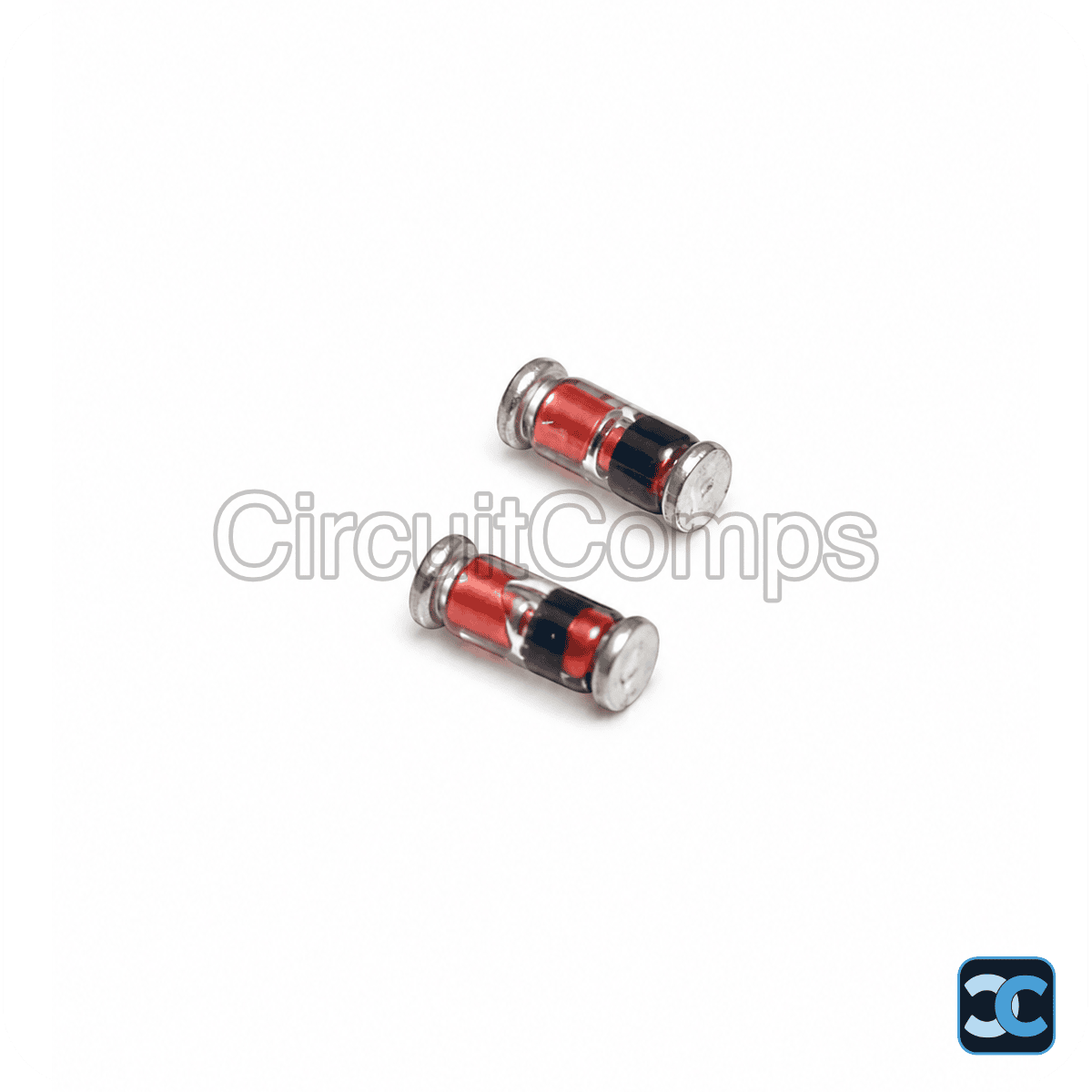

100V 150mA Fast Switching Diode SOD-80 MELF SMD LL4148

The LL4148 is a fast switching diode in a compact SOD-80 (MELF) SMD package — the surface-mount equivalent of the popular 1N4148. With a 100V peak reverse voltage, 150mA forward current, 0.5W power rating, and an ultra-fast switching speed of ≤4ns, it is ideal for high-speed switching circuits, logic circuits, signal clamping, RF applications, and precision analog designs requiring low forward voltage and very small conduction losses.

Key Specifications

• Manufacturer Part No.: LL4148
• Type: Fast Switching Diode
• Package: SOD-80 / MELF (SMD)
• Peak Reverse Voltage: 100V
• Forward Current: 150 mA
• Repetitive Peak Forward Current: 450 mA
• Power Dissipation: 0.5W
• Switching Speed: ≤4 ns
• Equivalent: 1N4148 (SMD version)
• RoHS Compliant: Yes

Package Includes

• 1 x 100V 150mA Fast Switching Diode SOD-80 MELF SMD LL4148

Note: Image is for representation purpose only.
