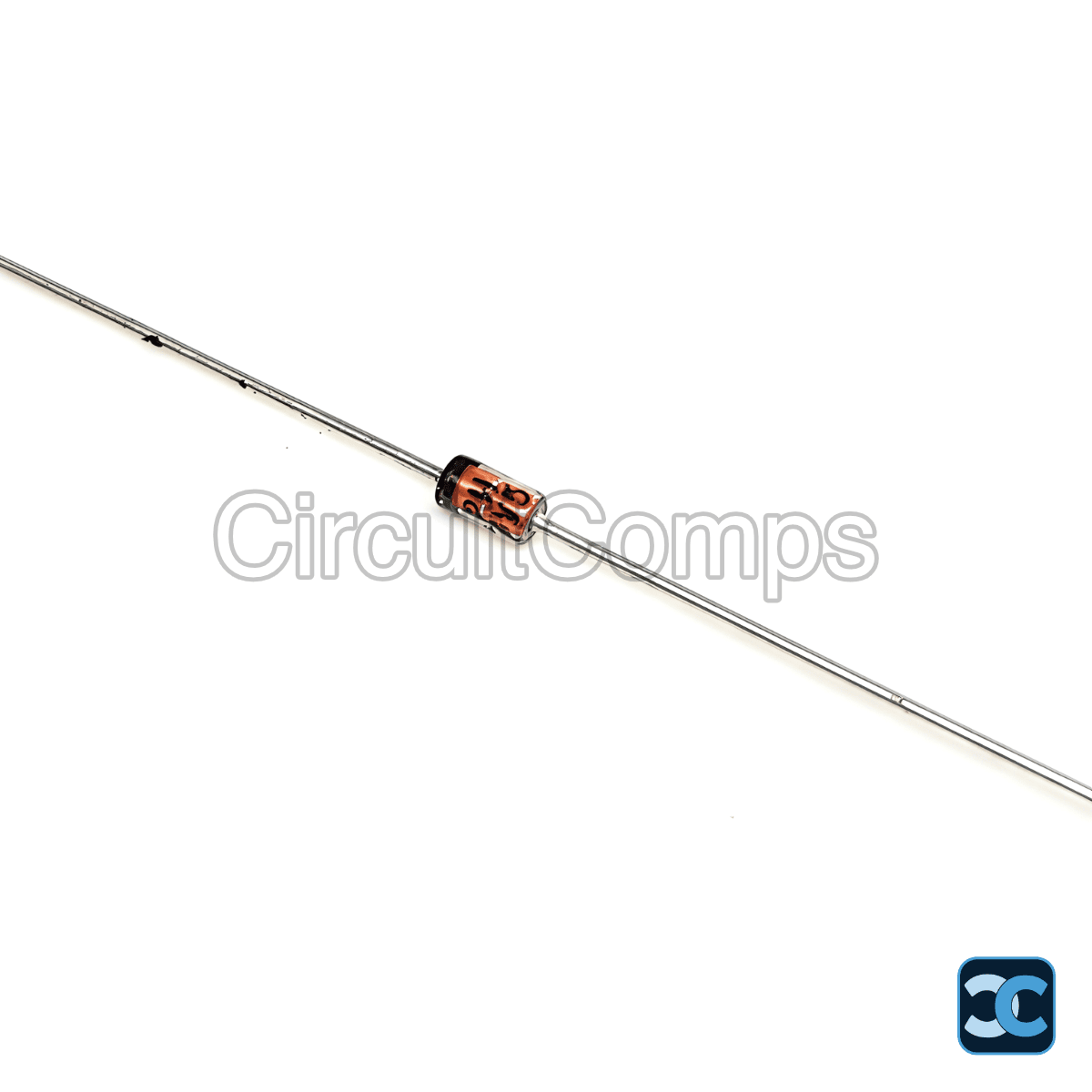

1N5236B 7.5V 500mW Zener Diode DO-35 Through Hole

The 1N5236B is a high-quality silicon planar power Zener diode with a 7.5V nominal Zener voltage and 500mW power dissipation, housed in the compact DO-35 axial through-hole package. With low Zener impedance of 5Ω, ±5% voltage tolerance, and a wide operating temperature range of -65°C to +200°C, it is ideal for voltage regulation, overvoltage protection, signal clipping, reference voltage generation, and surge protection in power supplies and sensitive electronic circuits.

Key Specifications

• Part Number: 1N5236B
• Type: Zener Diode (Silicon Planar)
• Zener Voltage: 7.5V
• Power Dissipation: 500mW (0.5W)
• Voltage Tolerance: ±5%
• Zener Impedance: 5 Ω
• Test Current: 20mA
• Package: DO-35 (Axial)
• Mounting Style: Through Hole
• Configuration: Single
• Operating Temperature: -65°C to +200°C

Package Includes

• 1 x 1N5236B 7.5V 500mW Zener Diode DO-35 Through Hole

Note: Image is for representation purpose only.
