- 1N5819W B5819W SOD123 (1206) 1A 40V Schottky Diode SMD 1N5819W B5819W SOD123 (1206) 1A 40V Schottky Diode SMD
8% Rs. 0.20
Circuitcomps

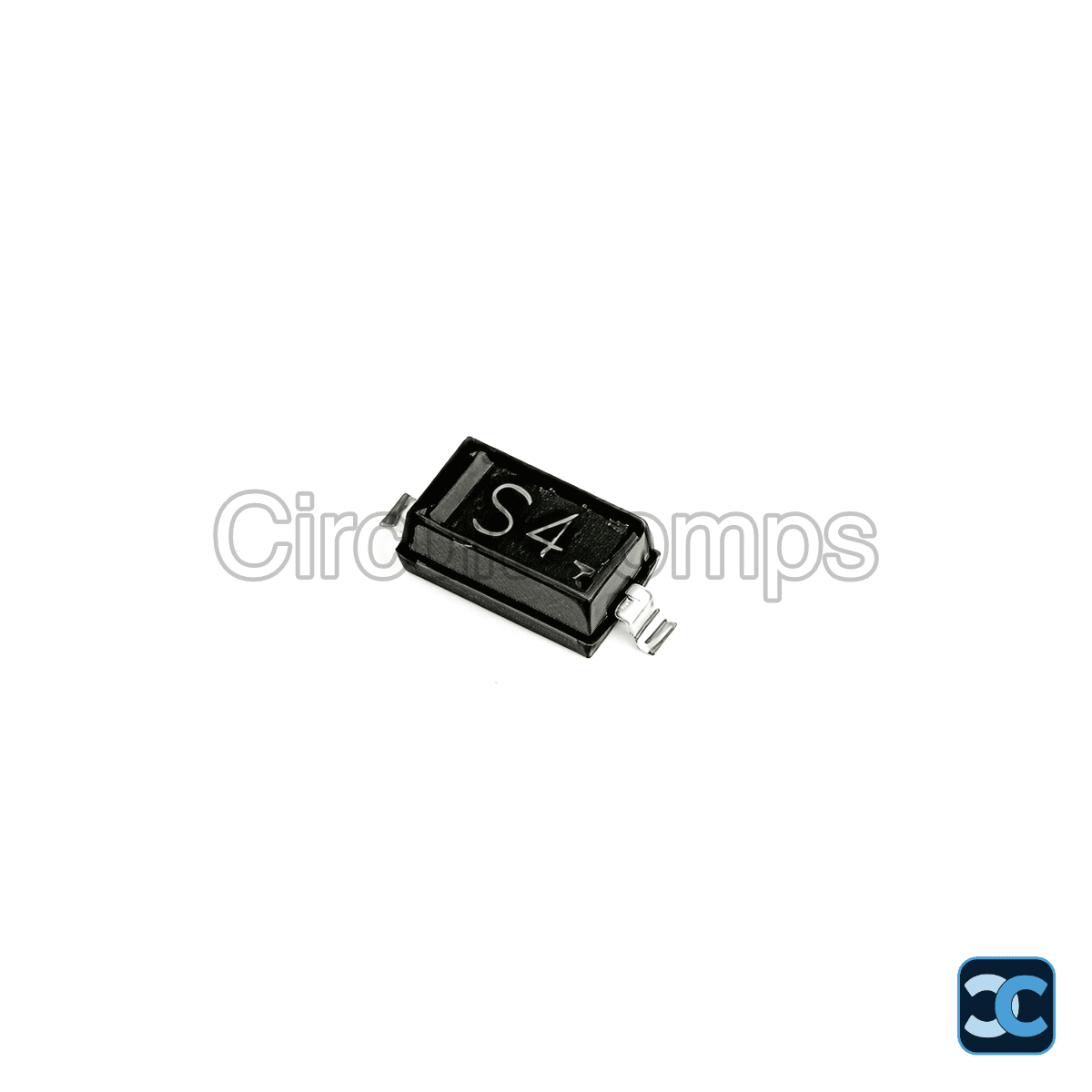

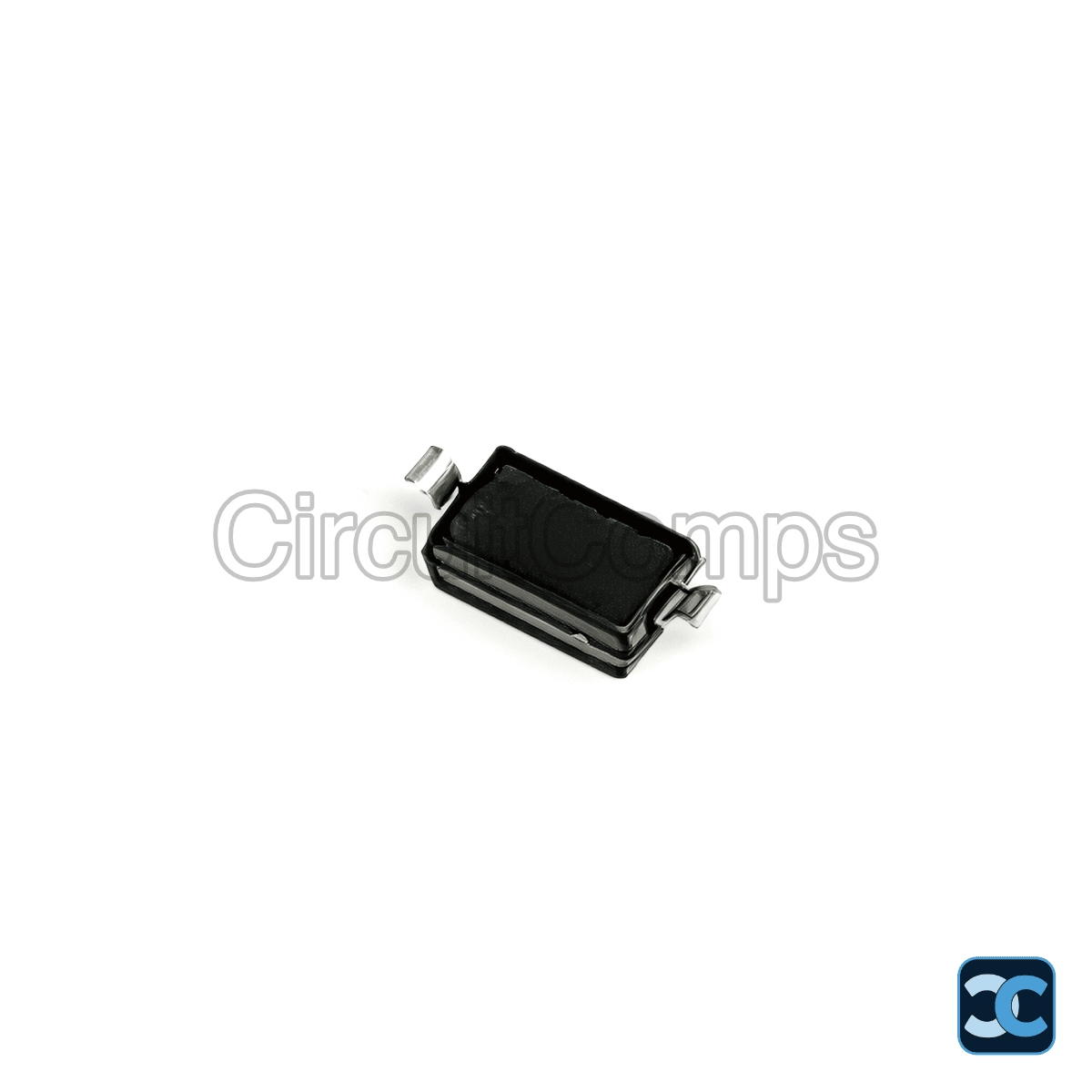

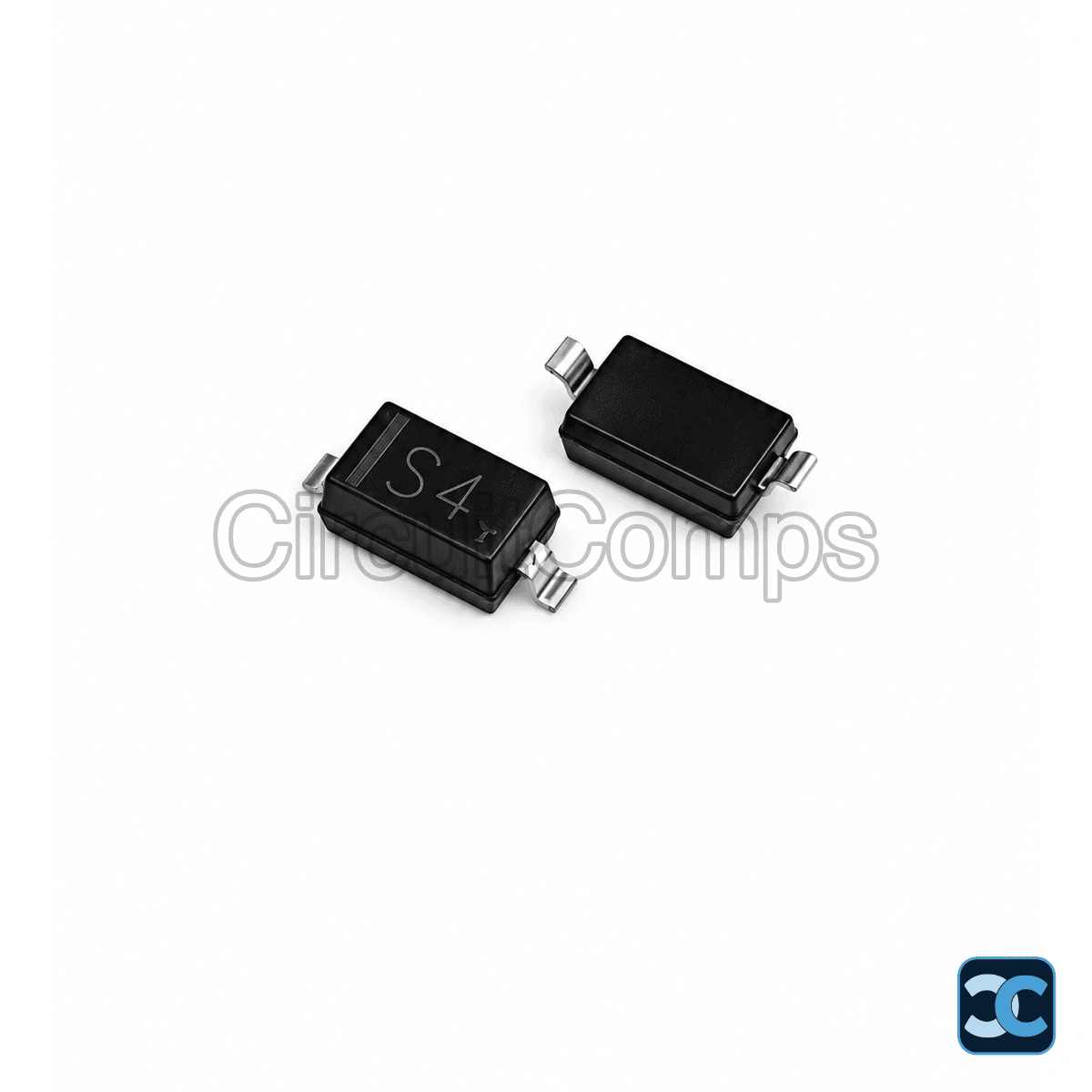

1N5819W B5819W SOD123 (1206) 1A 40V Schottky Diode SMD
No reviews
Product SKU: CC-001026
Available:
Only 47 items in stock
47 items in stock
In stock
Pre-order
Out of stock
Incoming: 0 more units expected on
Rs. 2.30
- Description
- Reviews
The 1N5819W (B5819W) is a high-efficiency SMD Schottky barrier diode in the compact SOD123 (1206) package, rated at 1A forward current and 40V reverse voltage. Its low forward voltage drop and fast switching characteristics make it the go-to choice for switching power supplies, AC to DC rectification, and polarity correction circuits in consumer electronics and embedded systems.
Key Specifications
- Part Number: 1N5819W / B5819W
- Type: Schottky Diode
- Package: SOD123 (1206)
- Forward Current (If): 1A
- Reverse Voltage (Vr): 40V
- Mounting Style: SMD (Surface Mount)
- Applications: Switching, AC to DC Rectification, Polarity Correction
Package Includes
- 1 x 1N5819W B5819W SOD123 (1206) 1A 40V Schottky Diode SMD
Note: Image is for representation purpose only.
