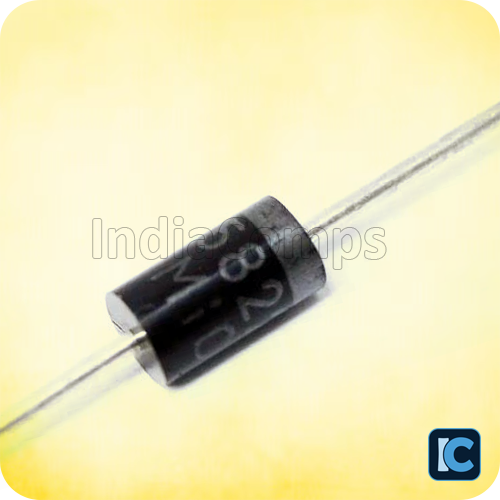

1N5822 – 3A Schottky Barrier Rectifier Diode (DO-201AD, Through-Hole)
- Description
- Reviews
The 1N5822 is a high-efficiency Schottky rectifier diode designed for low-voltage, high-current applications. With a forward current rating of 3A and reverse voltage of 40V, it is ideal for power supplies, DC-DC converters, battery chargers, and protection circuits.
Utilizing Schottky barrier technology, this diode offers very low forward voltage drop, reducing power loss and heat generation while improving overall system efficiency. Its fast switching characteristics and negligible reverse recovery time make it suitable for high-frequency applications such as switching regulators and inverters.
Housed in a robust DO-201AD axial package, the 1N5822 provides excellent thermal performance and high surge current capability, ensuring reliable operation in demanding environments including automotive and industrial systems.
Package Includes:
1 x 1N5822 Schottky Rectifier Diode 3A 40V DO-201AD Axial
Note: Image is for representation purpose only.
