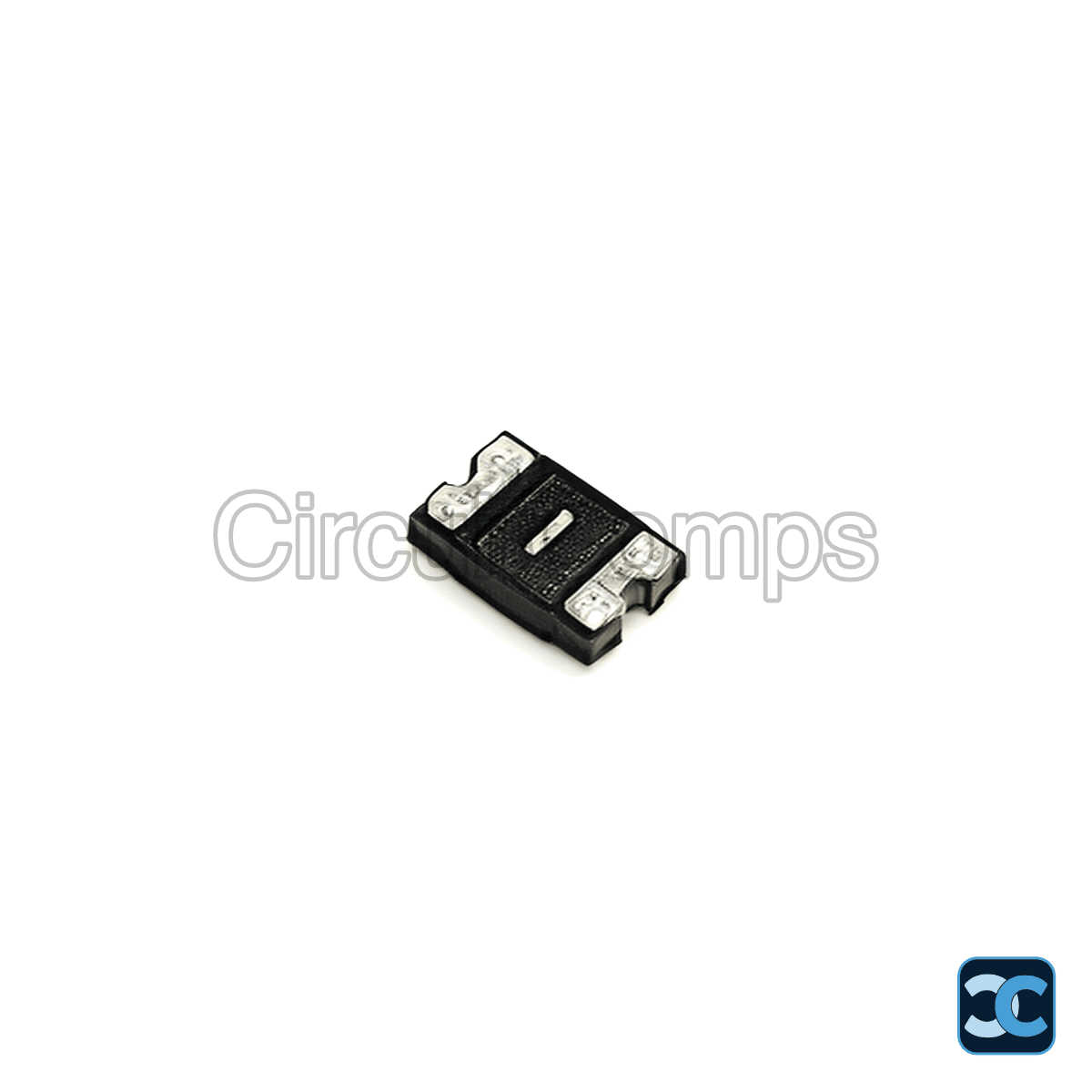

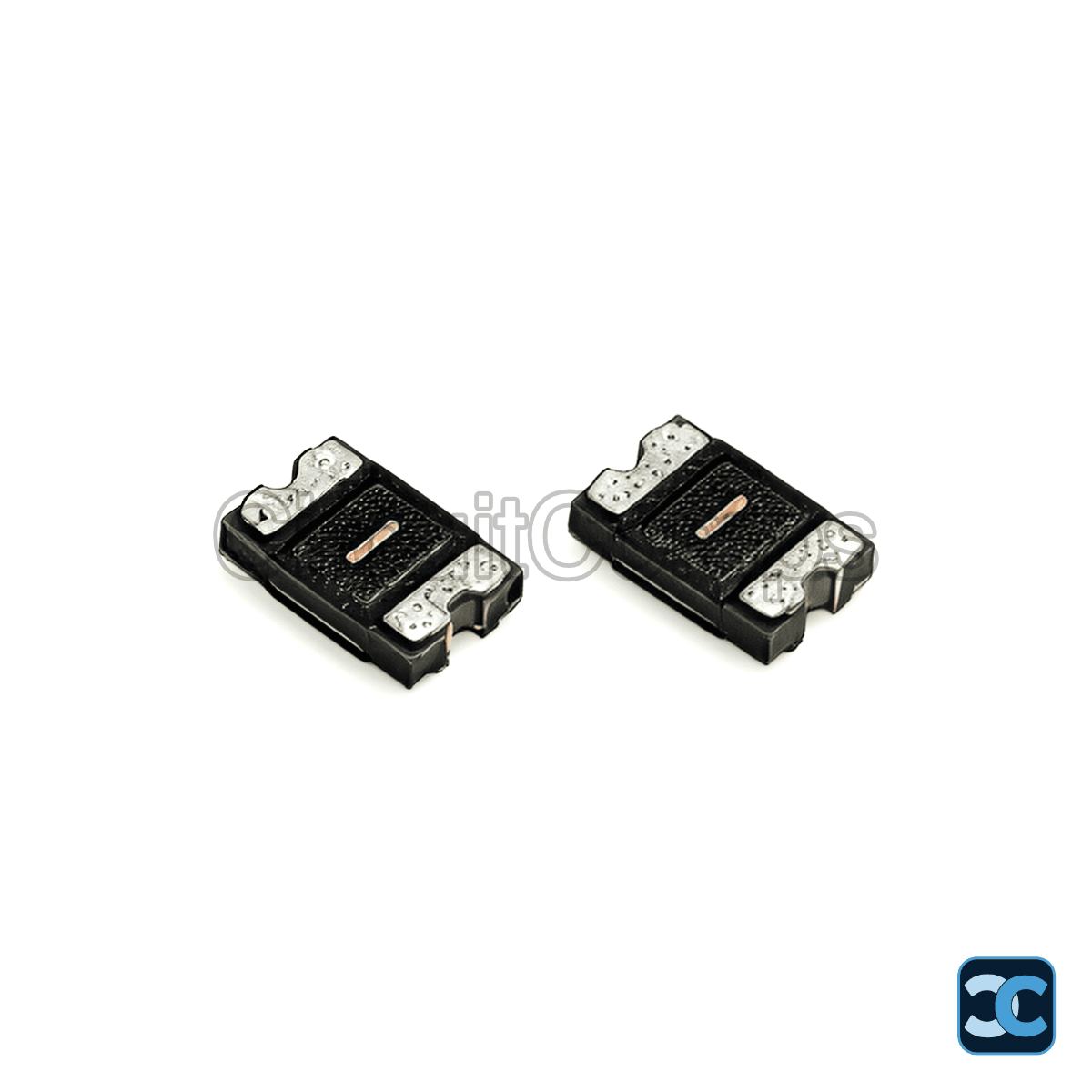

2A Fast Acting 0805 SMD Chip Fuse 32V VISHAY

The VISHAY MFU0805FF02000P100 is a high-performance fast-acting surface mount fuse designed to provide dependable overcurrent protection in compact electronic circuits. Manufactured using a precision thin-film process, this 0805 chip fuse delivers excellent stability, consistent fusing characteristics, and high reliability for modern electronic applications.

With a current rating of 2A, a maximum operating voltage of 32VDC, and a 50A DC breaking capacity, this fuse effectively protects sensitive electronic components from excessive current conditions. Its compact 0805 (2012 Metric) package makes it ideal for high-density PCB layouts where space is limited. Widely used in IT equipment, telecommunications, medical devices, industrial controls, consumer electronics, and automotive systems.

Key Specifications

• Manufacturer: Vishay
• Part Number: MFU0805FF02000P100
• Series: MFU
• Fuse Type: Surface Mount Chip Fuse
• Blow Characteristic: Fast Acting
• Rated Current: 2 A
• Rated Voltage: 32 VDC
• Breaking Capacity (DC): 50 A
• Package Size: 0805 (2012 Metric)
• Mounting Type: Surface Mount (SMD)
• Technology: Thin Film

Package Includes

• 1 x VISHAY MFU0805FF02000P100 2A Fast Acting 0805 SMD Chip Fuse 32V

Note: Image is for representation purpose only.
