EATON BUSSMANN TR-3216FF2-R 2A Fast Acting 1206 SMD Fuse 32VAC 63VDC

The EATON BUSSMANN TR-3216FF2-R is a high-quality fast-acting surface mount fuse designed to provide dependable overcurrent protection in modern electronic circuits. Part of the trusted 3216FF series, this fuse features a compact 1206 (3216 Metric) package, making it ideal for space-constrained PCB designs.

With a 2A current rating, 32VAC / 63VDC voltage rating, and 50A AC/DC breaking capacity, the TR-3216FF2-R quickly interrupts excessive current to protect sensitive electronic components from damage caused by overloads and short circuits. Its surface-mount construction enables automated PCB assembly and makes it suitable for industrial controls, telecommunications, consumer electronics, automotive systems, and embedded devices.

Key Specifications

• Manufacturer: EATON BUSSMANN
• Part Number: TR-3216FF2-R
• Product Series: 3216FF
• Fuse Type: Surface Mount Fuse
• Blow Characteristic: Fast Acting
• Rated Current: 2 A
• Rated Voltage (AC): 32 VAC
• Rated Voltage (DC): 63 VDC
• Breaking Capacity (AC): 50 A
• Breaking Capacity (DC): 50 A
• Package Size: 1206 (3216 Metric)
• Mounting Type: Surface Mount (SMD)

Package Includes

• 1 x EATON BUSSMANN TR-3216FF2-R 2A Fast Acting 1206 SMD Fuse 32VAC 63VDC

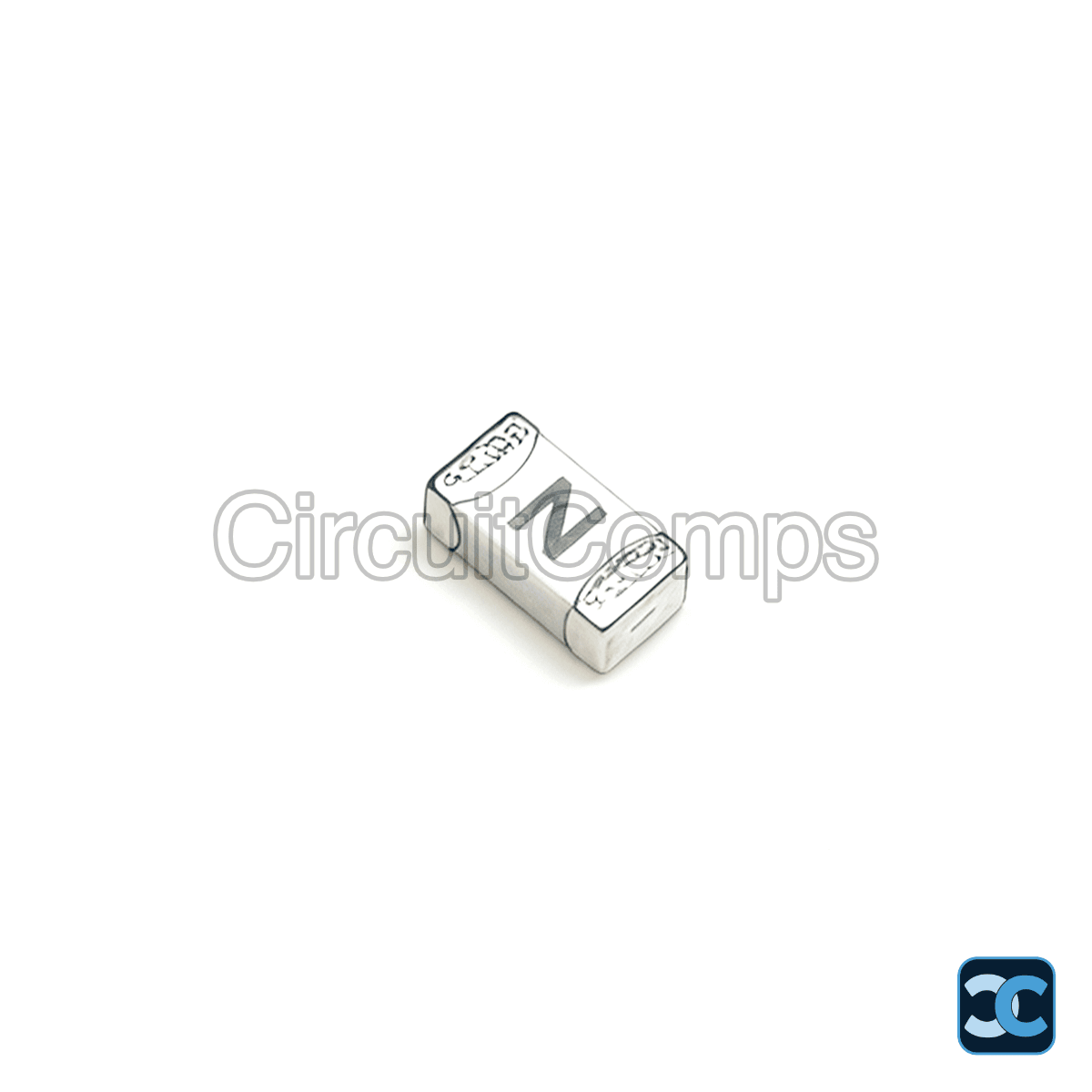

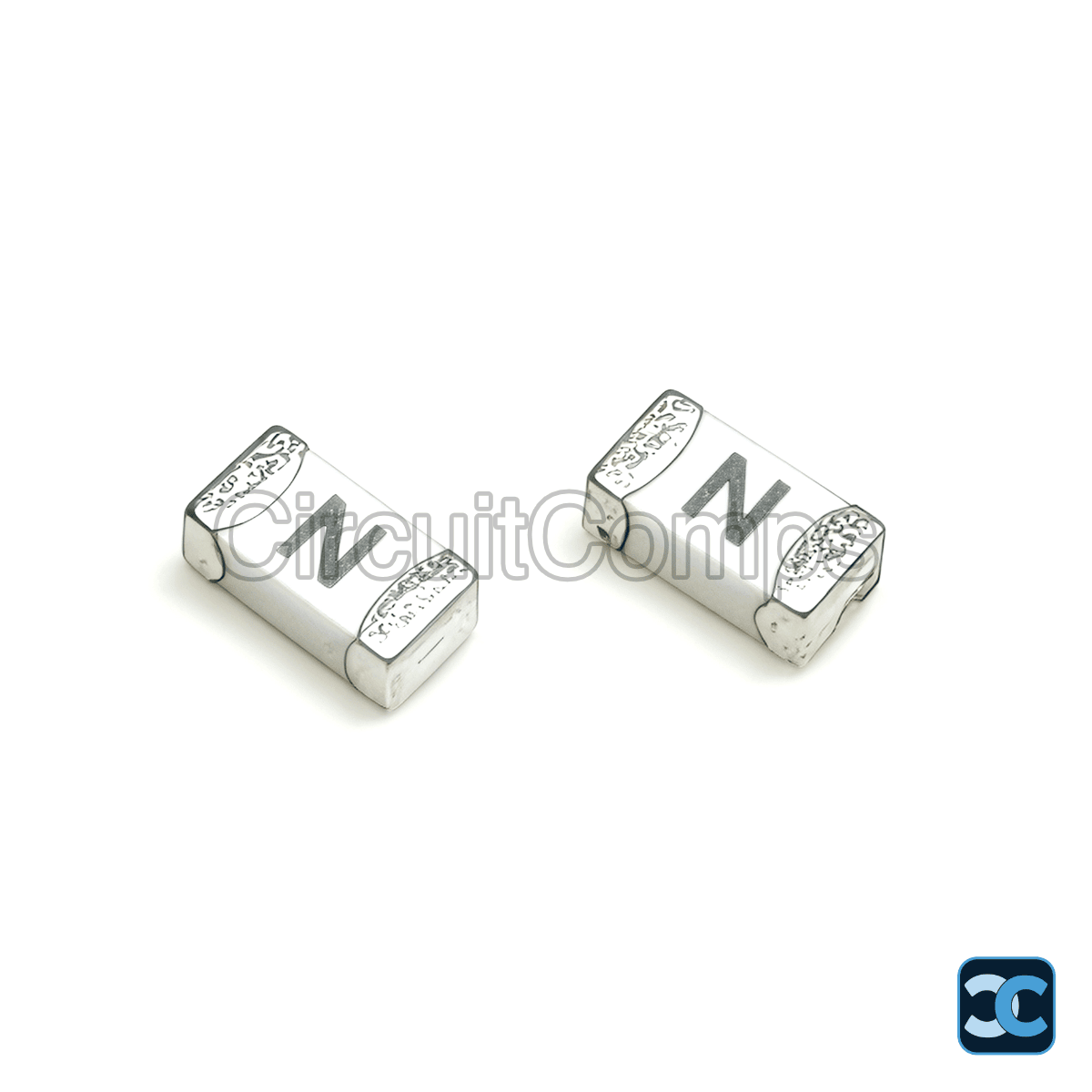

Note: Image is for representation purpose only.
