HEL-14D330K 14mm Metal Oxide Varistor (MOV) 33V 1kA Surge Protection

The HEL-14D330K is a 14mm Metal Oxide Varistor (MOV) designed to guard low-voltage DC and AC circuits against dangerous voltage spikes, surges, and transients. With a 1kA maximum surge current rating and a clamping voltage of just 65V at 10A, it acts as a fast-responding voltage clamp that absorbs transient energy before it can damage sensitive downstream components — making it an essential protection device in SMPS, consumer electronics, automotive circuits, and microcontroller-based boards.

Key Specifications

• Part Number: HEL-14D330K
• Varistor Voltage (Typ): 33V (range: 30V – 36V)
• Maximum AC Voltage: 20 VAC
• Maximum DC Voltage: 26 VDC
• Maximum Surge Current: 1 kA (1,000A)
• Clamping Voltage: 65V (at 10A)
• Energy Absorption: 7.5 Joules
• Diameter: 14mm
• Mounting Type: Through-Hole (THT), Radial Leads
• Applications: Low-voltage SMPS, Consumer Electronics, Automotive Circuits, Microcontroller Surge Protection

Package Includes

• 1 x HEL-14D330K 14mm Metal Oxide Varistor (MOV) 33V 1kA Surge Protection

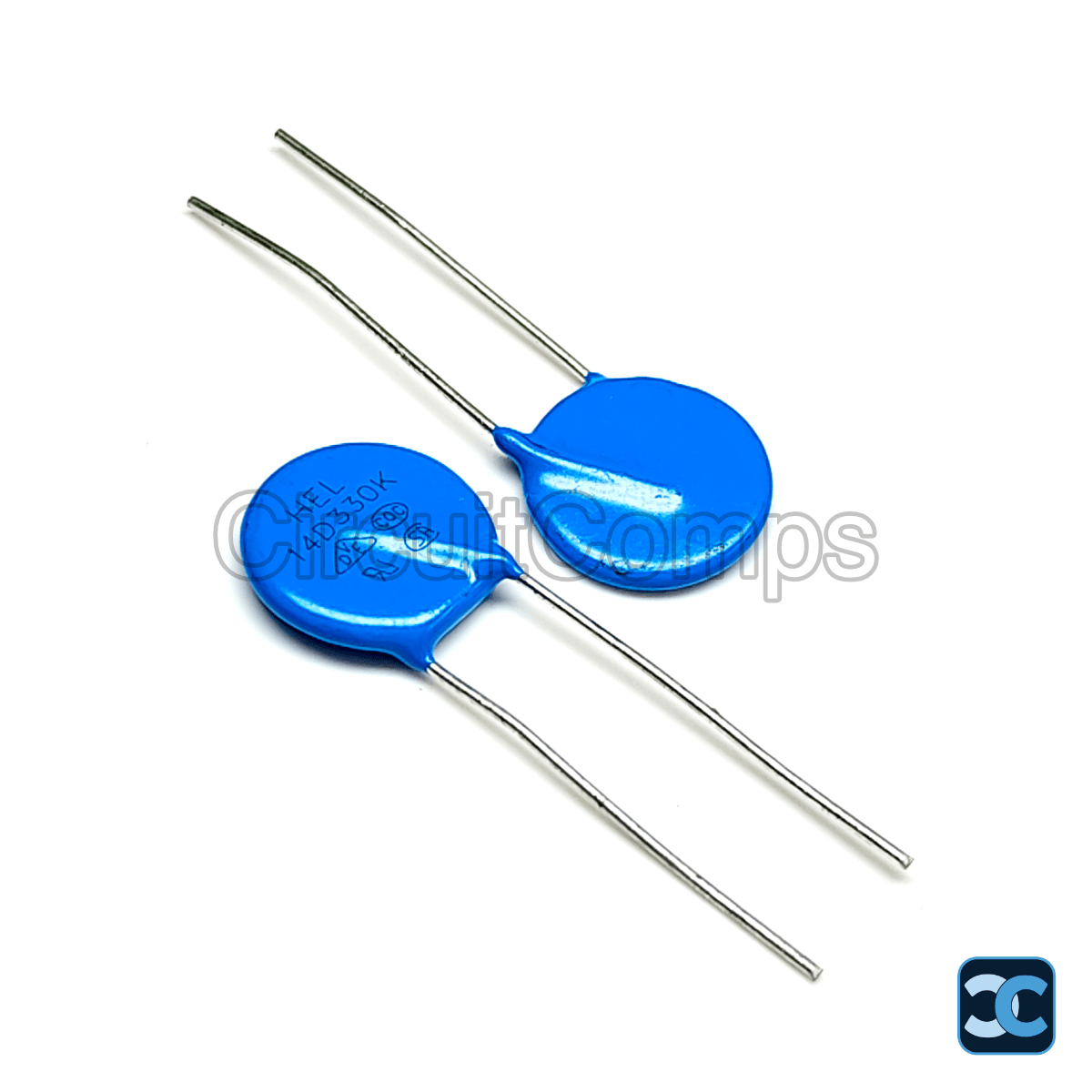

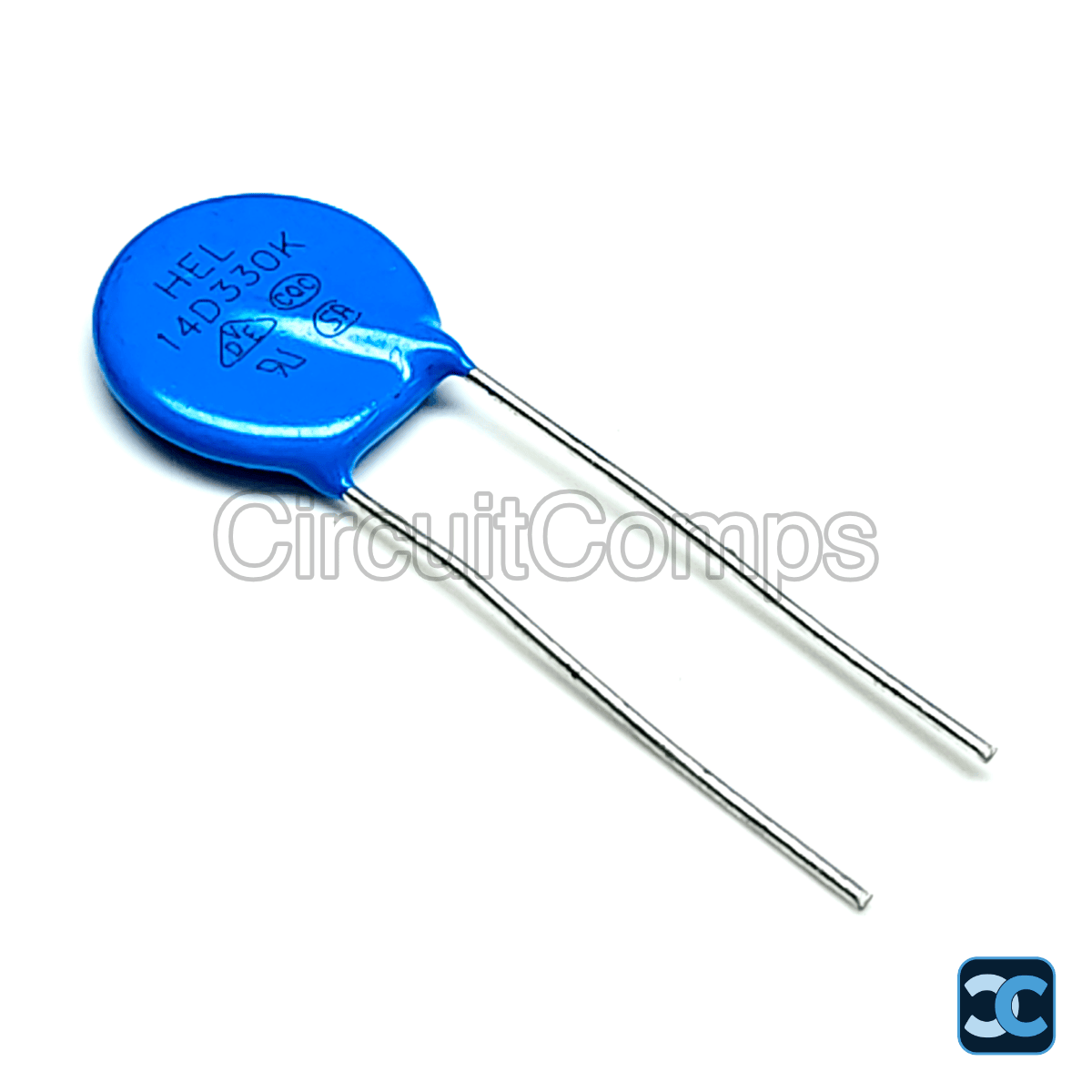

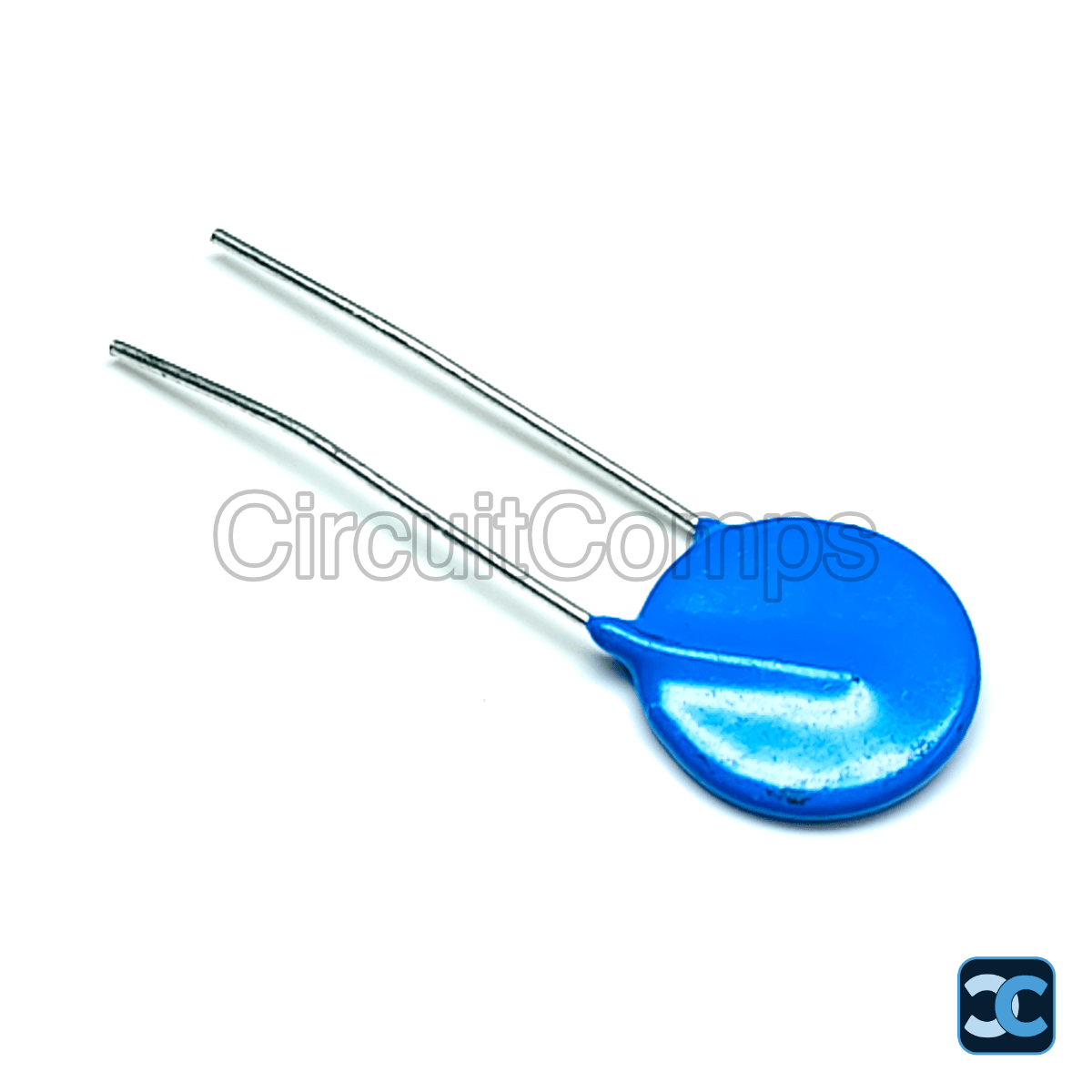

Note: Image is for representation purpose only.
