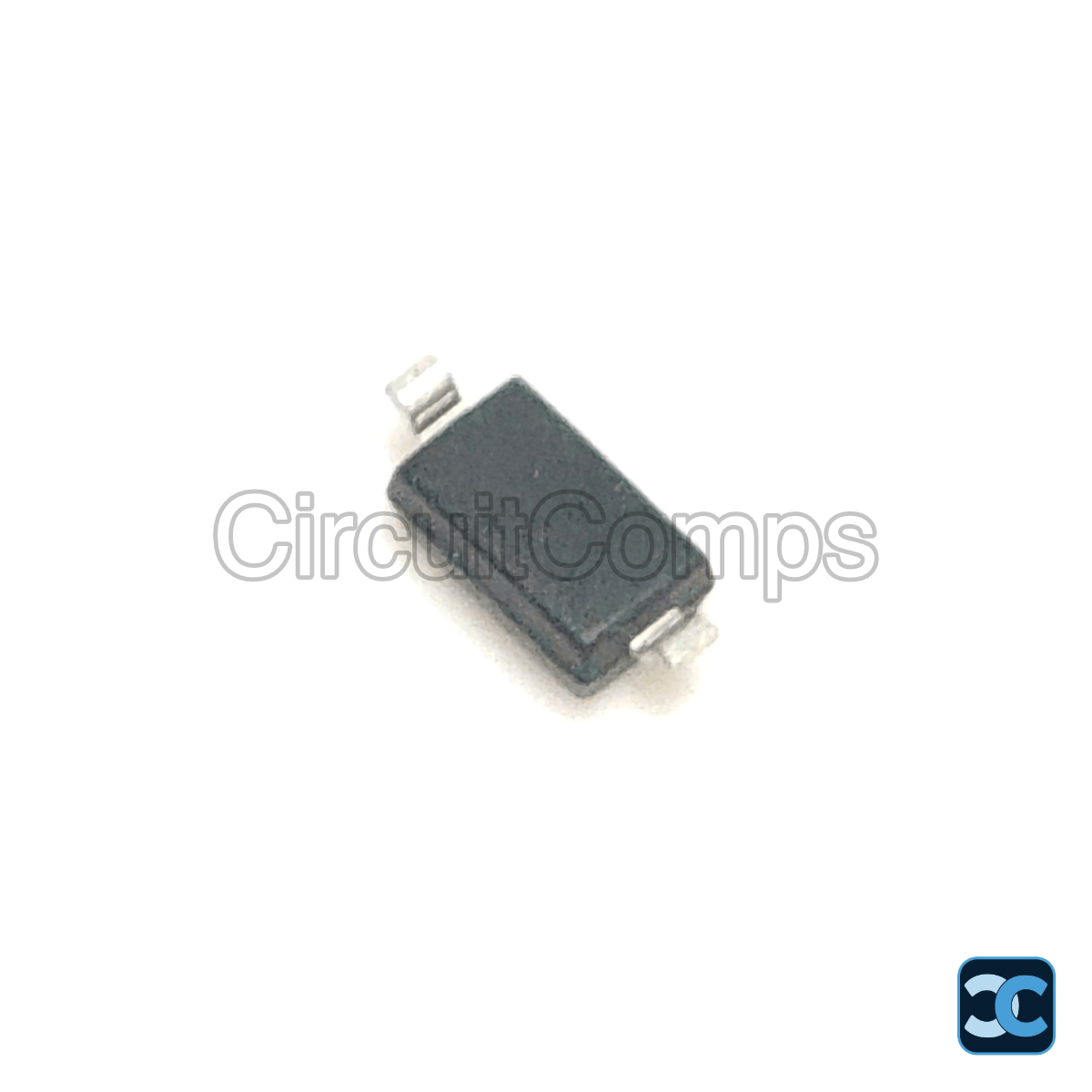

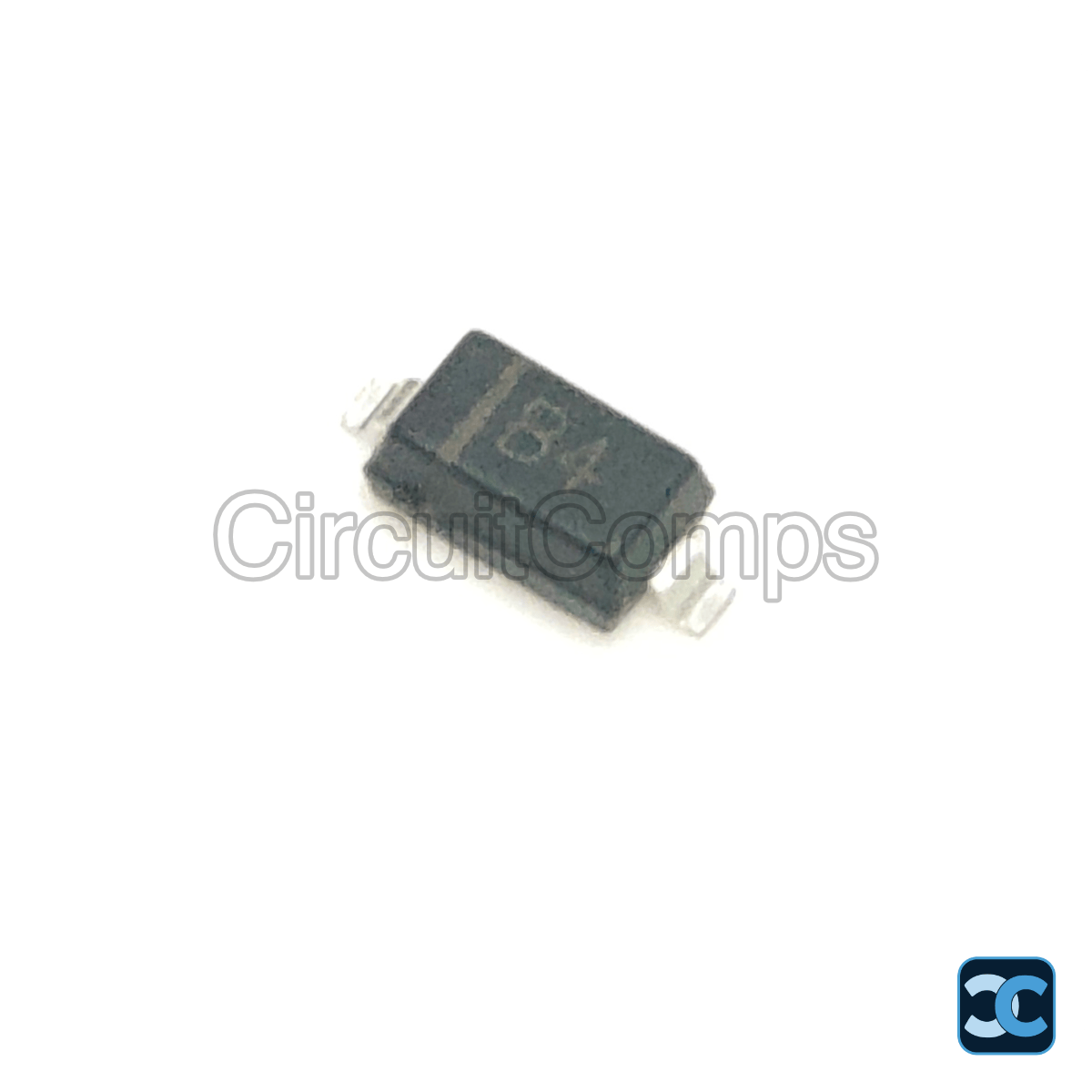

MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor
MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor
MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor
MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor
MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor
MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor
Slkor

MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor

Product SKU: CC-000950
Available:
Only 11 items in stock
11 items in stock
In stock
Pre-order
Out of stock
Incoming: 0 more units expected on
₹3.13
₹3.15
Notify me When Available
You will receive an email when the product is available.

For B2B orders, contact us on sales@circuitcomps.com

Key Specifications
View full specs
  • Manufacturer Part No.
    MBR0540W B4
  • Manufacturer
    Slkor
  • Device Type
    Schottky Rectifier Diode
  • Package Type
    SOD-123
  • Mounting Type
    Surface Mount (SMD)
  • Peak Reverse Voltage (VRRM)
    40V
  • Average Rectified Current (IF)
    500mA
  • Forward Voltage Drop (VF)
    620mV @ 1A
  • Reverse Leakage Current (IR)
    20µA @ 40V
  • Diode Configuration
    Single Schottky Diode
  • Rectification Type
    Low-Loss Schottky Rectification
  • Switching Speed
    Fast Switching
  • Operating Temperature Range
    -55°C to +125°C
  • RoHS Compliance
    Yes
  • Technology
    Schottky Barrier
  • Power Efficiency
    Low Forward Voltage for Reduced Power Loss
  • Thermal Performance
    Wide Temperature Operating Range
  • Applications
    Power Supplies, DC-DC Converters, Battery Charging Circuits, Solar Power Systems, Power Management Circuits
  • Suitable For
    Low-Voltage Rectification, Reverse Polarity Protection, Output Rectification, Portable Electronics
  • Features
    Low Forward Voltage Drop, Fast Recovery Characteristics, Low Leakage Current, Compact SMD Package, High Reliability
  • Function
    Efficient AC/DC and DC/DC Power Rectification
  • Electrical Characteristics
    Optimized for High-Efficiency Low-Power Applications
  • Description
  • Specifications

The Slkor MBR0540W B4 is a 40V 500mA Schottky rectifier diode in a compact SOD-123 SMD package. With a low forward voltage of 620mV at 1A, fast switching, and a wide operating temperature range, it is ideal for power supply rectification, DC-DC converter outputs, solar and battery charging circuits, and low-voltage power switching applications.

Key Specifications

  • Manufacturer: Slkor
  • Manufacturer Part No.: MBR0540W B4
  • Type: Schottky Rectifier Diode
  • Peak Reverse Voltage: 40V
  • Rectified Current: 500mA
  • Forward Voltage: 620mV @ 1A
  • Reverse Leakage: 20 µA @ 40V
  • Package: SOD-123 (SMD)
  • Operating Temperature: -55°C to +125°C
  • RoHS Compliant: Yes

Package Includes

  • 1 x 40V 500mA Schottky Diode SOD-123 SMD Slkor

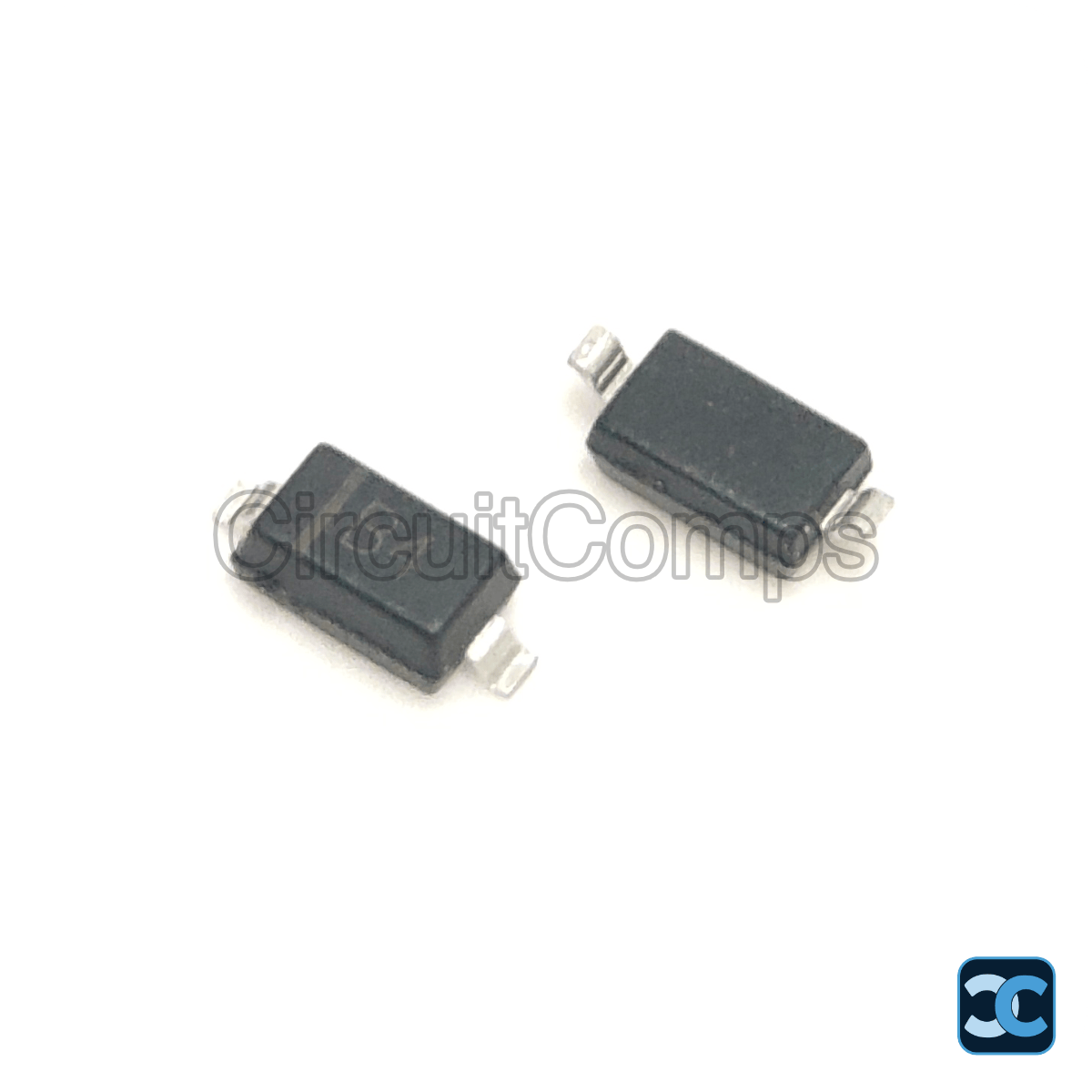

Note: Image is for representation purpose only.

Key Specifications

Everything you need to know about MBR0540W 40V 500mA Schottky Diode SOD-123 SMD Slkor at a glance.

  • Manufacturer Part No.
    MBR0540W B4
  • Manufacturer
    Slkor
  • Device Type
    Schottky Rectifier Diode
  • Package Type
    SOD-123
  • Mounting Type
    Surface Mount (SMD)
  • Peak Reverse Voltage (VRRM)
    40V
  • Average Rectified Current (IF)
    500mA
  • Forward Voltage Drop (VF)
    620mV @ 1A
  • Reverse Leakage Current (IR)
    20µA @ 40V
  • Diode Configuration
    Single Schottky Diode
  • Rectification Type
    Low-Loss Schottky Rectification
  • Switching Speed
    Fast Switching
  • Operating Temperature Range
    -55°C to +125°C
  • RoHS Compliance
    Yes
  • Technology
    Schottky Barrier
  • Power Efficiency
    Low Forward Voltage for Reduced Power Loss
  • Thermal Performance
    Wide Temperature Operating Range
  • Applications
    Power Supplies, DC-DC Converters, Battery Charging Circuits, Solar Power Systems, Power Management Circuits
  • Suitable For
    Low-Voltage Rectification, Reverse Polarity Protection, Output Rectification, Portable Electronics
  • Features
    Low Forward Voltage Drop, Fast Recovery Characteristics, Low Leakage Current, Compact SMD Package, High Reliability
  • Function
    Efficient AC/DC and DC/DC Power Rectification
  • Electrical Characteristics
    Optimized for High-Efficiency Low-Power Applications
Brand / Vendor Slkor
SKU CC-000950
Category Schottky Diode SMD
