CD40106BM Hex Schmitt Trigger Inverter CMOS Logic IC SOIC-14 Texas Instruments

The Texas Instruments CD40106BM is a CD4000 CMOS series hex inverter logic IC with integrated Schmitt trigger inputs in a 14-pin SOIC SMD package. With 6 independent inverting channels, a wide supply voltage range of 3V to 18V, 6.8mA output current, and MSL 1 rating, it is ideal for digital logic design, signal inversion, clock conditioning, oscillator circuits, pulse shaping, and TTL-to-CMOS level conversion applications.

Key Specifications

• Manufacturer: Texas Instruments
• Manufacturer Part No.: CD40106BM
• Logic Family: CD4000 CMOS
• Function: Hex Inverter with Schmitt Trigger Inputs
• Number of Elements: 6 (Hex)
• Number of Inputs per Gate: 1
• Supply Voltage: 3V – 18V
• Output Current: 6.8 mA
• Package: SOIC-14 (SMD)
• Operating Temperature: -55°C to +125°C
• MSL Rating: MSL 1 - Unlimited
• RoHS Compliant: Yes

Package Includes

• 1 x Hex Schmitt Trigger Inverter CMOS Logic IC SOIC-14 Texas Instruments

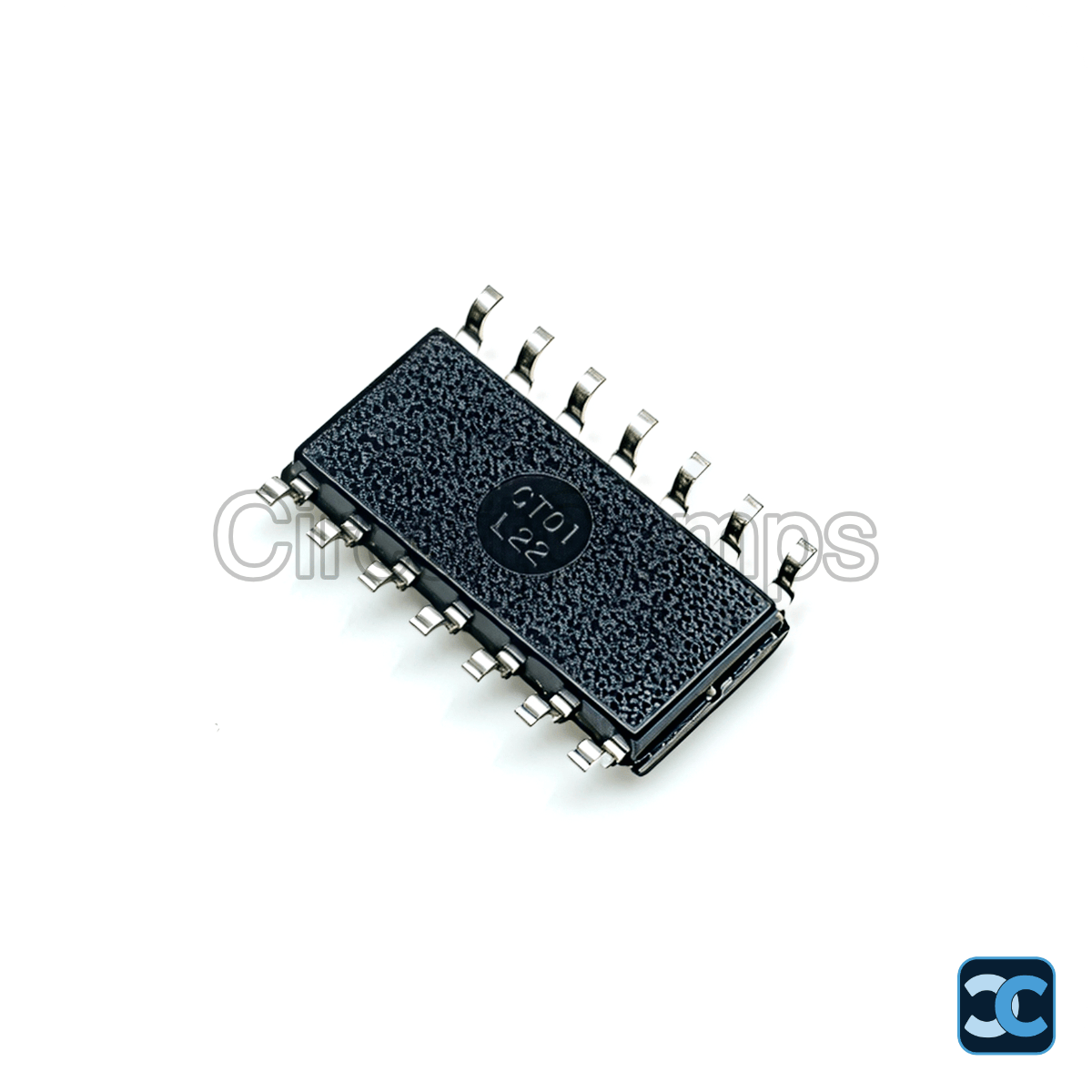

Note: Image is for representation purpose only.
