SR5100 – 100V 5A Schottky Barrier Rectifier Diode – DO-201AD | Hornby Electronics

The SR5100 is a high-efficiency Schottky barrier rectifier diode rated for 5A average forward current and 100V reverse voltage. Designed for low-voltage, high-frequency switching applications, it offers low forward voltage drop (0.85V max @ 5A), fast switching performance, and high surge current capability up to 150A.

Its DO-201AD axial package provides reliable thermal performance and durability, making it suitable for switching power supplies, DC-DC converters, inverters, freewheeling circuits, and polarity protection applications.

Key Specifications:
Model: SR5100
Diode Type: Schottky Barrier Rectifier
Peak Reverse Voltage (VRRM): 100V
Average Forward Current (IF): 5A
Maximum Surge Current: 150A
Forward Voltage Drop (VF): 0.85V (max) @ 5A
Package: DO-201AD (Axial Lead)
Operating Temperature: -55°C to +150°C

Package Includes:
1 x SR5100 100V 5A Schottky Rectifier Diode DO-201AD

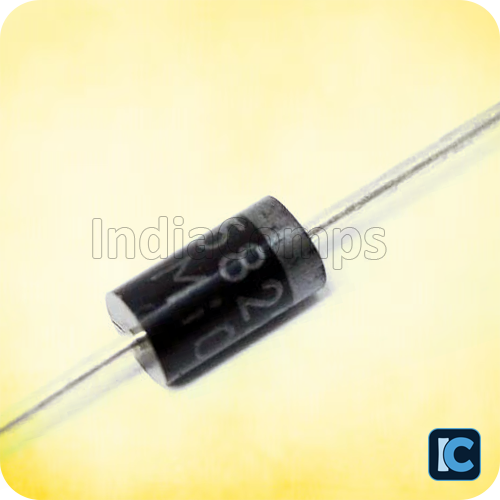

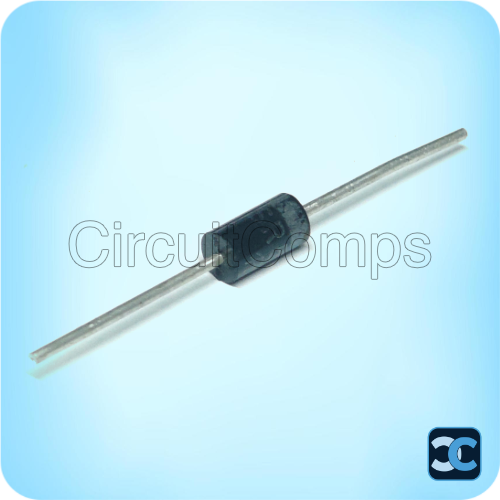

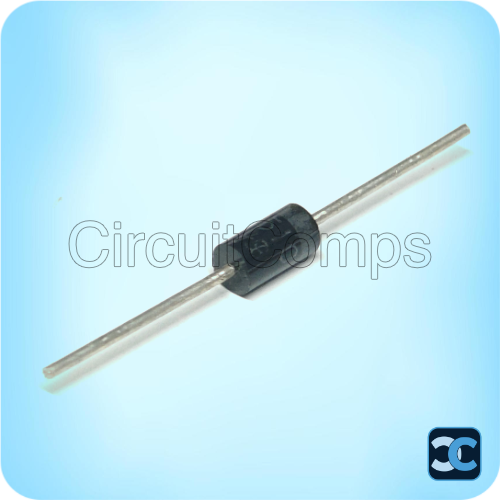

Note: Image is for representation purpose only.
