- SS34A Schottky Diode SMA (DO-214AC) 3A 40V SMD - 1N5822 Equivalent SS34A Schottky Diode SMA (DO-214AC) 3A 40V SMD - 1N5822 Equivalent
14% Rs. 0.25
Circuitcomps

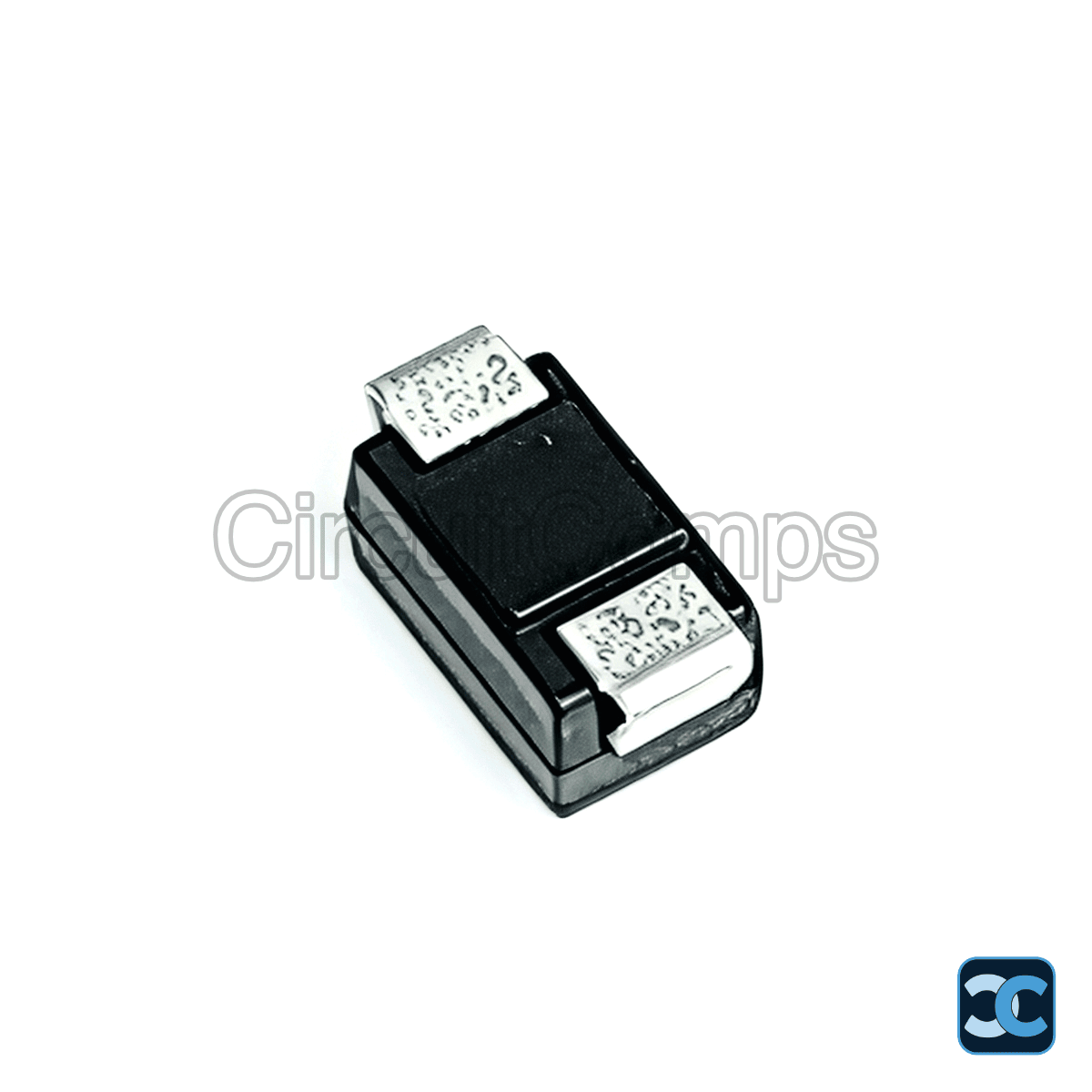

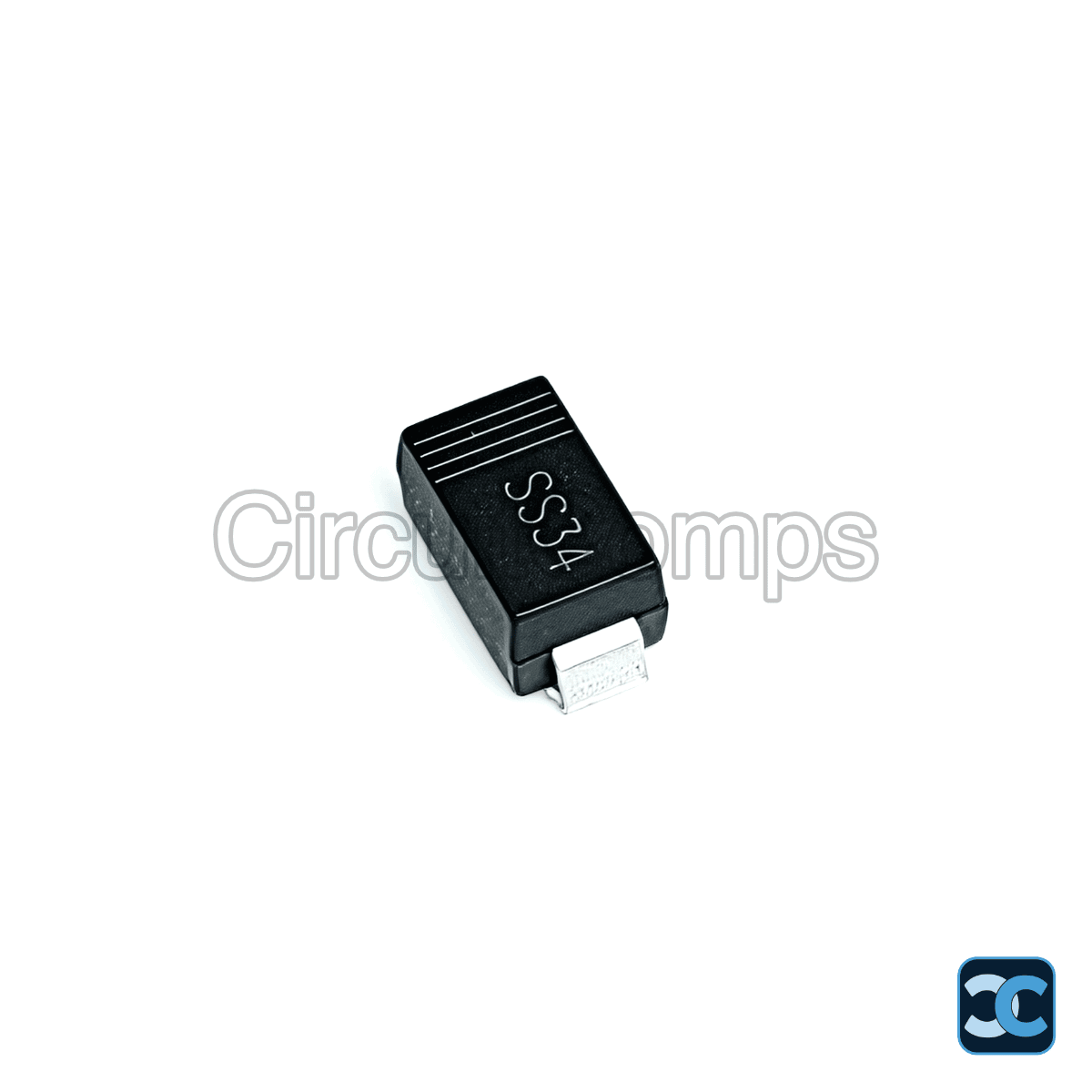

SS34A Schottky Diode SMA (DO-214AC) 3A 40V SMD - 1N5822 Equivalent
No reviews
Product SKU: CC-001046
Available:
Only 30 items in stock
30 items in stock
In stock
Pre-order
Out of stock
Incoming: 0 more units expected on
Rs. 1.50
- Description
- Reviews
The SS34A is a high-efficiency SMD Schottky barrier diode in the compact SMA (DO-214AC) package, rated at 3A forward current and 40V reverse voltage. As the SMD equivalent of the popular 1N5822, it delivers a low forward voltage drop and fast switching characteristics, making it ideal for freewheeling, reverse polarity protection, switching power supplies, and high-frequency rectification circuits in consumer and industrial electronics.
Key Specifications
- Part Number: SS34 / SS34A
- Type: Schottky Diode
- Package: SMA (DO-214AC) / SOD126
- Max Forward Current (If): 3A
- Reverse Voltage (Vr): 40V
- SMD Equivalent of: 1N5822
- Mounting Style: SMD (Surface Mount)
Package Includes
- 1 x SS34A Schottky Diode SMA (DO-214AC) 3A 40V SMD
Note: Image is for representation purpose only.
