TYN16-600CT 16A 600V SCR Silicon Controlled Rectifier SOT-78-3 - WeEn Semiconductors

The TYN16-600CT from WeEn Semiconductors is a passivated silicon controlled rectifier (SCR) rated at 16A RMS on-state current and 600V repetitive off-state voltage. Housed in a through-hole SOT-78-3 package, it is designed for AC power control, motor speed control, lighting dimmers, and industrial power switching applications requiring robust and reliable thyristor performance.

Key Specifications

• Part Number: TYN16-600CT,127
• Manufacturer: WeEn Semiconductors
• Type: SCR (Silicon Controlled Rectifier) - Passivated
• Package: SOT-78-3 (Through Hole)
• Rated Repetitive Off-State Voltage (VDRM): 600V
• On-State RMS Current (It RMS): 16A
• Non-Repetitive On-State Current: 198A
• Off-State Leakage Current (IDRM): 200 µA
• Gate Trigger Voltage (Vgt): 700 mV
• Gate Trigger Current (Igt): 15 mA
• Max Gate Peak Inverse Voltage: 5V
• Holding Current (Ih Max): 40 mA
• Max Operating Temperature: +150°C
• Mounting Style: Through Hole

Package Includes

• 1 x TYN16-600CT 16A 600V SCR Silicon Controlled Rectifier SOT-78-3 - WeEn Semiconductors

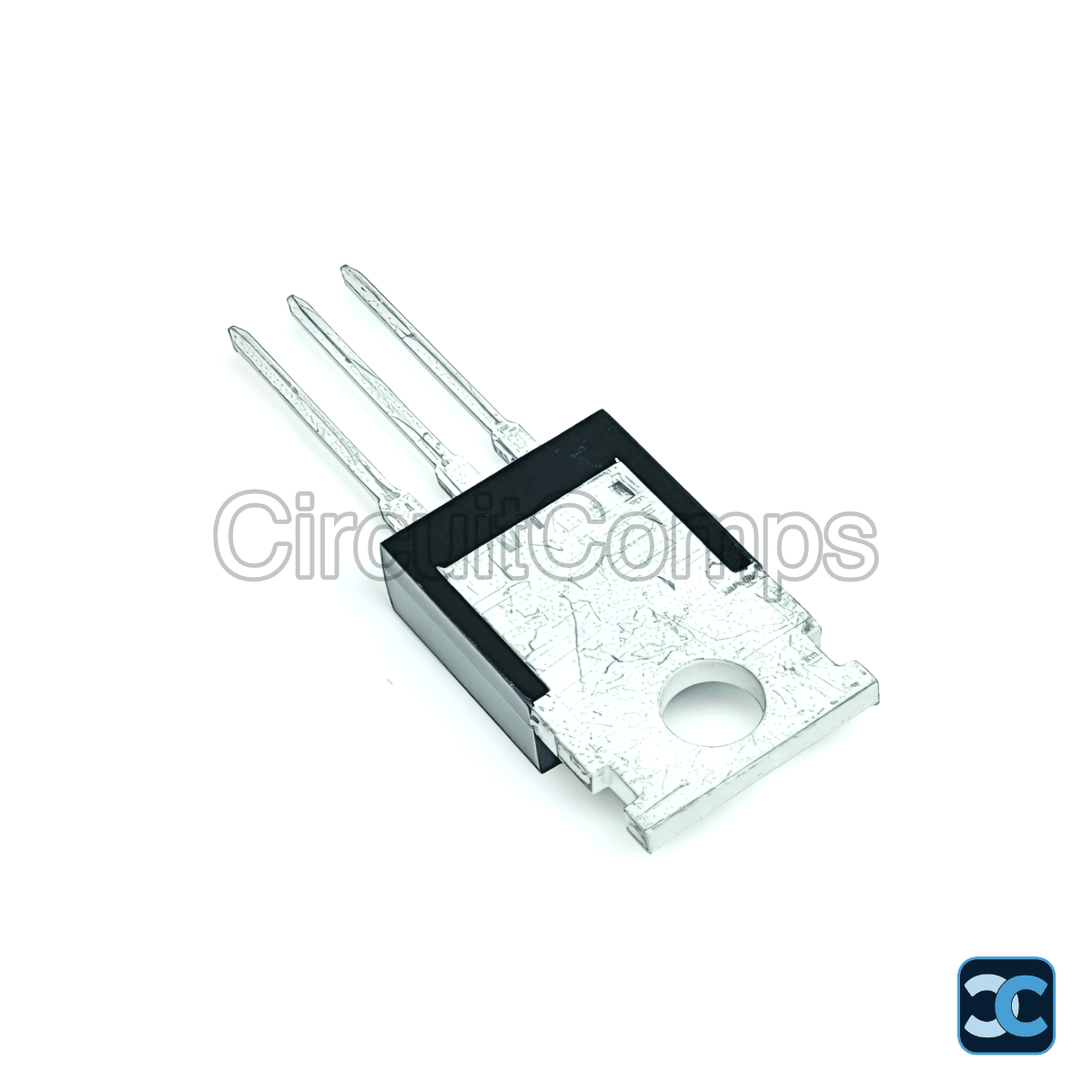

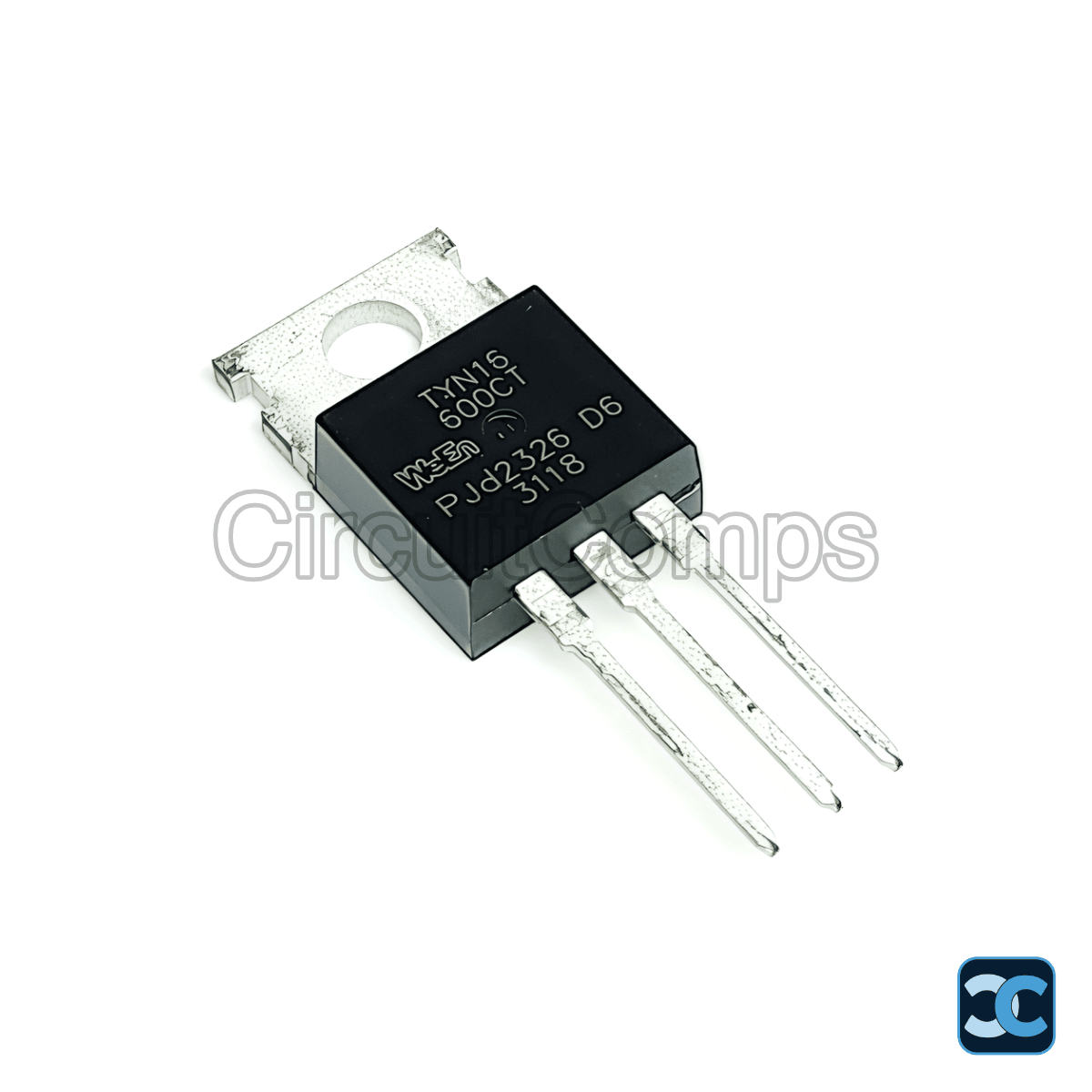

Note: Image is for representation purpose only.
