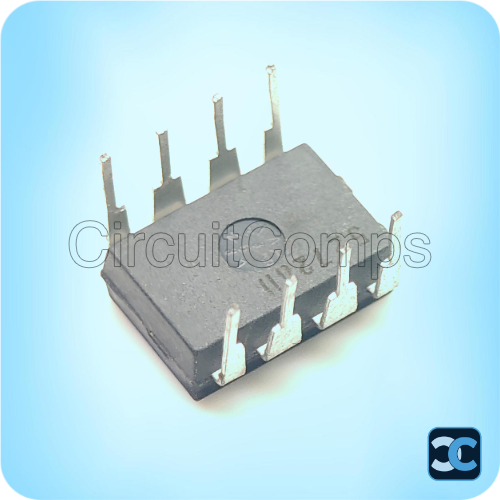

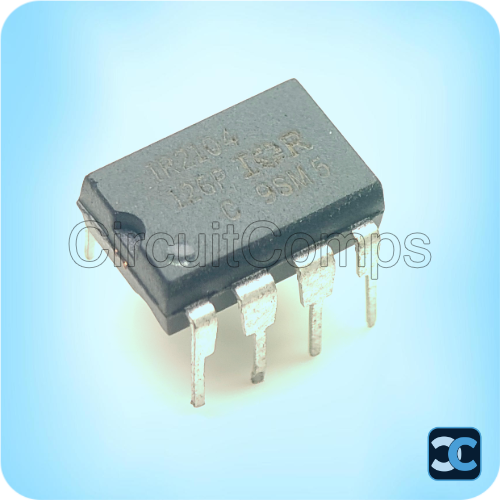

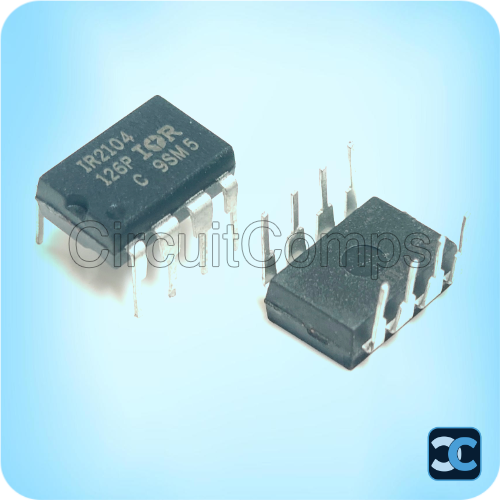

IR2104 Half Bridge Driver IC DIP-8 MOSFET IGBT Driver

The IR2104 is a high-voltage, high-speed half-bridge driver IC designed for driving MOSFETs and IGBTs in power electronics applications. Housed in a DIP-8 package, it supports high-side operation up to 600V using bootstrap techniques, making it ideal for motor control, inverters, and SMPS designs.

This IC operates with a gate drive supply voltage range of 10V to 20V and supports logic inputs down to 3.3V, ensuring compatibility with modern microcontrollers. It includes built-in undervoltage lockout (UVLO), cross-conduction prevention, and internally set deadtime to enhance safety and reliability.

Widely used in industrial systems, power supplies, and switching circuits, the IR2104 offers efficient and stable gate driving performance for high-power applications.

Package Includes:
1 x IR2104 Half Bridge Driver IC DIP-8 MOSFET IGBT Driver

Note: Image is for representation purpose only.
