ATTiny13A-SSU – 8-bit AVR Microcontroller | 1KB Flash | SOIC-8

ATTiny13A-SSU – 8-bit AVR Microcontroller | 1KB Flash | SOIC-8 Package

The ATTiny13A-SSU is a compact and low-power 8-bit AVR microcontroller from Atmel’s ATTiny family. Housed in a SOIC-8 package, this MCU features 1KB Flash, 64 bytes SRAM, and 64 bytes EEPROM, making it ideal for small-scale embedded applications. It supports clock speeds of up to 20 MHz and offers essential peripherals such as a 4-channel 10-bit ADC, 8-bit Timer/Counter, PWM, and SPI/debugWire interfaces.

Operating within a voltage range of 1.8V to 5.5V, the ATTiny13A is perfect for space-constrained and power-efficient designs. Despite its compact memory size, this microcontroller delivers solid performance for simple control tasks, signal processing, or as a secondary microcontroller for offloading jobs from a main processor.

🛠 Key Features:

• 1KB Flash Memory

• 64B EEPROM + 64B SRAM

• 8-bit AVR Architecture

• Up to 20 MHz Clock Speed

• Operating Voltage: 1.8V – 5.5V

• Low Power Consumption

• 4-Channel, 10-bit ADC

• 1x 8-bit Timer/Counter with Prescaler & 2 PWM Outputs

• Analog Comparator & Watchdog Timer with Internal Oscillator

• Interfaces: SPI, debugWire

• Supports External & Internal Interrupts

• Brown-Out Detection

• Compact SOIC-8 Surface Mount Package

📦 Applications:

• Battery-powered projects

• Signal conditioning

• Sensor interfacing

• LED lighting control

• Remote sensors

• DIY electronics & hobbyist projects

• Auxiliary controller in complex systems

📐 Specifications:

• Flash Memory: 1KB

• EEPROM: 64B

• RAM: 64B

• Clock Frequency: Up to 20 MHz

• Package: SOIC-8

• Weight: 2.5g

📄 Downloads:

• ATTiny13A-SSU Datasheet (KSTM0055)

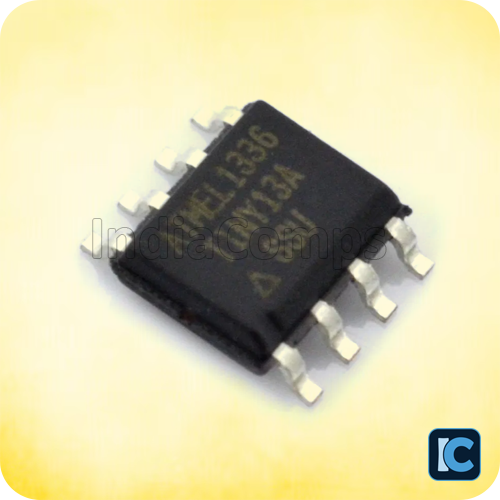

🖼️ Note: Image is for representation only.
