BAT54C Dual Schottky Barrier Diode Common Cathode SOT-23 30V 200mA

The BAT54C is a high-speed dual Schottky barrier diode configured with a common cathode in a compact SOT-23 surface-mount package. Designed for low-power, high-speed electronic applications, it provides an exceptionally low forward voltage drop and fast switching characteristics, making it an excellent choice for modern electronic circuit designs.

With a 30V repetitive peak reverse voltage, 200mA continuous forward current, and reverse recovery time of 5ns or less, the BAT54C delivers efficient performance in signal routing, logic level protection, power management, and switching applications. Its integrated guard ring structure enhances protection against transient voltage spikes and ESD.

Key Specifications

• Part Number: BAT54C
• Diode Type: Dual Schottky Barrier Diode
• Configuration: Common Cathode
• Package: SOT-23
• Mounting Type: Surface Mount (SMD)
• Repetitive Peak Reverse Voltage (VRRM): 30V
• Continuous Forward Current (IF): 200 mA
• Forward Voltage (VF): 320mV max @ 1mA / 400mV max @ 10mA / 800mV max @ 100mA
• Reverse Recovery Time (trr): ≤5 ns
• Power Dissipation: 250 mW
• Operating Junction Temperature: −55°C to +150°C

Package Includes

• 1 x BAT54C Dual Schottky Barrier Diode Common Cathode SOT-23 30V 200mA

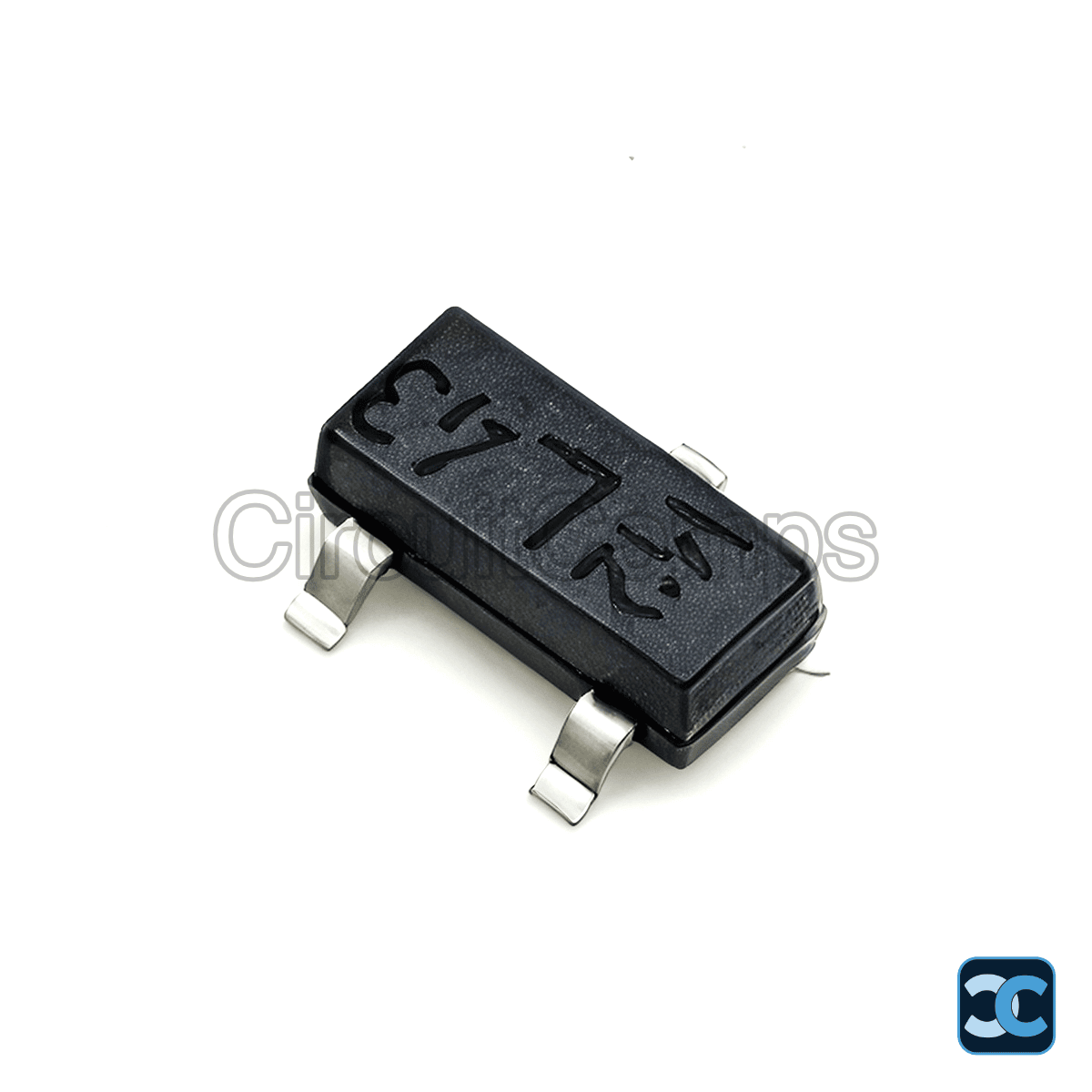

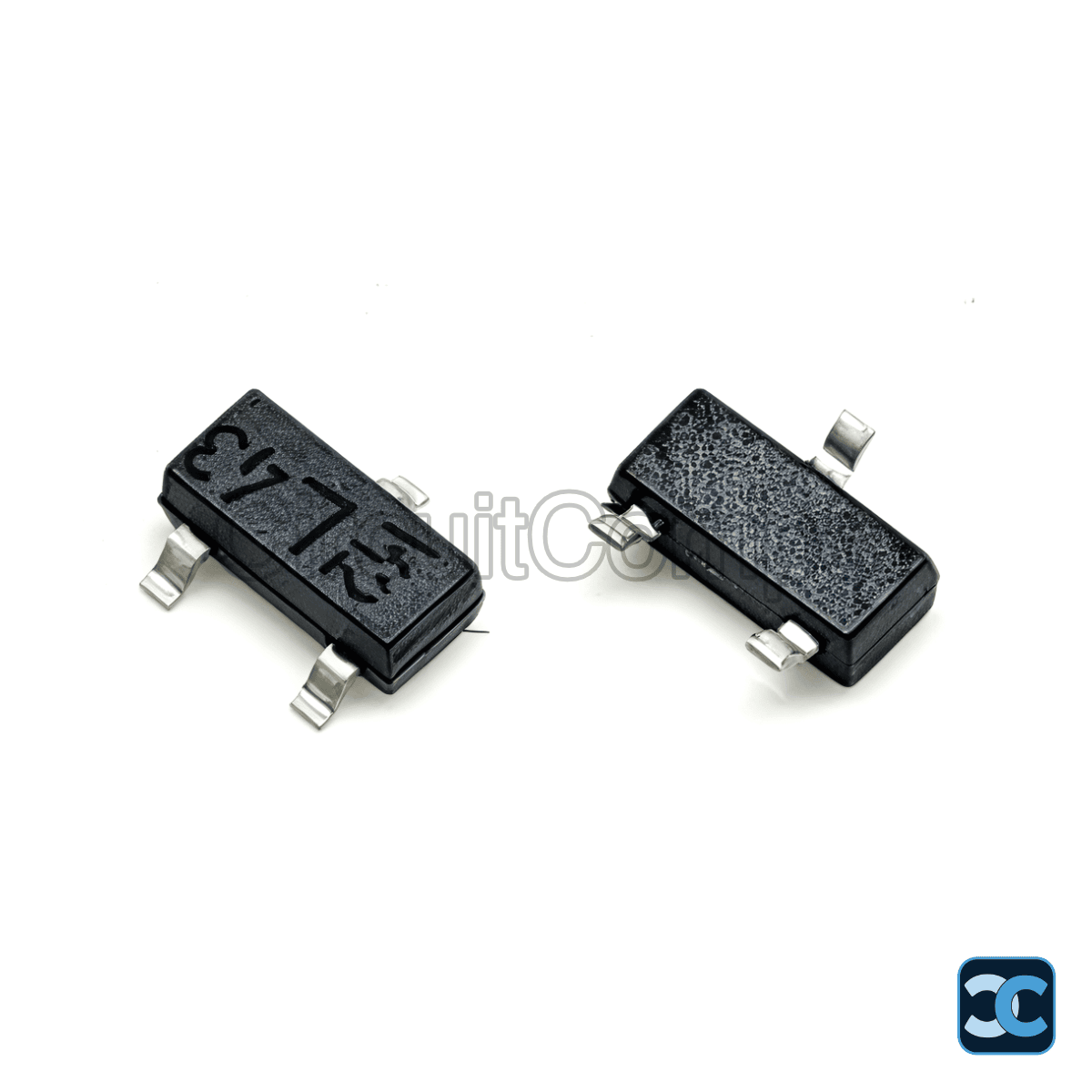

Note: Image is for representation purpose only.
