MC74HC14ADR2G Hex Schmitt-Trigger Inverter 74HC SOIC-14 SMD onsemi

The onsemi MC74HC14ADR2G is a hex Schmitt-trigger inverter in a SOIC-14 SMD package, operating from 2V to 6V supply. With 6 independent inverting channels featuring Schmitt-trigger inputs, it provides excellent noise immunity and signal conditioning, making it ideal for signal squaring, waveform shaping, debouncing, and noise suppression in digital logic circuits.

Key Specifications

• Manufacturer: onsemi
• Manufacturer Part No.: MC74HC14ADR2G
• Logic Family: 74HC
• Number of Circuits: 6 (Hex)
• Input Type: Schmitt Trigger
• Supply Voltage: 2V – 6V
• Output Current (IOH/IOL): 5.2 mA
• Propagation Delay: 13 ns @ 6V, 50pF
• Quiescent Current (Iq): 1 µA
• Package: SOIC-14 (SMD)
• Operating Temperature: -55°C to +125°C
• Features: Noise Suppression
• RoHS Compliant: Yes

Package Includes

• 1 x Hex Schmitt-Trigger Inverter 74HC SOIC-14 SMD onsemi

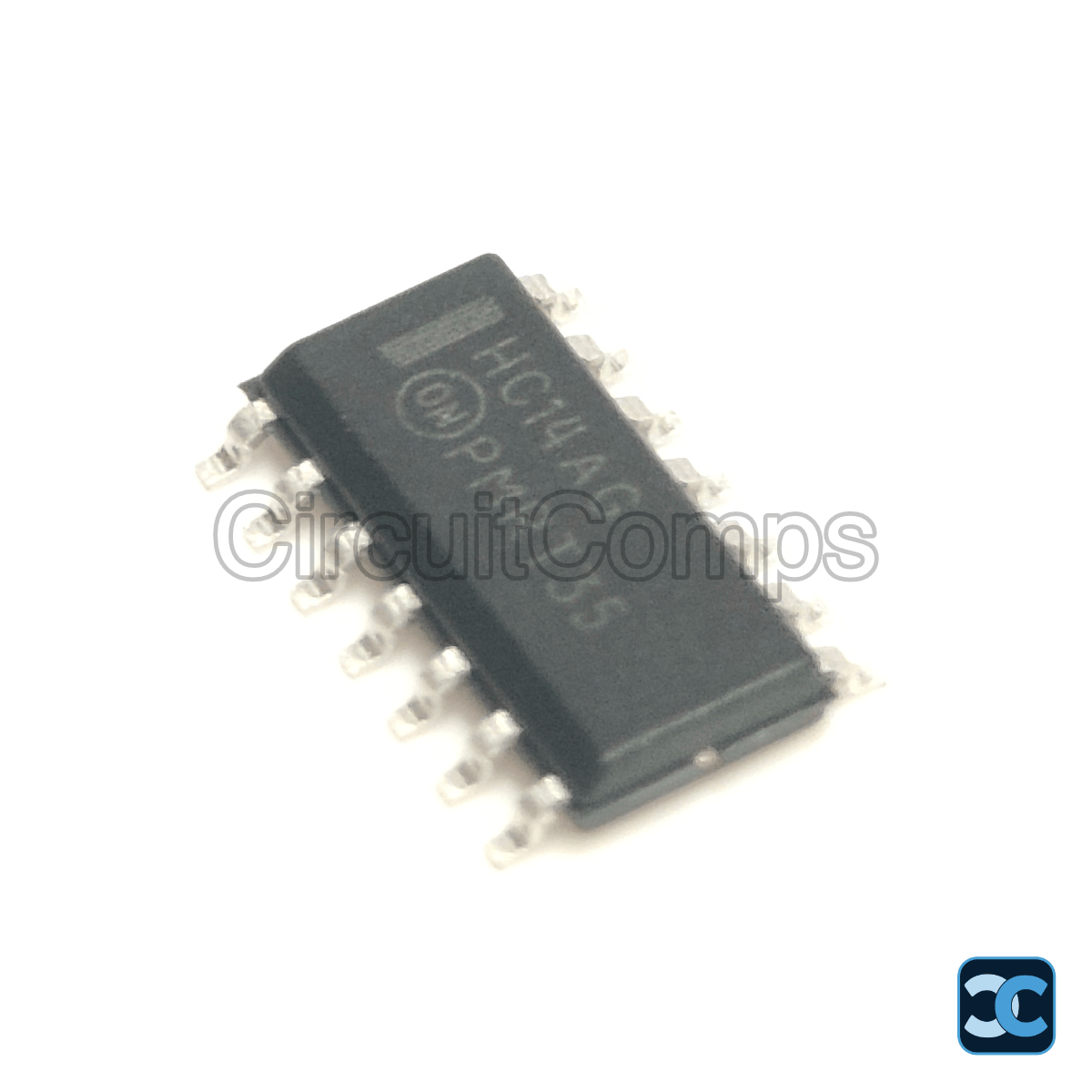

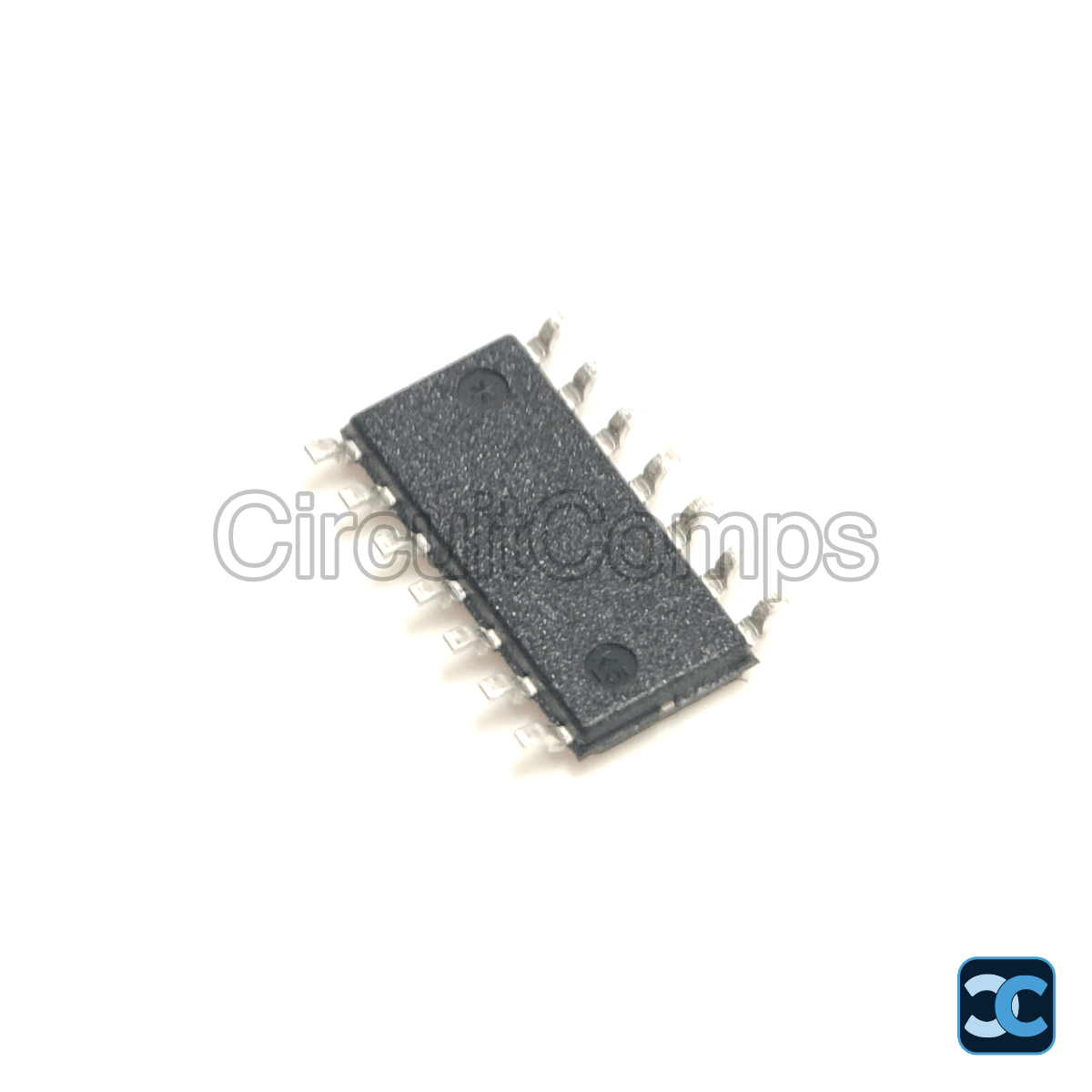

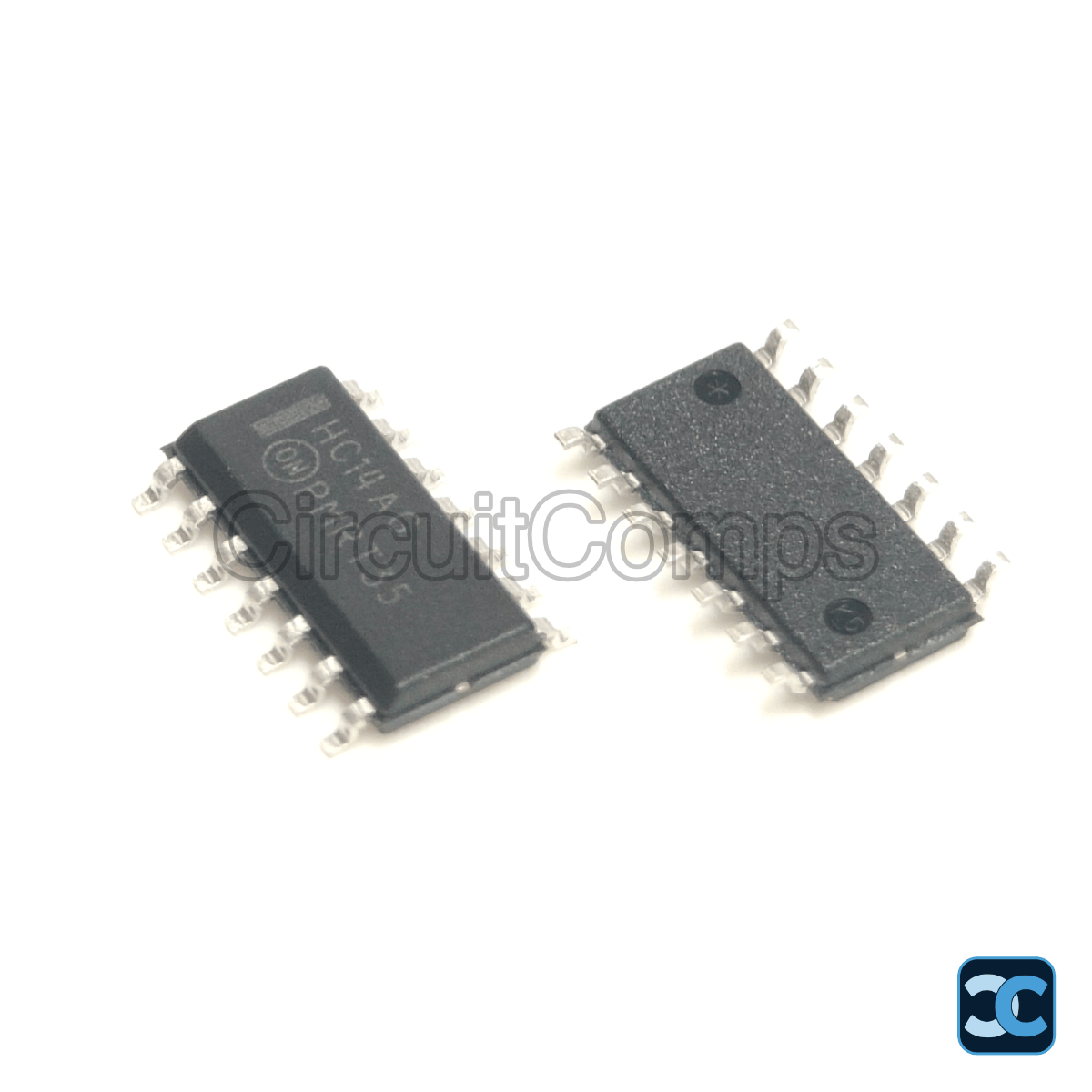

Note: Image is for representation purpose only.
