NRVB30H100MFST1G Schottky Barrier Rectifier 30A 100V DFN-5 SMD – onsemi

The NRVB30H100MFST1G by onsemi is a high-performance Schottky Barrier Rectifier housed in a thermally efficient DFN-5 (5×6) surface-mount package. Engineered for low power loss and high efficiency, it delivers a low forward voltage drop of 810 mV at 30 A and handles surge currents up to 300 A. With an operating junction temperature range of −55°C to +175°C and ultra-low reverse leakage of 5 µA at 100 V, it is ideal for high-frequency rectification and freewheeling applications in automotive and industrial environments.

Key Specifications

• Manufacturer: onsemi

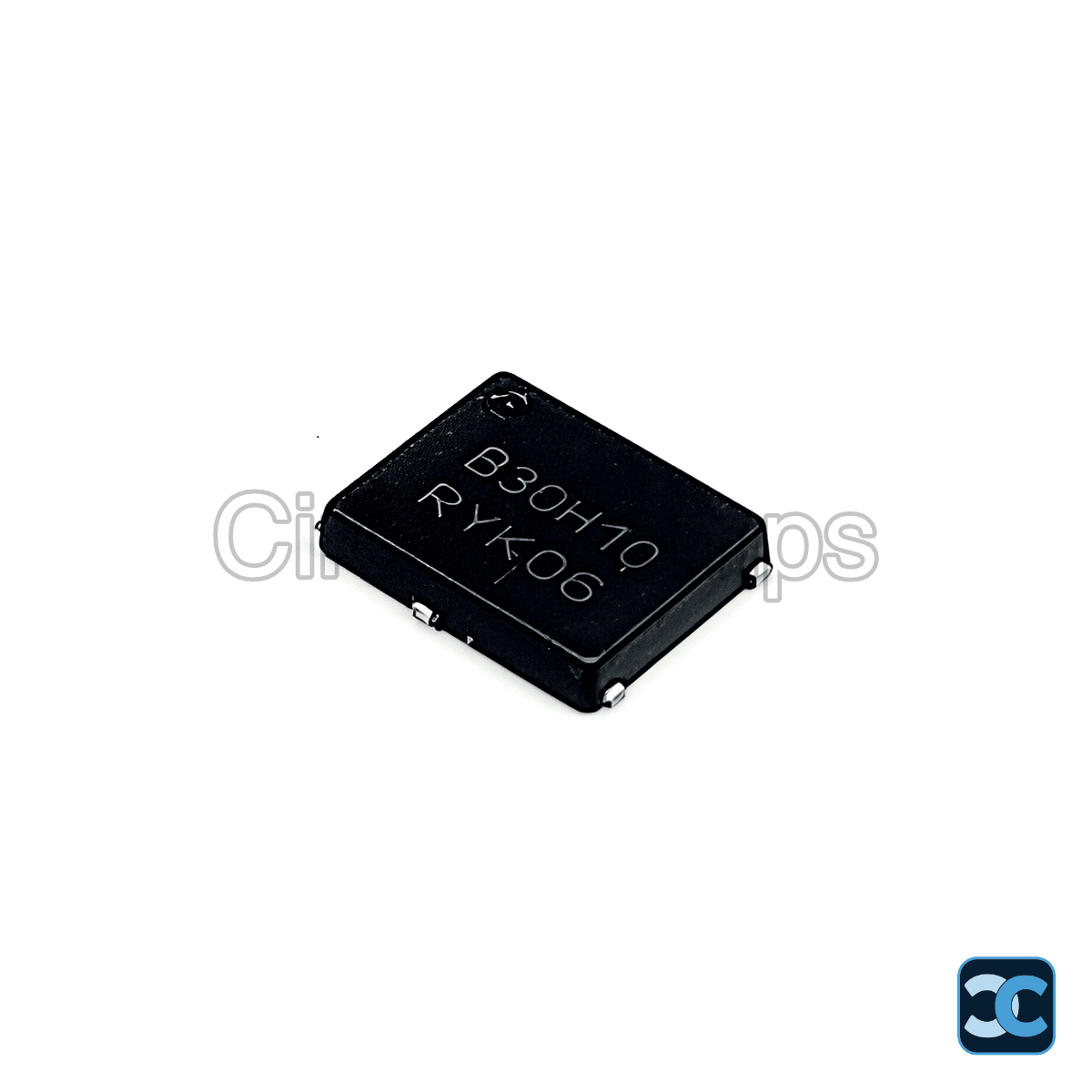

• Marking: B30H10
• MPN: NRVB30H100MFST1G
• LCSC Part #: C900221
• Package / Case: DFN-5 (5×6) Surface Mount
• Diode Configuration: 1 Independent
• Diode Type: Schottky Barrier Rectifier
• Max. DC Reverse Voltage (Vr): 100 V
• Rectified Current (Io): 30 A
• Forward Voltage (Vf @ If): 810 mV @ 30 A
• Reverse Leakage (Ir @ Vr): 5 µA @ 100 V
• Non-Repetitive Peak Surge Current: 300 A
• Operating Junction Temperature: −55°C to +175°C

Package Includes

• 1 x NRVB30H100MFST1G Schottky Barrier Rectifier (onsemi, DFN-5)

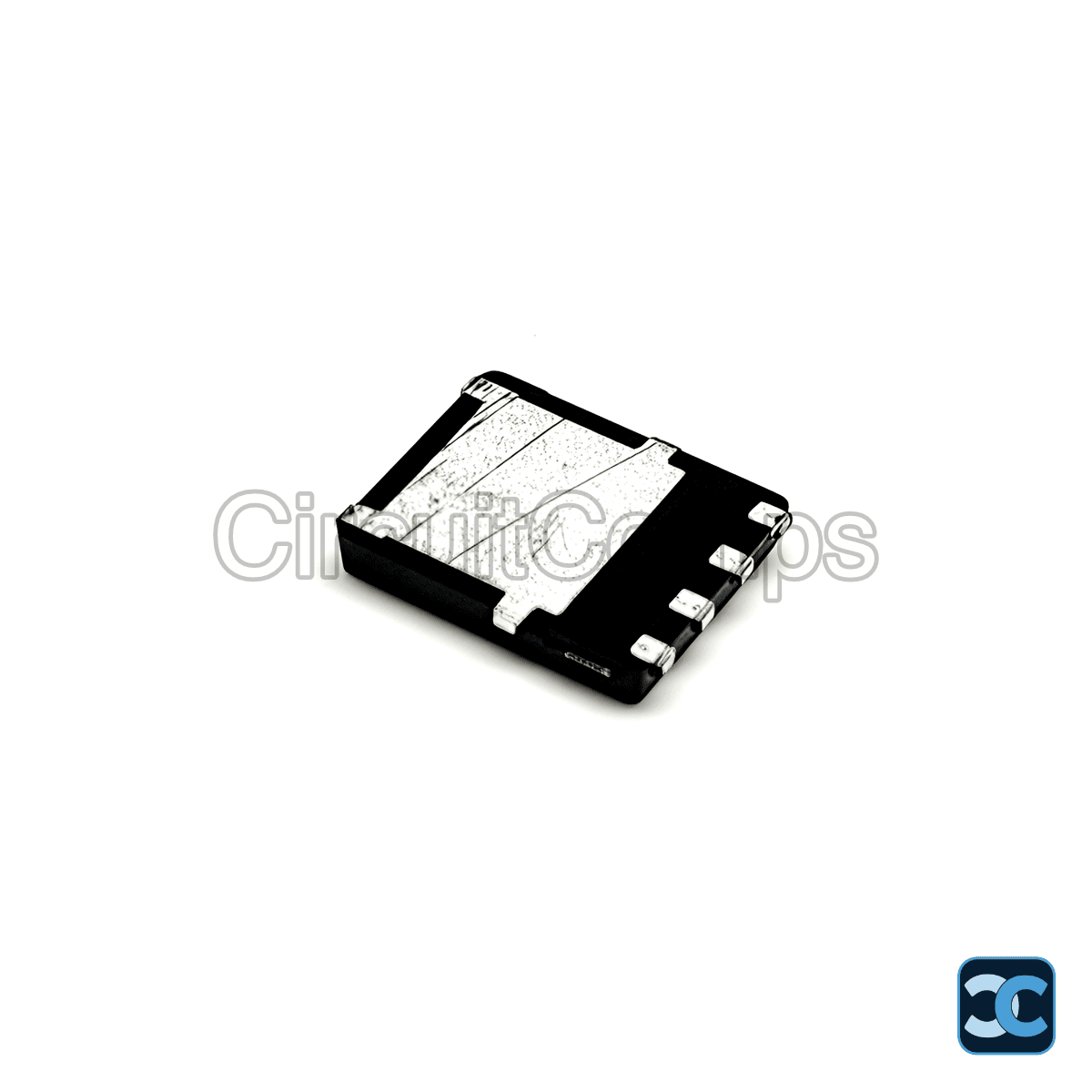

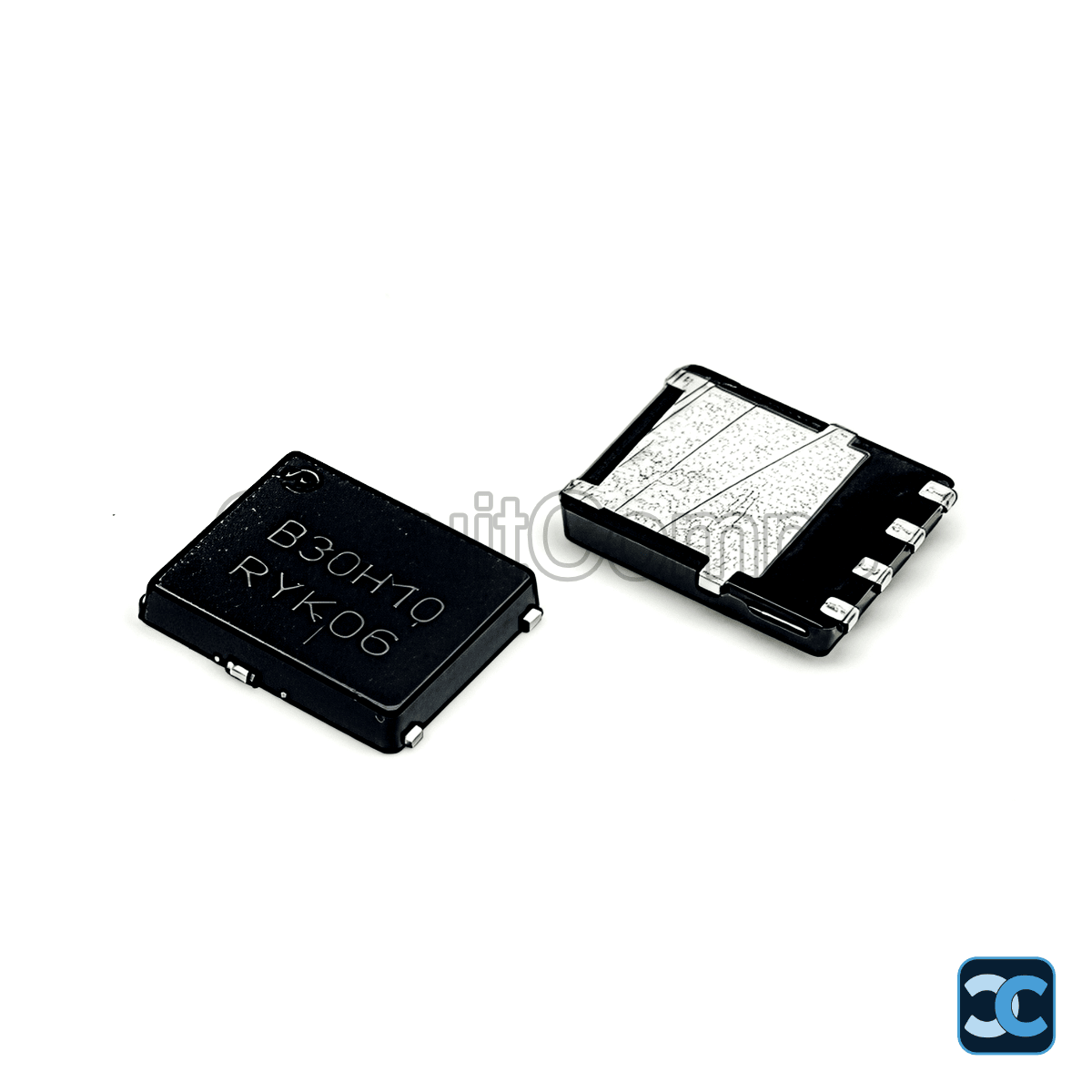

Note: Image is for representation purpose only.
