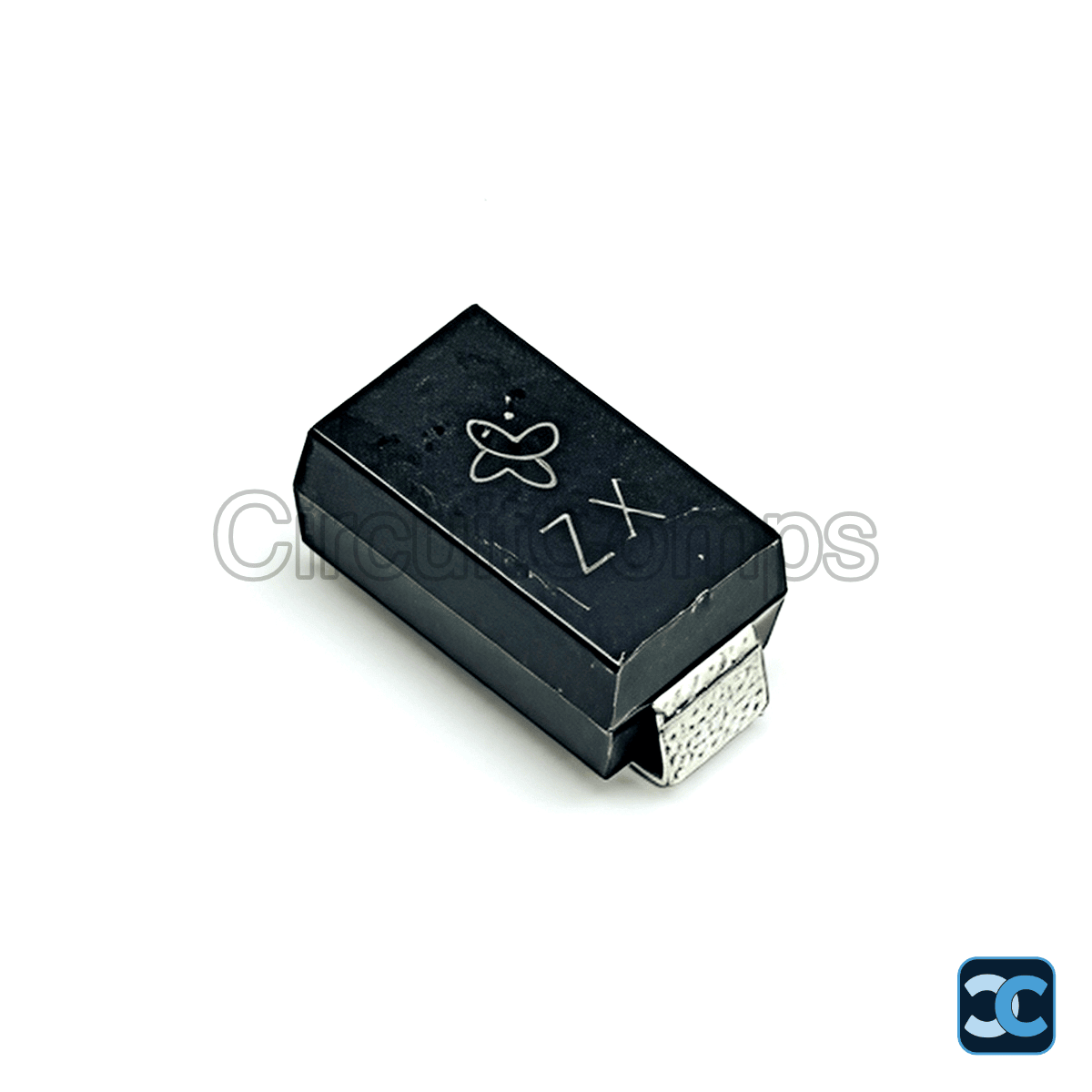

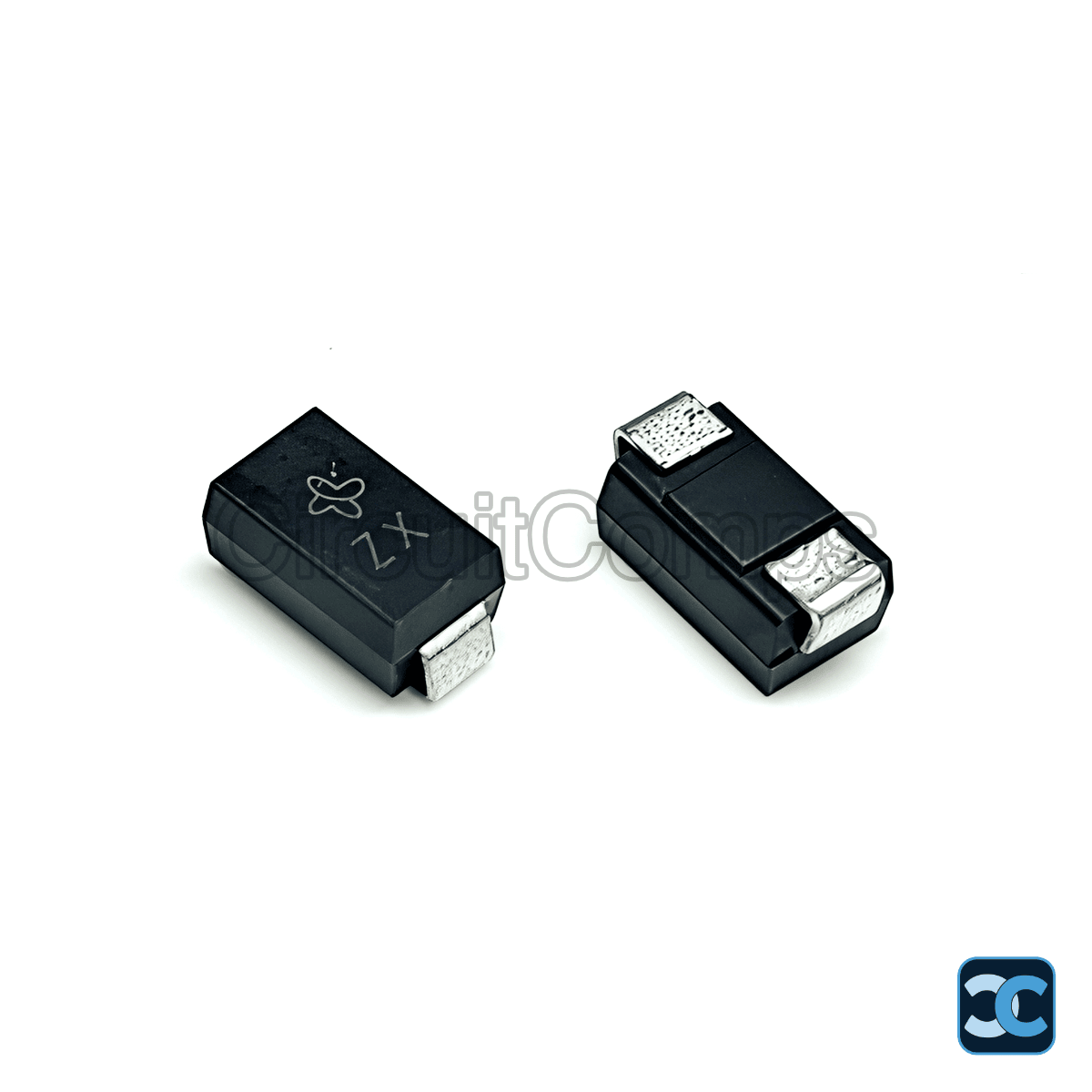

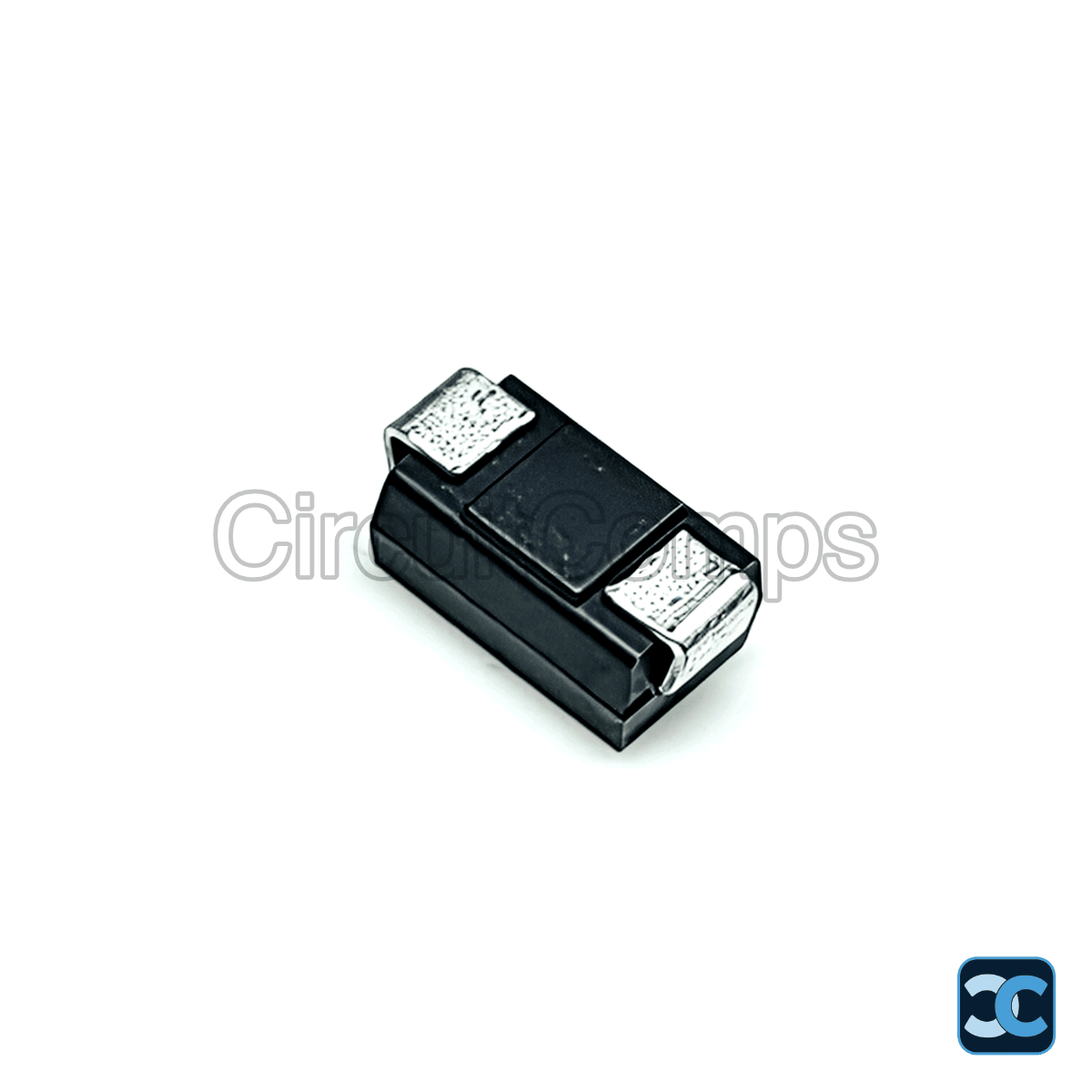

SMBJ24CA 24V Bidirectional TVS Diode – SMB (DO-214AA)

Product Description:
The SMBJ24CA TVS Diode is a bidirectional transient voltage suppressor designed to protect 24V electronic circuits from damaging voltage spikes, ESD events, inductive load switching, and lightning-induced transients. With a reverse stand-off voltage of 24V, a breakdown voltage up to 29.5V, and a clamping voltage of 38.9V, it provides strong, reliable surge protection for sensitive components.

Engineered with a fast response time (<1 ps) and capable of handling 15.4A peak pulse current, the SMBJ24CA ensures effective transient suppression in demanding industrial, automotive, and communication applications. Its compact SMB (DO-214AA) package allows for efficient PCB space usage and supports automated surface-mount assembly.

Key Specifications:

• Type: Bidirectional TVS Diode

• Reverse Stand-Off Voltage (VWM): 24V

• Breakdown Voltage (VBR): up to 29.5V

• Clamping Voltage (VC): 38.9V

• Peak Pulse Current (IPP): 15.4A

• Reverse Leakage Current: ≤5µA

• Response Time: <1 ps

• Package: SMB (DO-214AA)

• Weight: 0.25g

Features:

• Excellent surge and overvoltage clamping

• Ultra-fast transient response

• High-temperature soldering capability (260°C for 10 seconds)

• Built-in strain relief for durability

• Suitable for automated SMT processes

• Low-profile industry-standard packaging

Applications:

• Protection for 24V supply rails

• Sensitive IC and MOSFET protection

• Automotive and industrial electronics

• Communication and sensor line protection

• General-purpose transient suppression

Package Includes:
1 × SMBJ24CA Bidirectional TVS Diode (SMB Package)

Note: Image is for representation purpose only.
